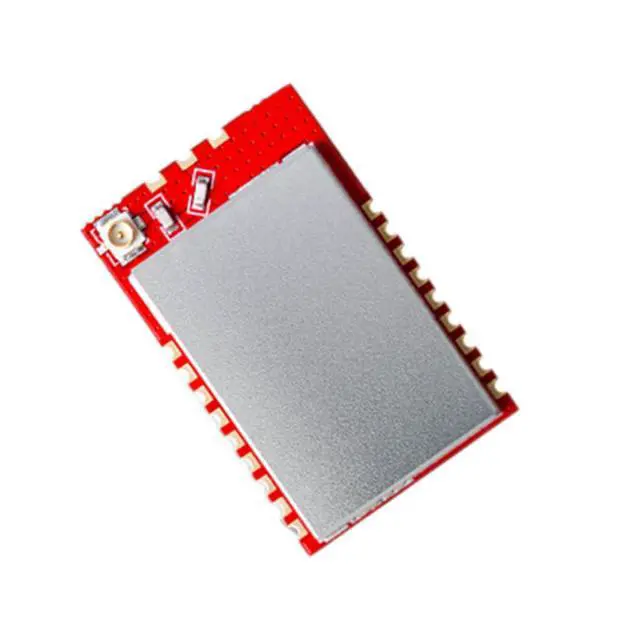

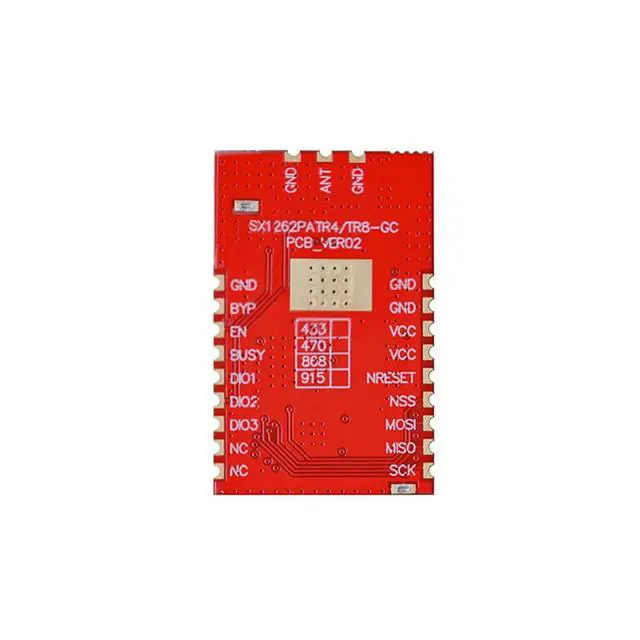

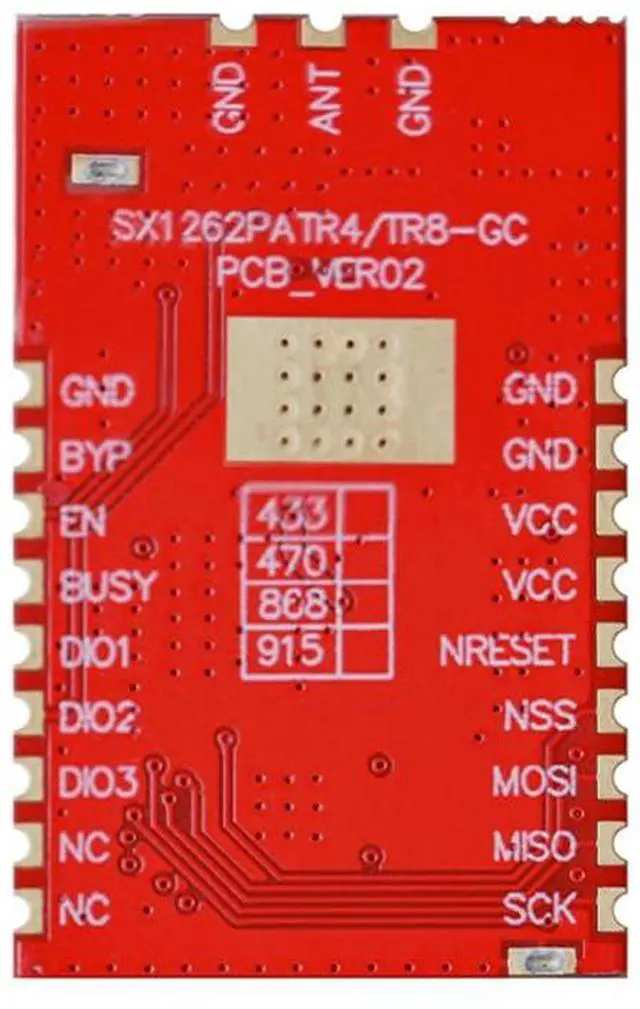

1W High Power SX1262PA+LNA LoRa Module 868MHz High Sensitivity Wireless Communication Module with SPI Interface (Module Only)
- High power LoRa communication module, 8000m long range transmission,?1W high power (PA+LNA), 868 band, -139dBm high sensitivity, SPI interface.; Dual antenna interface options, new products ah IO have been led out,?development is more convenient. PA chip: built-in PA/LNA chip.; Shield cover design: the module has been added shielding cover without?fear of complex industrial environment.; LoRa modulation, stronger anti-jamming ability and longer communication distance. LoRa series are all compatible with each other for communication.; Multiple power supply options: DCDC mode - reduce power consumption,?LDO mode - improve sensitivity. Measured communication distance up to 8000m.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
1W High Power SX1262PA+LNA LoRa Module 868MHz High Sensitivity Wireless Communication Module with SPI
Interface Feature: High power LoRa communication module, 8000m long range transmission, 1W high power (PA+LNA), 868 band, -139dBm high sensitivity, SPI interface. Support global licence-free ISM band 868MHz (862-960MHz). Industrial grade 1W high power amplifier chip, internal integrated PA+LNA. Dual antenna interface options, new products ah IO have been led out, development is more convenient.
Dual antenna interface: the module provides external antenna interface to release the maximum power.
PA chip: built-in PA/LNA chip.

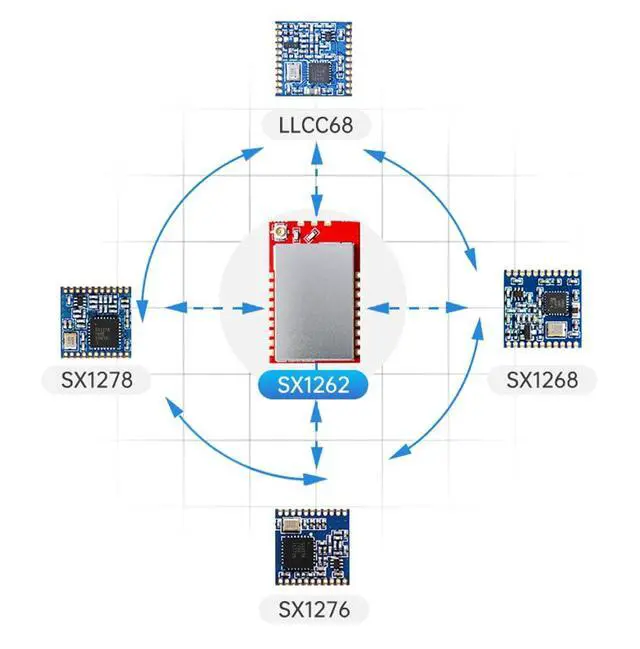

Shield cover design: the module has been added shielding cover without fear of complex industrial environment. LoRa modulation, stronger anti-jamming ability and longer communication distance. LoRa series are all compatible with each other for communication.

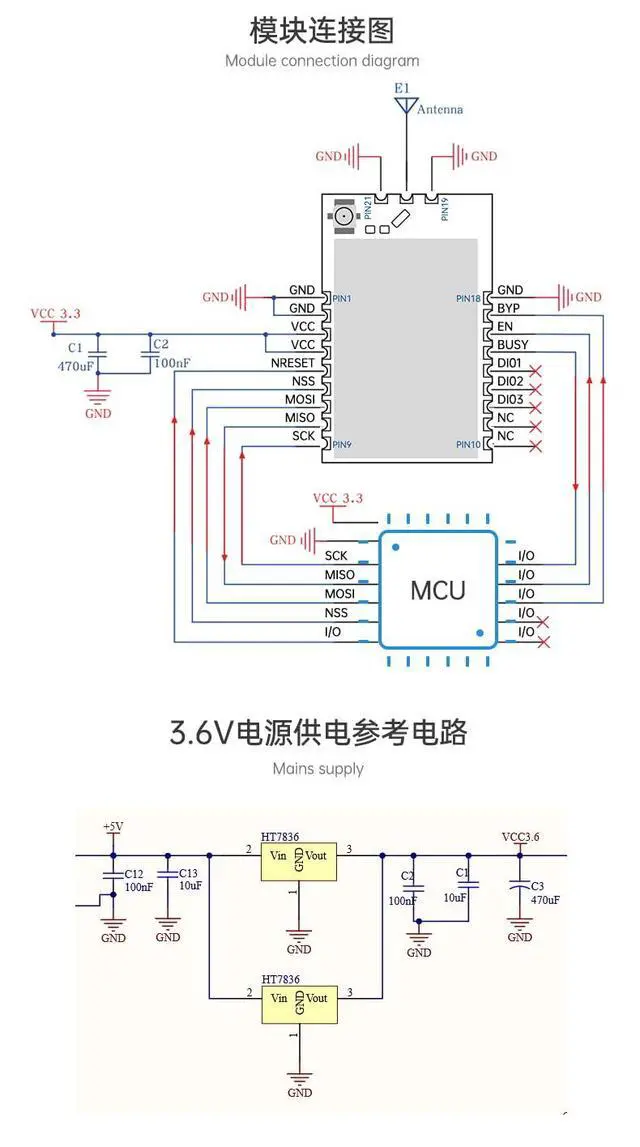

Multiple power supply options: DCDC mode - reduce power consumption, LDO mode - improve sensitivity. Measured communication distance up to 8000m.
Parameters: Chip
programme: SX1262
Operating frequency band: 862-960MHz
Maximum output power: 30dBm
Receiving sensitivity: -139dBm (@250bps)
Transmit current: 615mA
Receiving current: 9mA
Sleep current: ¡Ü2uA
Typical supply voltage: 3.6V
Reference distance: 8KM
Communication interface: SPI
Antenna interface: IPEX antenna mount/external antenna
Size: 29.6 * 18.7 * 3.1 mm.
Interface Feature: High power LoRa communication module, 8000m long range transmission, 1W high power (PA+LNA), 868 band, -139dBm high sensitivity, SPI interface. Support global licence-free ISM band 868MHz (862-960MHz). Industrial grade 1W high power amplifier chip, internal integrated PA+LNA. Dual antenna interface options, new products ah IO have been led out, development is more convenient.
Dual antenna interface: the module provides external antenna interface to release the maximum power.
PA chip: built-in PA/LNA chip.
Shield cover design: the module has been added shielding cover without fear of complex industrial environment. LoRa modulation, stronger anti-jamming ability and longer communication distance. LoRa series are all compatible with each other for communication.
Multiple power supply options: DCDC mode - reduce power consumption, LDO mode - improve sensitivity. Measured communication distance up to 8000m.
Parameters: Chip
programme: SX1262
Operating frequency band: 862-960MHz
Maximum output power: 30dBm
Receiving sensitivity: -139dBm (@250bps)
Transmit current: 615mA
Receiving current: 9mA
Sleep current: ¡Ü2uA
Typical supply voltage: 3.6V
Reference distance: 8KM
Communication interface: SPI
Antenna interface: IPEX antenna mount/external antenna
Size: 29.6 * 18.7 * 3.1 mm.
