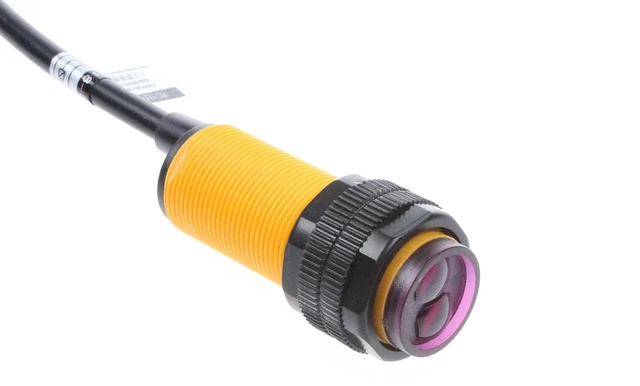

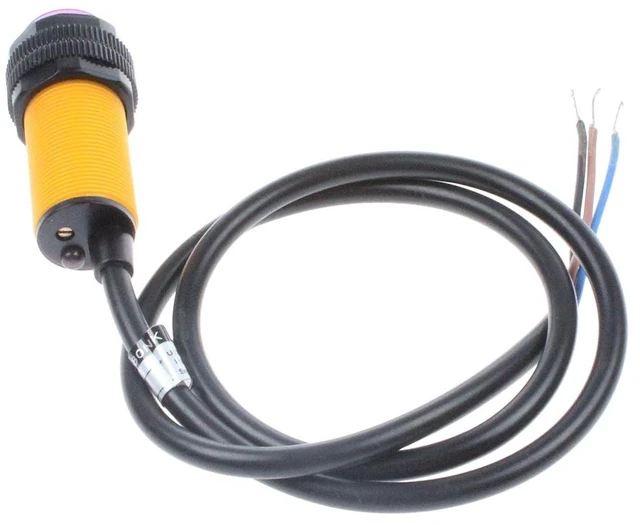

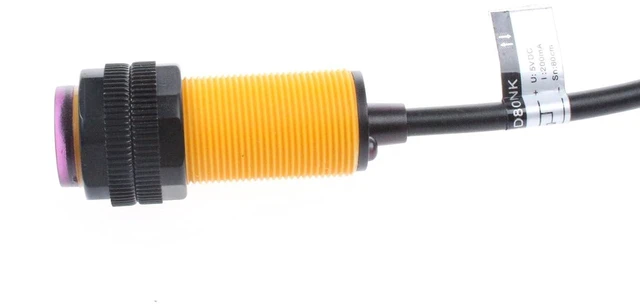

E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor 5V Switch Detect 3-80cm
Limited time offer, ends 09/06 By StarVelocity Technology
- E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor. A detection distance can be adjusted according to the requirements 3-80CM.; The sensor has a detection distance, visible interference by small, easy to assemble, easy to use; U: 5VDC , I: 100mA, Sn: 3-80CM.; The output current DC / SCR / Relay Control output: 100mA / 5V power supply .; Current consumption DC <25mA, Response time <2ms.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Model: E18-D80NK.
Parameters: 1, The output current DC / SCR /
Relay Control output: 100mA / 5V power supply 2, Current consumption DC <25mA 3, Response time <2ms 4, Point
angle: 15 °, adjustable effective distance 3-80CM 5, Detect
objects: transparent or opaque 6, Working
environment temperature: -25 ~ + 55 7,
Standard sensing object: sunlight 10000LX less incandescent 3000LX the following 8,
Case Material: Plastic
Electrical Characteristics:
U: 5VDC
I: 100mA
Sn: 3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Cable Length: 45CM Weight 20 g
Package Included: 1pcs E18-D80NK Detection Sensor
Parameters: 1, The output current DC / SCR /
Relay Control output: 100mA / 5V power supply 2, Current consumption DC <25mA 3, Response time <2ms 4, Point
angle: 15 °, adjustable effective distance 3-80CM 5, Detect
objects: transparent or opaque 6, Working
environment temperature: -25 ~ + 55 7,
Standard sensing object: sunlight 10000LX less incandescent 3000LX the following 8,
Case Material: Plastic
Electrical Characteristics:
U: 5VDC
I: 100mA
Sn: 3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Cable Length: 45CM Weight 20 g
Package Included: 1pcs E18-D80NK Detection Sensor
