Digital Temperature Controller Module -58 to +257 Temperature Control Switch NTC Waterproof Sensor Probe - Green LED Display Suitable for kinds of temperature control system (24V)
Limited time offer, ends 09/06 By StarVelocity Technology

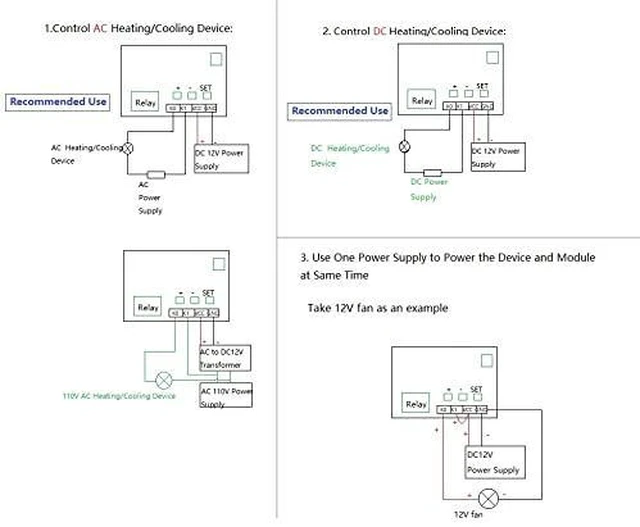

- Upgrade Fahrenheit temperature display . Green LED display, Precise temperature control, high sensitivity, suitable for kinds of temperature control system.; Temperature range:-58 to + 257 ; Temperature measurement accuracy: 1 ; Measuring input: 1 meter NTC (10K 0.5%) waterproof metal sensors.; Relay Load: DC 14V 20A / AC 125V 20A.[The maximum load that can be controlled by the relay connected between K0 and K1.]; Thermostat working voltage: DC24V [Connect to VCC, GND to power the thermostat module.]With 5V / 12V / 24 to Choose from.; [Please read the product wiring diagram and instructions for use on the left before buying, please contact us if you need help.]
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Name: High-precision Digital Temperature Control Moudle. Green LED display.
The display font color: Green.
Temperature range: -58 to +
257.
Resolution: temperature range - 3.9 ~ 99.9 is 0.1, the other temperature ranges is 1.
Temperature measurement accuracy: 1.
Backlash accuracy: 0.1.
Refresh rate: about 0.5S.
Relay Load: DC 14V 20A / AC 125V 20A. [The maximum load that can be controlled by the relay connected between K0 and K1.
] Thermostat working voltage: DC24V [Connect to VCC, GND to power the thermostat module. ]With 5V / 12V / 24 to Choose from.
Measuring input: 1 meter long NTC (10K 0.5 %) waterproof metal sensors.
Module working environment temperature requirements: 14 - 140
Module working environment humidity requirements: RH% 20% to 75%.
Size: 46 * 40 * 16mm (L * W * H).
Weight: 30g.
Package Included: 1pcs Digital Temperature Controller Module
The display font color: Green.
Temperature range: -58 to +
257.
Resolution: temperature range - 3.9 ~ 99.9 is 0.1, the other temperature ranges is 1.
Temperature measurement accuracy: 1.
Backlash accuracy: 0.1.
Refresh rate: about 0.5S.
Relay Load: DC 14V 20A / AC 125V 20A. [The maximum load that can be controlled by the relay connected between K0 and K1.
] Thermostat working voltage: DC24V [Connect to VCC, GND to power the thermostat module. ]With 5V / 12V / 24 to Choose from.
Measuring input: 1 meter long NTC (10K 0.5 %) waterproof metal sensors.
Module working environment temperature requirements: 14 - 140
Module working environment humidity requirements: RH% 20% to 75%.
Size: 46 * 40 * 16mm (L * W * H).
Weight: 30g.
Package Included: 1pcs Digital Temperature Controller Module
