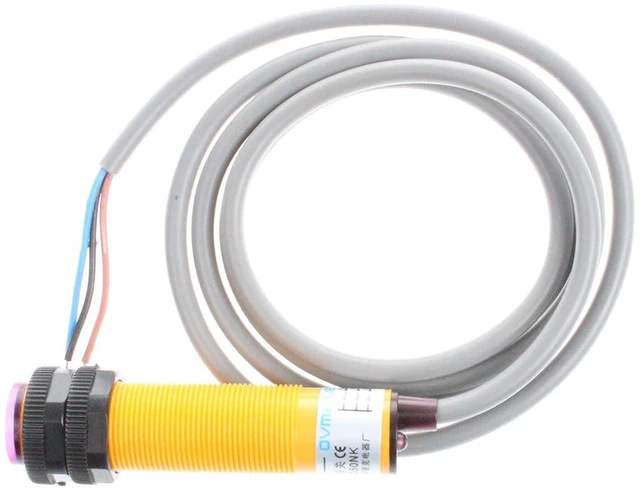

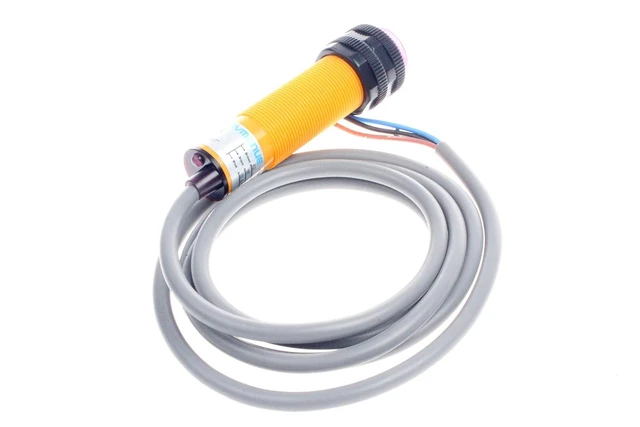

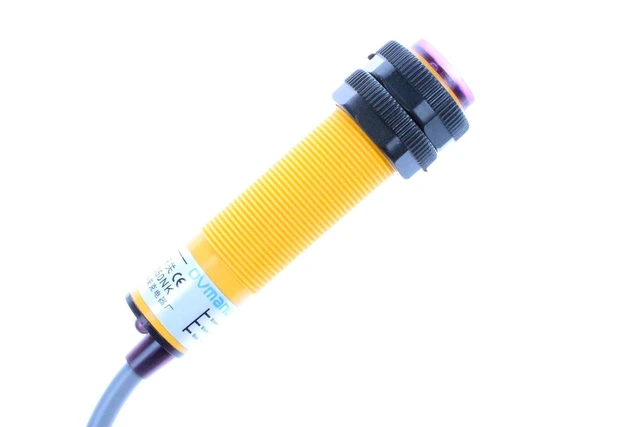

E18-D50NK Diffuse Reflection Infrared Obstacle Avoidance Sensor Induction Distance 0-50cm Adjustable 6-36V Proximity Sensors - NPN NO

Description This is a photoelectric sensor that integrates transmission and reception. The detection distance can be adjusted as required. The sensor has the characteristics of long detection distance, small interference from visible light, easy assembly and convenient use.
Parameter Induction type: diffuse reflection;
Induction distance: 0-50cm adjustable;

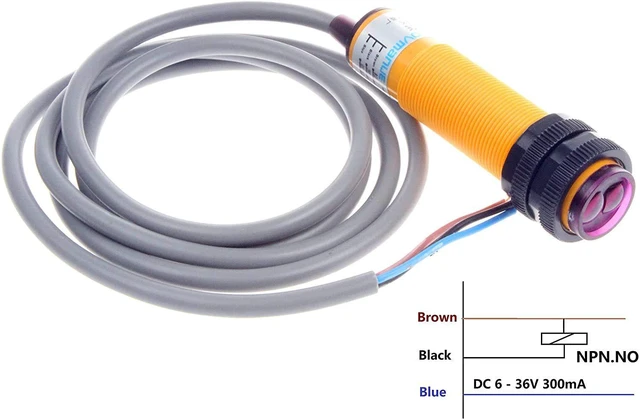

Working voltage: 6-36V can be; Brown - positive, blue - negative black - data
U: 5VDC
I: 100mA
Sn: 3-50CM
Working environment: temperature -40 to +70 degrees Celsius;
Protection level: IP61-IP67;
Corresponding time: the function reset time is below 2.5MS;
Detecting objects: transparent, opaque;
Differential distance: the detection distance is below 20%;
Insulation resistance: 20M ohms or more;
Note:
1. When the switch is connected to the power supply, check whether the wiring is correct and check whether the voltage parameter is rated.
2. The switching load cannot be short-circuited, and the power supply in the load should not exceed the maximum output current;
Package Included: 1pcs E18-D50NK Diffuse Reflection Infrared Obstacle Avoidance Sensor
