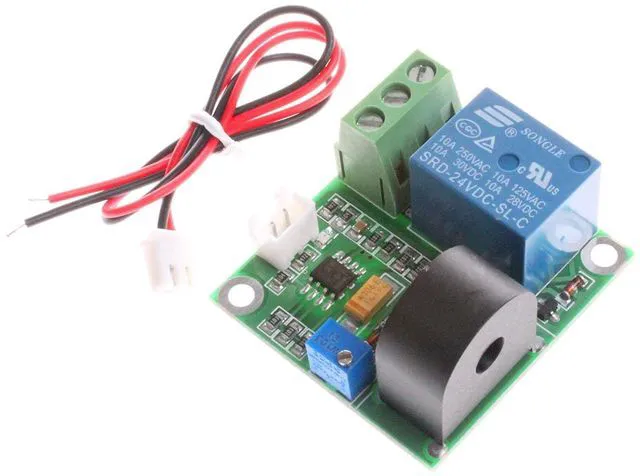

0-5A AC Current Detection Sensor Module Switch Output (DC 24V, Green)
- Current detection range: AC 0-5A.; Operating voltage: DC 5V / 12V / 24V ± 0.2V. (Select the corresponding version of the product according to your needs).; Output mode: relay switching output.; Relay load: AC 250V 10A Max , DC 30V 10A Max.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Parameter: Product
Name: 0-5A AC Current Detection Sensor Module
Output mode: relay switching output.
Relay load: AC 250V 10A Max, DC 30V 10A Max.
Operating voltage: DC 5V / 12V / 24V ± 0.2V. (Select the corresponding version of the product according to your needs).
Working current: <10mA.
Response time: <50ms.
Induction sensitivity: Potentiometer is adjustable. The overcurrent signal setting is adjustable and the resolution is set to 0.3A.
The main chip: op amp, transformer. The current detection resolution can be changed by the resistance parameter setting. With fixed mounting holes.
The main chip: op amp, transformer.
Module size: 48x40x30mm (length x width x height).
Working temperature: -10 - +50 °C.
Working humidity: 5-95% RH.
Application: Intelligent trolley motor over-current detection, motor stall protection current detection, short-circuit protection detection, etc.
Package Included: 1pcs 0-5A AC Current Detection Sensor Module
Name: 0-5A AC Current Detection Sensor Module
Output mode: relay switching output.
Relay load: AC 250V 10A Max, DC 30V 10A Max.
Operating voltage: DC 5V / 12V / 24V ± 0.2V. (Select the corresponding version of the product according to your needs).
Working current: <10mA.
Response time: <50ms.
Induction sensitivity: Potentiometer is adjustable. The overcurrent signal setting is adjustable and the resolution is set to 0.3A.
The main chip: op amp, transformer. The current detection resolution can be changed by the resistance parameter setting. With fixed mounting holes.
The main chip: op amp, transformer.
Module size: 48x40x30mm (length x width x height).
Working temperature: -10 - +50 °C.
Working humidity: 5-95% RH.
Application: Intelligent trolley motor over-current detection, motor stall protection current detection, short-circuit protection detection, etc.
Package Included: 1pcs 0-5A AC Current Detection Sensor Module
