$17.28
Ships from China.
Sold by StarVelocity Technology
Shipped by StarVelocity Technology
Meet Your Seller

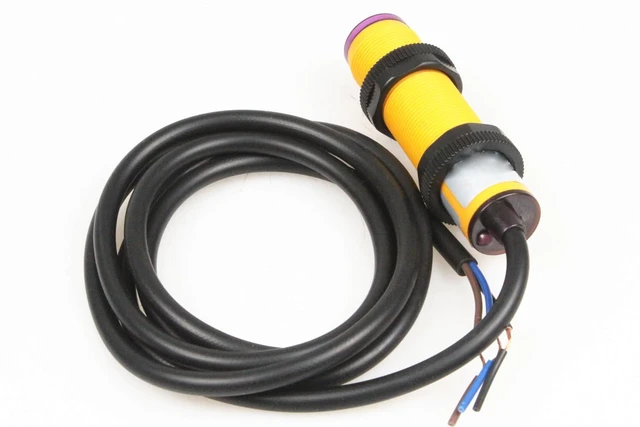

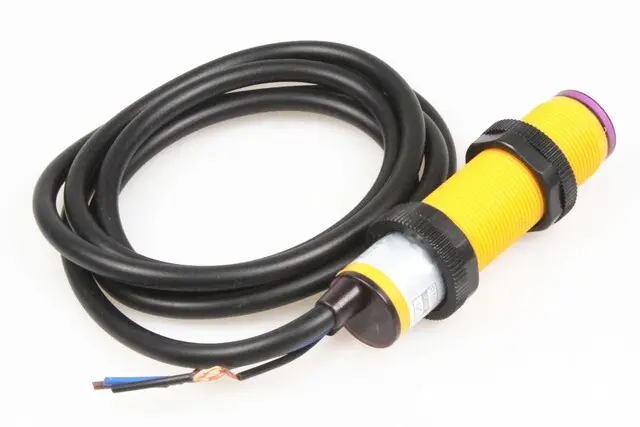

E3F-DS10P1 Proximity Switch Photoelectric Sensor Switch 10 cm Detection Distance Diffuse Reflection Infrared Switch DC 6-36V 3-Wire PNP NO
- E3F series photoelectric switches are displacement sensors with switching output. It can detect the displacement of various non-totally transparent and opaque objects.; This series of switches is a position switch that can be operated without direct contact with a moving object. When an object approaches the sensing surface of the switch to the actuation distance, the switch can be activated without contact and without applying any pressure to drive a direct electric appliance or to provide control instructions to a PLC device. It can be used in automatic control system as limit, counting, positioning control and automatic protection.; Please check the third picture for product size specifications.; Wire description: brown - power positive; blue - power negative; black - signal output. Wire length 1.2 meters / about 3.9 feet; Sensing distance: 10 cm Non-adjustable, Working voltage: DC 6-36V.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Model: E3F-DS10P1
Triode form: PNP
Action state: NO
Working voltage: DC 6-36V.
Reflection form: diffuse reflection type.
Wire description: brown - power positive; blue - power negative; black - signal output.
Sensing distance: 10 cm Non-adjustable
Standard detection object: 2mm or more non-transparent objects.
Diffusion angle: cast light angle 3-5 degrees.
Static current: 20mA-35mA.
Connection: wire lead, wire length 1.2 meters / about 3.9 feet.
Maximum output current: 300mA.
LED indicator status: red light is on when power on.
Light source (wavelength): 950
Circuit protection: reverse connection protection, short circuit protection, surge protection.
Sensitivity Adjustment: Tail knob adjustment. (Clockwise adjustment, the detection distance becomes farther; counterclockwise adjustment, the detection distance becomes closer).
Use of environmental illumination: by the light surface illumination and other effects of distance attenuation. (incandescent lamp 300 lx below, sunlight 11000lx below).
Operating ambient temperature: - 13F ~ 176F.
Storage ambient temperature: -40F ~ 176F.
Operating Humidity Range: 35 ~ 80%.
Storage Humidity Positioning: 35 95%.
Insulation Resistance: 20M.
Vibration: 10 ~ 55Hz double amplitude, 1.5 mm X, Y, Z each direction 2H.
Protection structure: IEC specification IP65.
Material: Shell-ABS plastic, Lens-PMMA.
Size: 68x21x21mm (length 68mm, diameter 21mm cylinder).
Weight: 54 grams / 0.12 lbs
Packsge Included: 1pcs E3F-DS10P1 Proximity Switch Photoelectric Sensor Switch
Triode form: PNP
Action state: NO
Working voltage: DC 6-36V.
Reflection form: diffuse reflection type.
Wire description: brown - power positive; blue - power negative; black - signal output.
Sensing distance: 10 cm Non-adjustable
Standard detection object: 2mm or more non-transparent objects.
Diffusion angle: cast light angle 3-5 degrees.
Static current: 20mA-35mA.
Connection: wire lead, wire length 1.2 meters / about 3.9 feet.
Maximum output current: 300mA.
LED indicator status: red light is on when power on.
Light source (wavelength): 950
Circuit protection: reverse connection protection, short circuit protection, surge protection.
Sensitivity Adjustment: Tail knob adjustment. (Clockwise adjustment, the detection distance becomes farther; counterclockwise adjustment, the detection distance becomes closer).
Use of environmental illumination: by the light surface illumination and other effects of distance attenuation. (incandescent lamp 300 lx below, sunlight 11000lx below).
Operating ambient temperature: - 13F ~ 176F.
Storage ambient temperature: -40F ~ 176F.
Operating Humidity Range: 35 ~ 80%.
Storage Humidity Positioning: 35 95%.
Insulation Resistance: 20M.
Vibration: 10 ~ 55Hz double amplitude, 1.5 mm X, Y, Z each direction 2H.
Protection structure: IEC specification IP65.
Material: Shell-ABS plastic, Lens-PMMA.
Size: 68x21x21mm (length 68mm, diameter 21mm cylinder).
Weight: 54 grams / 0.12 lbs
Packsge Included: 1pcs E3F-DS10P1 Proximity Switch Photoelectric Sensor Switch
