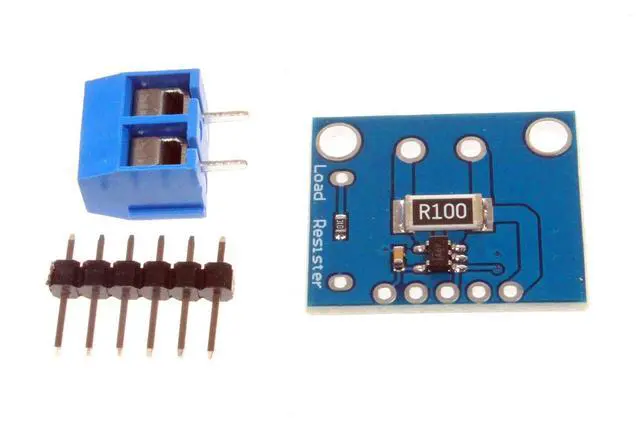

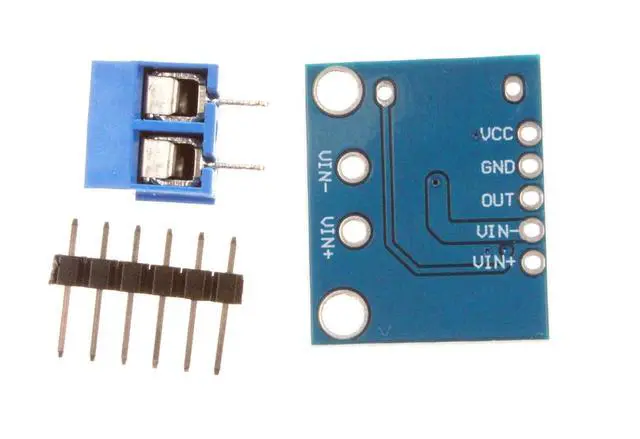

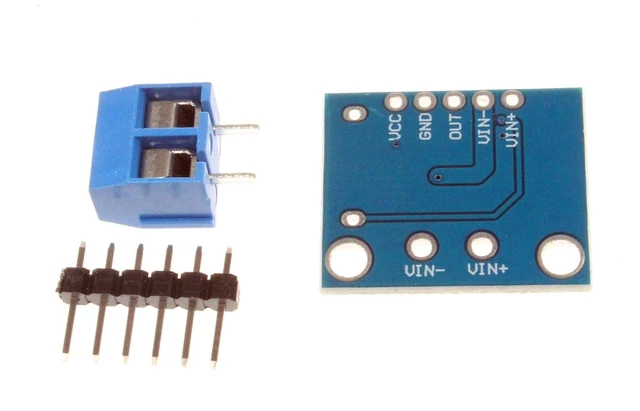

Analog Current Sensor Module INA169 2.7V to 60V DC Current Sensor Breakout Module

INA169 Example, Schematic, Document
https: //1drv. ms/u/c/4a0865b22350d05c/IQBc0FAjsmUIIIBKrwAAAAAAAXQ6D89WXBSGpiAm3D-3B3w? e=BhIjpI DESCRIPTION The INA169 is high-side, unipolar, current shunt monitors. Wide input common-mode voltage range, high-speed, low quiescent current, and tiny SOT23 packaging enable use in a variety of applications. Input common-mode and power-supply voltages are separated and can range from 2.7V to 40V for the INA139 and 2.7V to 60V for the INA169. Quiescent current is only 60A, which permits connecting the power supply to either side of the current measurement shunt with minimal error. The device converts a differential input voltage to a current output. This current is converted back to a voltage with an external load resistor that sets any gain from 1 to over 100. Although designed for current shunt measurement, the circuit invites creative applications in measurement and level shifting. Features Complete unipolar high-side Current measurement circuit Wide supply and common-mode range INA 169: 2. 7v to 60v Separate supply and input commonmode voltages Single resistor gain set Low quiescent current (60a typ)
Package Included: 1Pcs INA169 High-Precision 2.7V to 60V Analog Current Sensor Module
