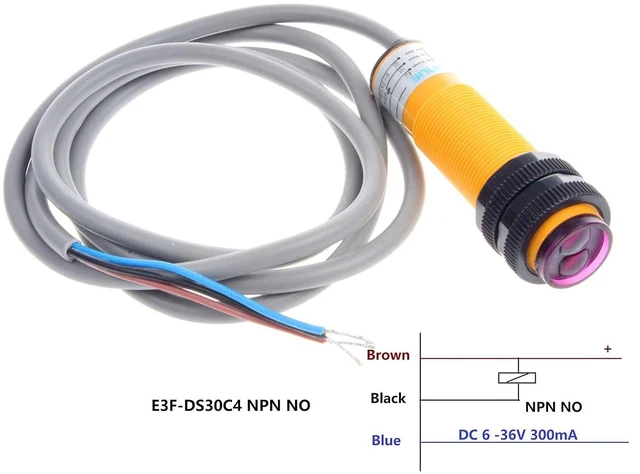

E3F-DS30C4 Diffuse Reflection Infrared Obstacle Avoidance Sensor Induction Distance 30cm Adjustable 6-36V Proximity Switch Proximity Sensors - NPN NO
Limited time offer, ends 09/06 By StarVelocity Technology
- Induction type: diffuse reflection;; Induction distance: 30cm adjustable;; Working voltage: 6-36V 300mA;; Brown wire - positive, blue wire - negative , black wire - data; There are two models of this product: E3F-DS30C4 NPN NO; E3F-DS30P1 PNP NO, please choose according to your needs.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Parameter: Induction
type: diffuse reflection;
Induction distance: 30cm adjustable;
Working voltage: 6-36V 300mA; Brown- positive, blue - negative, black - data
Working environment: temperature -40 to +70 degrees Celsius;
Protection level: IP61-IP67;
Corresponding time: the function reset time is below 2.5MS;
Detecting objects: transparent, opaque;
Differential distance: the detection distance is below 20%;
Insulation resistance: 20M ohms or more;
Precautions:
1. When the switch is connected to the power supply, check whether the wiring is correct and check whether the voltage parameter is rated.
2. The switching load cannot be short-circuited, and the power supply in the load should not exceed the maximum output current;
Package Included: 1Pcs E3F-DS30C4 Diffuse Reflection Infrared Obstacle Avoidance Sensor
type: diffuse reflection;
Induction distance: 30cm adjustable;
Working voltage: 6-36V 300mA; Brown- positive, blue - negative, black - data
Working environment: temperature -40 to +70 degrees Celsius;
Protection level: IP61-IP67;
Corresponding time: the function reset time is below 2.5MS;
Detecting objects: transparent, opaque;
Differential distance: the detection distance is below 20%;
Insulation resistance: 20M ohms or more;
Precautions:
1. When the switch is connected to the power supply, check whether the wiring is correct and check whether the voltage parameter is rated.
2. The switching load cannot be short-circuited, and the power supply in the load should not exceed the maximum output current;
Package Included: 1Pcs E3F-DS30C4 Diffuse Reflection Infrared Obstacle Avoidance Sensor
