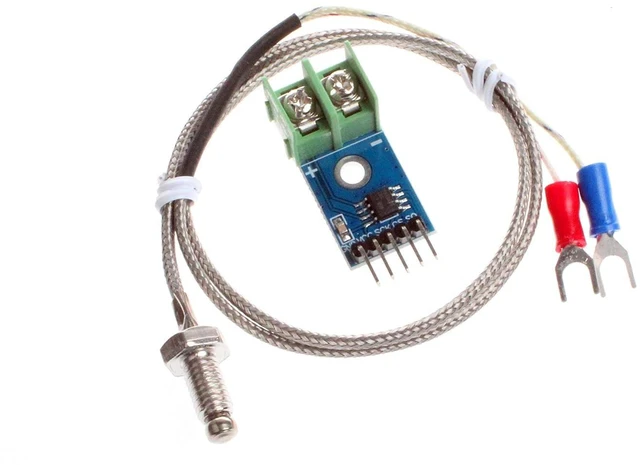

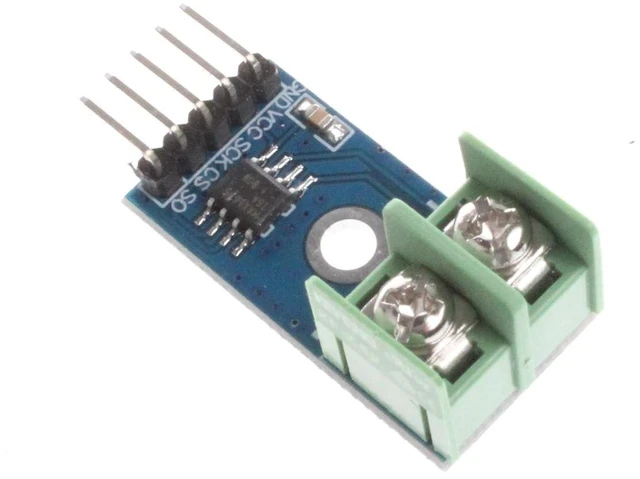

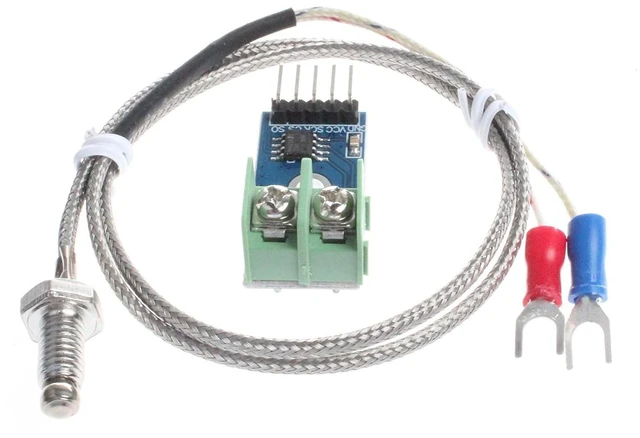

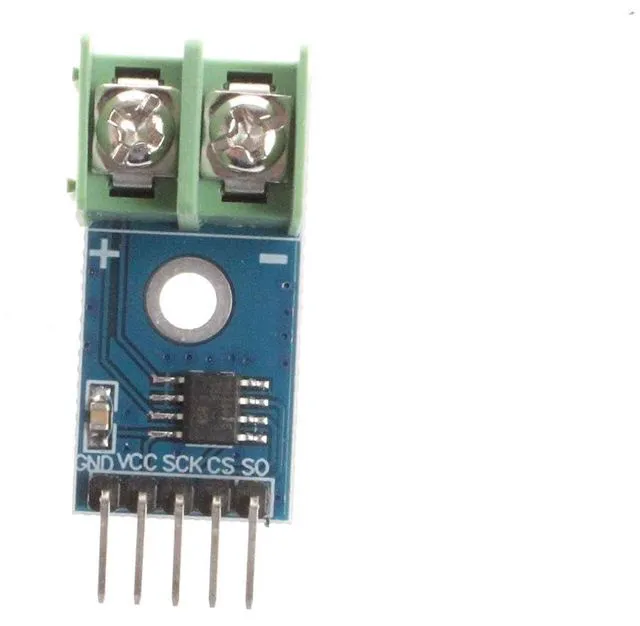

MAX6675 Module K-Type Thermocouple Temperature Sensor Thermocouple Sensor Set M6 Screw Test Temperature Range 0-1024 3.3-5V
Limited time offer, ends 09/06 By StarVelocity Technology
- Test Temperature Range: 0-1024, the converter temperature resolution is 0.25.; Operating Voltage Range: 3.0-5.5V; Operating Current: 50mA; Operating Temperature Range: -20-85.; Interface: SPI; Module Size: 15mm * 28mm, with a 3mm diameter screw holes
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description:
Interface: SPI Test
Temperature Range: 0-1024, the converter temperature resolution is 0.25.
Operating Voltage Range: 3.0 -C 5.5V
Operating Current: 50mA
Operating Temperature Range: -20-85.
Module Size: 15mm * 28mm, with a 3mm diameter screw holes K type thermocouple junction location, use 301 ordinary terminals
Application: Industrial, Appliances, HVAC

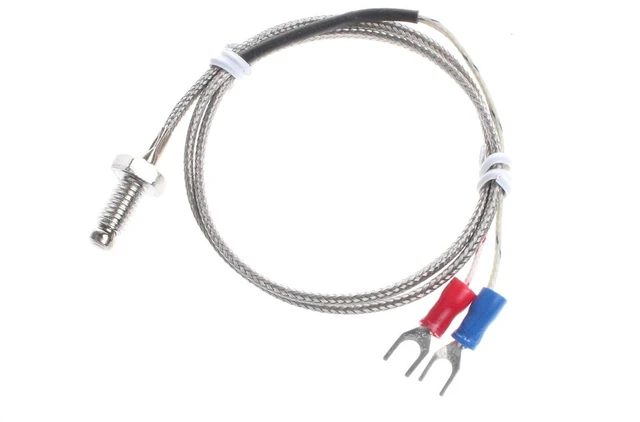

Package Included: 1pcsMAX6675 Module 1pcs K-Type Thermocouple Thermocouple Sensor
Interface: SPI Test
Temperature Range: 0-1024, the converter temperature resolution is 0.25.
Operating Voltage Range: 3.0 -C 5.5V
Operating Current: 50mA
Operating Temperature Range: -20-85.
Module Size: 15mm * 28mm, with a 3mm diameter screw holes K type thermocouple junction location, use 301 ordinary terminals
Application: Industrial, Appliances, HVAC
Package Included: 1pcsMAX6675 Module 1pcs K-Type Thermocouple Thermocouple Sensor
