1pc 24G Human Presence Radar R24AVD1, Millimeter-Wave Motion Detection, 13m Range, 5V Power, Top Mount with JU01 Adapter Board
- MILLIMETER-WAVE RADAR TECHNOLOGY: 24GHz FMCW radar module detects human presence and motion with high accuracy up to 42.65 feet for moving targets and 16.4 feet for stationary detection.
- ADVANCED DETECTION CAPABILITIES: 1T1R signal processing mechanism monitors motion intensity and chest expansion parameters to distinguish between active movement and still presence in monitored areas.
- WIDE DETECTION COVERAGE: 90-degree horizontal and 60-degree vertical detection angles provide comprehensive area monitoring when installed at recommended height of 9 feet.

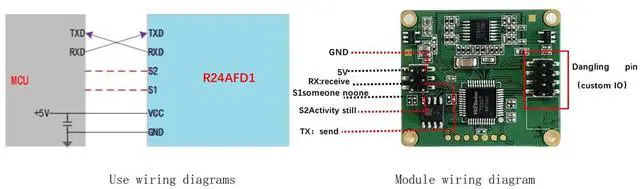

- BUILT-IN PROCESSOR: Integrated algorithm processor delivers direct output results via serial port or high/low level signals without requiring cloud computing or external processing.
- PENETRATING DETECTION: Radar waves penetrate low-density materials like thin wooden planks, allowing discreet installation behind surfaces while maintaining accurate detection of external moving objects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
MILLIMETER-WAVE RADAR TECHNOLOGY: 24GHz FMCW radar module detects human presence and motion with high accuracy up to 42.65 feet for moving targets and 16.4 feet for stationary detection..
ADVANCED DETECTION CAPABILITIES: 1T1R signal processing mechanism monitors motion intensity and chest expansion parameters to distinguish between active movement and still presence in monitored areas..
WIDE DETECTION COVERAGE: 90-degree horizontal and 60-degree vertical detection angles provide comprehensive area monitoring when installed at recommended height of 9 feet..
BUILT-IN PROCESSOR: Integrated algorithm processor delivers direct output results via serial port or high/low level signals without requiring cloud computing or external processing..
PENETRATING DETECTION: Radar waves penetrate low-density materials like thin wooden planks, allowing discreet installation behind surfaces while maintaining accurate detection of external moving objects.
ADVANCED DETECTION CAPABILITIES: 1T1R signal processing mechanism monitors motion intensity and chest expansion parameters to distinguish between active movement and still presence in monitored areas..
WIDE DETECTION COVERAGE: 90-degree horizontal and 60-degree vertical detection angles provide comprehensive area monitoring when installed at recommended height of 9 feet..
BUILT-IN PROCESSOR: Integrated algorithm processor delivers direct output results via serial port or high/low level signals without requiring cloud computing or external processing..
PENETRATING DETECTION: Radar waves penetrate low-density materials like thin wooden planks, allowing discreet installation behind surfaces while maintaining accurate detection of external moving objects.
