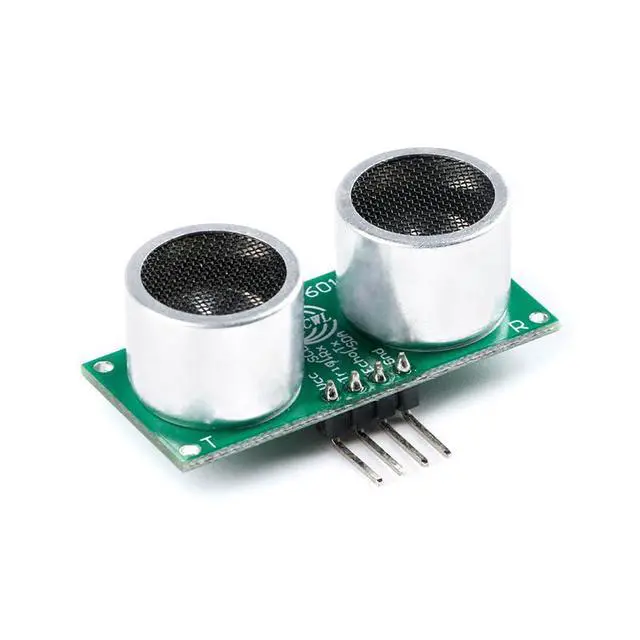

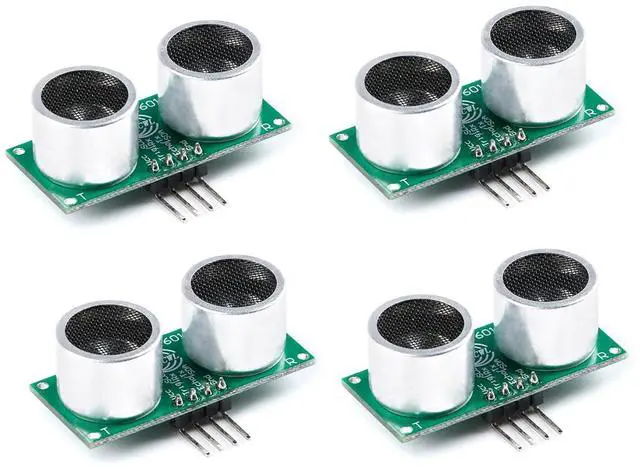

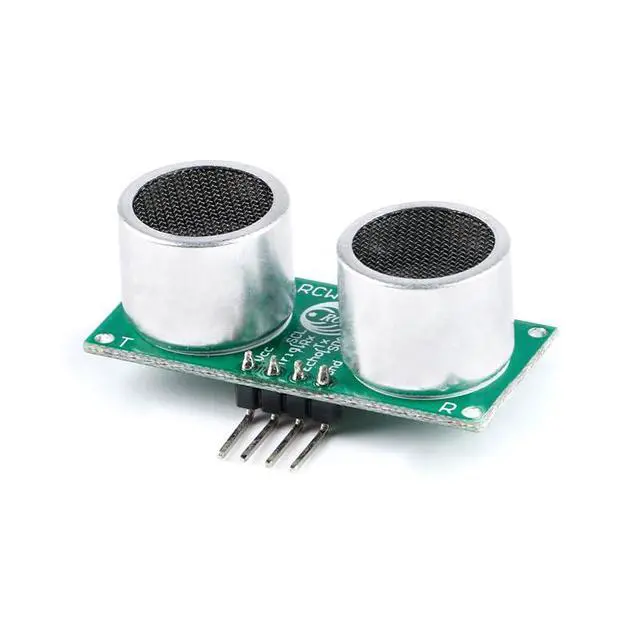

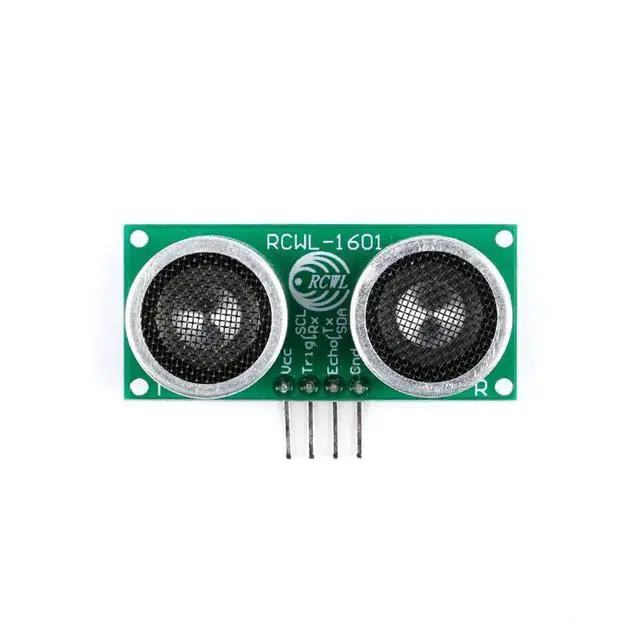

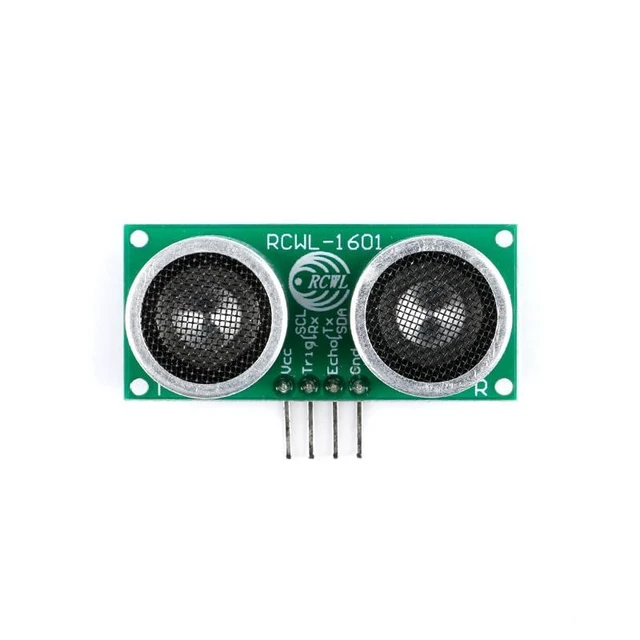

4Pcs RCWL-1601 Ultrasonic Ranging Sensor Module Compatible with HC-SR04 Ranging Sensor 2.2mA Wide Voltage 3V 5V

Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.

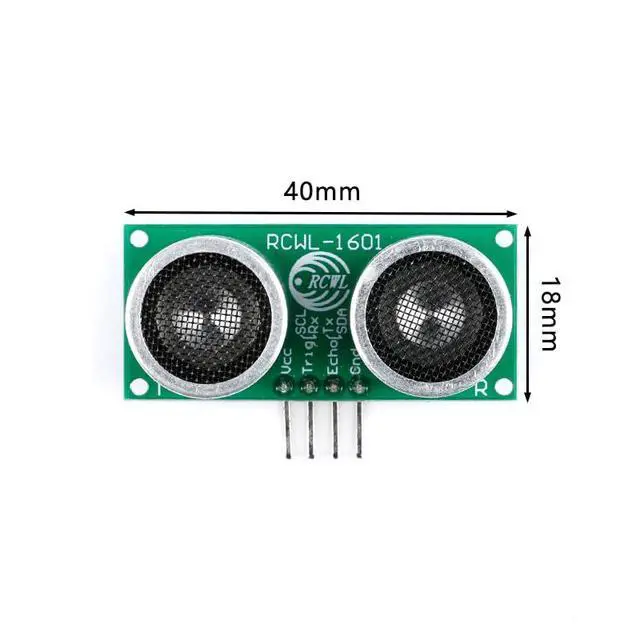

Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. RCWL-1601 is an open ultrasonic ranging module 2CM ultra-small blind spot, typical 4.5M farthest ranging 3V- 5.5V power supply voltage, 2.2 mA ultra-low working current High accuracy in measuring cotton and irregular objects 40 * 18mm smaller size Product parameters

Working voltage: 3V~ 5.5V;

Working current: 2.2 mA;

Maximum detection distance: 400CM~450CM

Working frequency: 40KHz

Blind spot: 2-3CM;

Detection accuracy: ± 2%

Resolution: 1mm;

Error: ± 0.5CM

Detection angle: ± 15 °~± 20 ° (maximum directional angle)

Measurement cycle time: 50mS

Output interface mode: GPIO

Working temperature: -10 ~60;

Working temperature: -10 ~90 (aluminum shell probe)

Mode 0: Mode Hanging = Trigger Pulse Width Output (Factory

Default Mode) Mode 1: M1 short circuit is automatic serial port output

Mode 2: M2 Short-circuit as Serial Controlled

Output Mode 3: Mode Welding 200K = Automatic Distance Pulse Width

Output Mode 4: Mode Welding 360K = Low Power Pulse Width Mode

Output Mode 5: Mode Welding 470K = Switching Value Mode Output LD2410C Human Presence Sensor Millimeter Wave Radar Sensor HLK-LD2410B Human Presence Radar Module Sensor Board HLK-LD2410 24g Smart Human Presence Sensor Radar Module Thin Film Pressure Sensor FSR402 Resistance Type Flexible Force Sensitive Resist Capacitive Soil Moisture Sensor Module 3.3 - 5.5V Corrosion Resistant Humidity JSN-SR04T Ultrasonic Distance Measuring Module Add to Cart Buying Options Add to Cart Add to Cart Buying Options Add to Cart Price $ 12.95 $12. 95 no data $ 9.95 $9. 95 $ 12.95 $12. 95 no data $ 9.33 $9. 33 price
