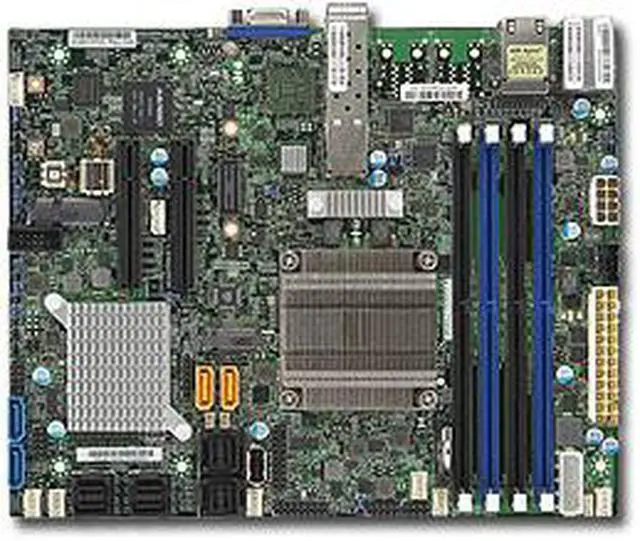

Supermicro X10SDV-7TP4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Retail Pack

X10SDV Embedded Boards / Xeon D SoC BGA

Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon® System-on a-Chip (SoC) D-1500 Family solutions. The X10SDV series offer infrastructure optimization, by combining the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. With server-class reliability, availability and serviceability (RAS) features now available in an ultra-dense, low-power device, the X10SDV will be able to deliver balanced compute, storage and intelligent edge networks and appliances. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon® processor D family, with up to 128GB DDR4 ECC RDIMM operating at 2133MHz, USB 3.0 I/O, six SATA3.0 storage and dual 10 GbE LAN networking ports.

Features

* Product Type: Server Motherboard
* Maximum Memory: 128 GB
* Product Type: Server Motherboard
* Compatibility: Supermicro SuperChassis

1U Chassis:

• SC504-203B
• SC505-203B
• SC813MTQ-350CB
• SC514-505
• SC515-R407

Supermicro SuperServer

Model(s)

• SSG-5018D8-AR12L

* Maximum Memory: 128 GB
* Limited Warranty: 1 Year
* Form Factor: Flex ATX
* Processor Supported: Xeon
* Total Processor Supported: 1
* Controller Type: Serial ATA/600
* Controller Type: 6Gb/s SAS
* Form Factor: Flex ATX
* Product Model: X10SDV-7TP4F
* Product Name: X10SDV-7TP4F Server Motherboard
* Package Type: Retail
* Processor Supported: Xeon
* RAID Levels: 10
* RAID Levels: 5
* RAID Levels: 1
* RAID Levels: 0
* Total Processor Supported: 1
* Controller Type: Serial ATA/600
* Controller Type: 6Gb/s SAS
* Processor Socket: Socket BGA-1667
* Brand Name: Supermicro
* Processor Socket: Socket BGA-1667
* Brand Name: Supermicro
* Memory Technology: DDR4 SDRAM
* Memory Technology: DDR4 SDRAM
* Width: 9"
* Depth: 7.3"
* Chipset Manufacturer: Intel
* Number of Memory Slots: 4
* Gigabit Ethernet: Yes
* Number of SATA Interfaces: 4
* Number of SAS Interfaces: 16
* Onboard Video: On-board Video Chipset
* RAID Supported: Yes
* Number of Total Expansion Slots: 2
* Number of PCI Express x8 Slots: 2
* Total Number of USB Ports: 2
* Number of USB 3.0 Ports: 2
* Total Number of Onboard USB Ports: 5
* Memory Form Factor: UDIMM
* Memory Form Factor: R
