Does is come with CPU fan on the heatsink as it is on the picture?

Yes, this model comes with a fan. The plus sign (+) in the name indicates it has a fan. So '4C+' equates to a four core cpu with a fan, while '4C' is a four core cpu without a fan.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

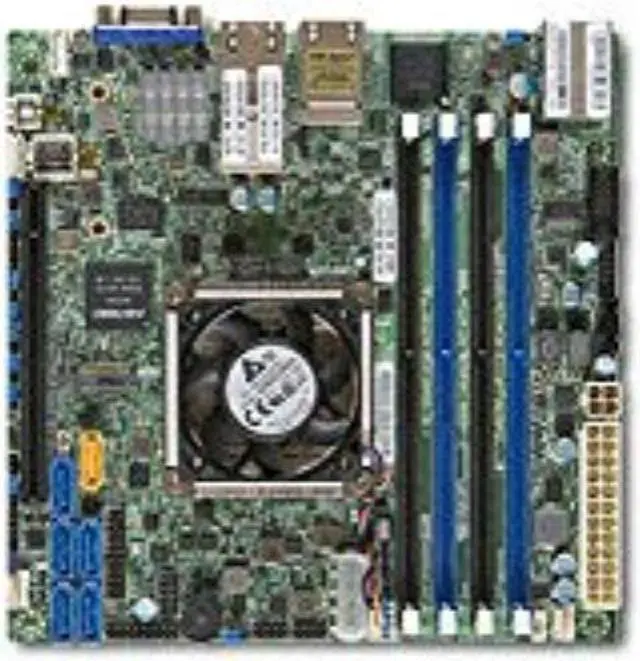

Main image of SUPERMICRO X10SDV-4C+-TLN4F-O Supermicro X10SDV-4C-TLN4F-O Intel Xeon D-1518 DDR4 SATA3 and USB3.0 V and 4GbE Mini-ITX Motherboard and CPU Combo X10SDV-4C+-TLN4F-O

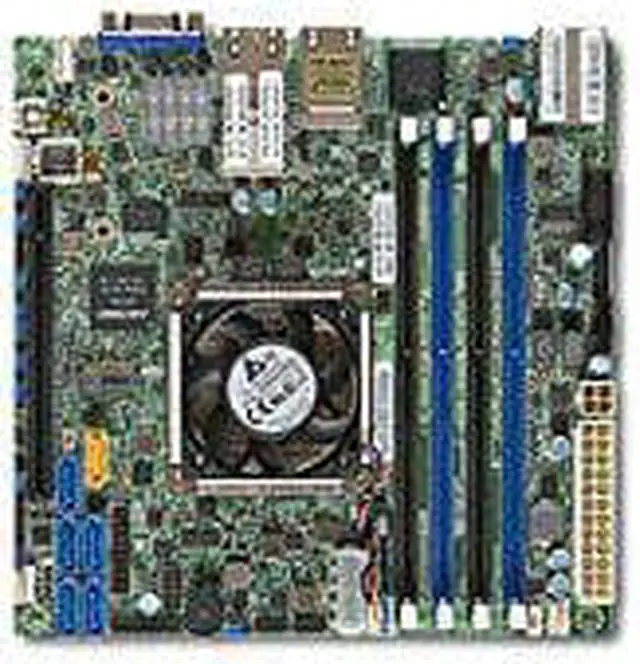

Alt view image 2 of 4 - SUPERMICRO X10SDV-4C+-TLN4F-O Supermicro X10SDV-4C-TLN4F-O Intel Xeon D-1518 DDR4 SATA3 and USB3.0 V and 4GbE Mini-ITX Motherboard and CPU Combo X10SDV-4C+-TLN4F-O

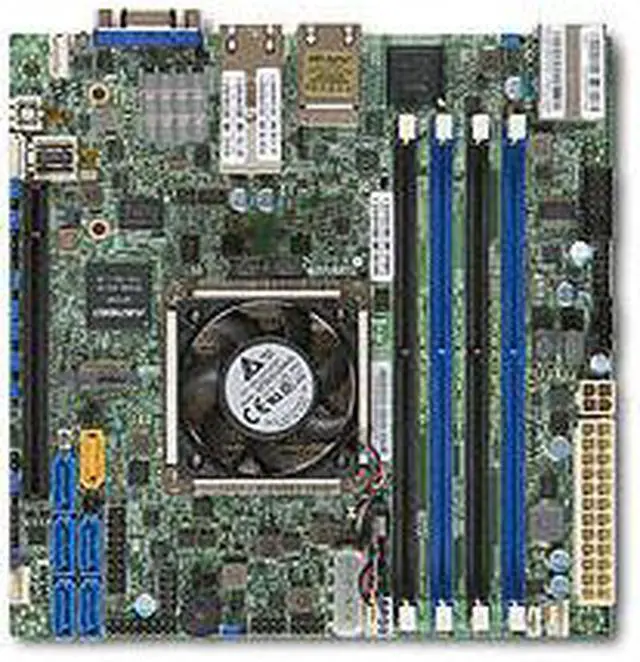

Alt view image 3 of 4 - SUPERMICRO X10SDV-4C+-TLN4F-O Supermicro X10SDV-4C-TLN4F-O Intel Xeon D-1518 DDR4 SATA3 and USB3.0 V and 4GbE Mini-ITX Motherboard and CPU Combo X10SDV-4C+-TLN4F-O

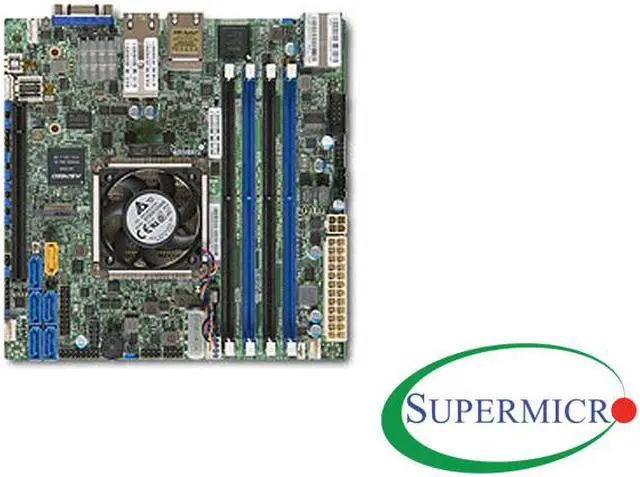

Alt view image 4 of 4 - SUPERMICRO X10SDV-4C+-TLN4F-O Supermicro X10SDV-4C-TLN4F-O Intel Xeon D-1518 DDR4 SATA3 and USB3.0 V and 4GbE Mini-ITX Motherboard and CPU Combo X10SDV-4C+-TLN4F-O

Shop All Supermicro Products

SUPERMICRO X10SDV-4C+-TLN4F-O Supermicro X10SDV-4C-TLN4F-O Intel Xeon D-1518 DDR4 SATA3 and USB3.0 V and 4GbE Mini-ITX Motherboard and CPU Combo X10SDV-4C+-TLN4F-O

(1) Write a Review

FCBGA1667

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

Specifications Mfr
Part Number: X10SDV-4C+-TLN4F-OCPU
(Included): Intel Xeon D-1518 Processor; Support up to 35W
TDP (Quad-Core)Chipset: System on Chip
Memory: 4x DDR4-2133/ 1866/ 1600MHz DIMM Slots, Support up to 128GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered
Memory
Slots: 1x PCI-Express 3.0 x16 Slot; 1x M. 2 Slot (M key 2242/2280, PCI-Express
3.0 x4)SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10 RSTe
Video: Aspeed AST2400
Graphics
LAN: Dual 10-Gigabit Base-T and Intel i350-AM2 Dual-Port Gigabit Ethernet Controllers, 1x Realtek RTL8201N PHY (dedicated IPMI)
Ports: 2x USB 3.0 Ports, 4x USB 2.0 Ports (via headers), 2x RJ45 LAN Ports, 2x RJ45 10Base-T Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cmIntel Xeon D-1518 is included with this motherboard. RoHS Compliant

Supported CPU
CPU Socket Type	FCBGA1667

Memory
Number of DDR4 Slots	4 x 288-pin
DDR4 Standard	DDR4 2133
ECC Supported	Yes

Expansion Slots
PCI Express 3.0 x16	1

Rear Panel Ports
USB 1.1/2.0	4 x USB 2.0
USB 3.0	2 x USB 3.0

Dimensions
Form Factor	Mini ITX

Additional Information
First Listed on Newegg	October 20, 2016
