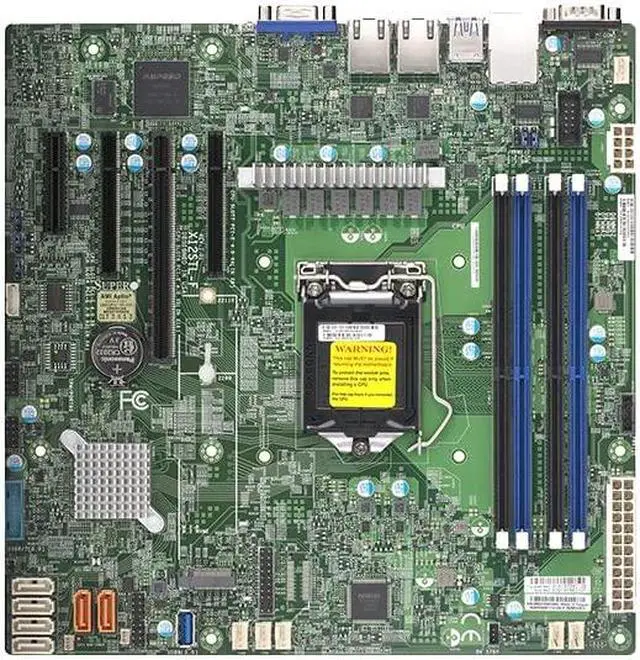

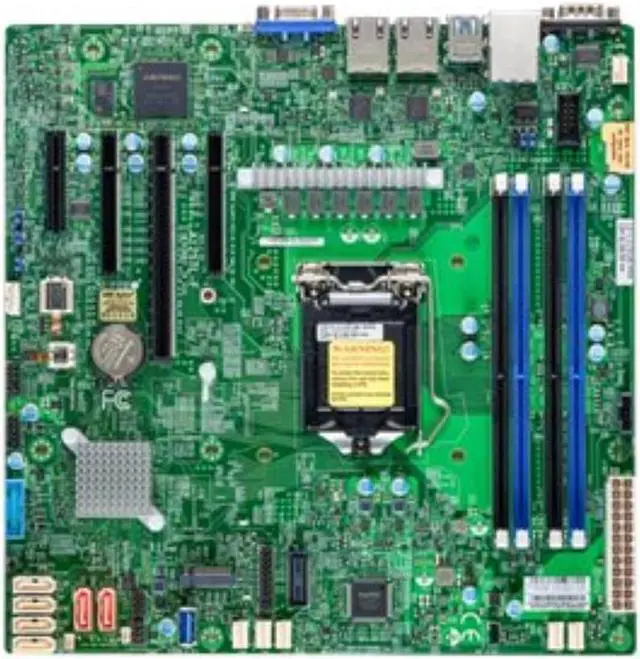

SUPERMICRO X12STL-F - Motherboard - micro ATX - LGA1200 Socket - C252 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics MBD-X12STL-F-B - Bulk packaging - - OEM
- Product Type: Motherboard - micro ATX
- Chipset Type: Intel C252
- Processor Socket: LGA1200 Socket
- Max Processors Qty: 1
- Compatible Processors: Pentium, Xeon E (Maximum TDP 95 Watt)
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Supported RAM
Max Size: 128 GB
Technology: DDR4
Bus Clock: 2666 MHz, 2933 MHz, 3200 MHz
Supported RAM Integrity Check: ECC
Registered or Buffered: Unbuffered
Graphics
Graphics Controller: ASPEED AST2600
LAN
Network Controller: Intel I210
Network Interfaces: 2 x Gigabit Ethernet
Expansion / Connectivity
Expansion Slots: 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 4.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x4 (x2 mode) ¦ 1 x PCIe 4.0 x8 (x4 mode) ¦ 1 x PCIe 4.0 x8
Storage Interfaces: Intel C252: SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces: 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x serial
Internal Interfaces: 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x USB 3.2 Gen 1 - Type A
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
The Supermicro X12STL-F is a micro-ATX server motherboard with an Intel C252 chipset and LGA1200 socket, suited to compact server builds using a compatible Pentium or Xeon E processor rated up to 95W.
Recommended For
- DIY NAS and backup-server builders who want ECC memory, six onboard SATA ports, and remote management for a system that may run unattended.
- Home-lab and virtualization users building a compact Xeon server who value IPMI with KVM for remote setup, monitoring, and recovery.
- Builders fitting a server into a microATX tower or rack chassis who need several PCIe slots for add-in cards such as a storage controller or faster network adapter.
- Small-server builders who want a straightforward storage layout for up to six SATA drives plus one M.2 NVMe boot or application drive.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Pentium- or Xeon-based PC builds using an LGA 1200 motherboard platform |
| Form Factor And Chipset | Micro ATX board with an Intel C252 chipset |
| Processor Socket And Compatibility | LGA 1200 socket; compatible with Intel Pentium and Xeon processors |
| Memory Configuration | DDR4 memory, up to 128 GB across 4 slots, with a 3200 MHz memory clock speed |
| Expansion And Graphics Interface | 5 PCIe ports; graphics card interface uses PCI Express |
| Storage And Power | 6 SATA 3 ports and a 24-pin main power connector |
| Ports And Networking | 9 USB ports, including 4 USB 2.0 ports; 2 Ethernet ports; no HDMI ports; optical S/PDIF connector |
| Model Identifiers | Supermicro MBD-X12STL-F-B |
