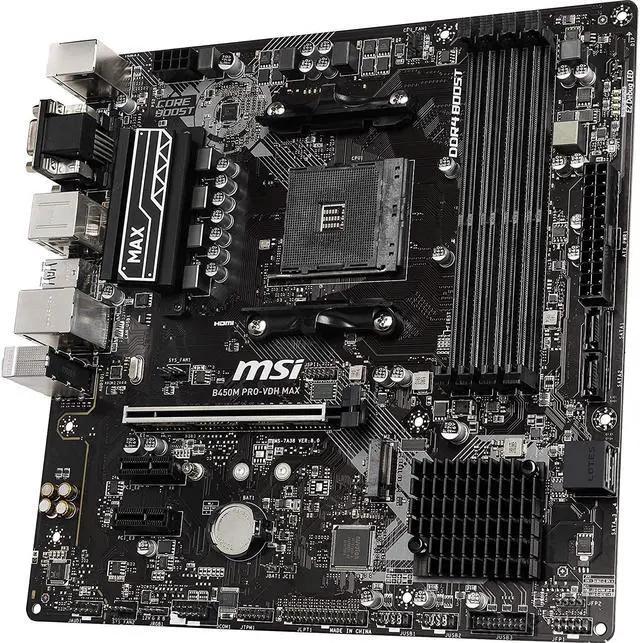

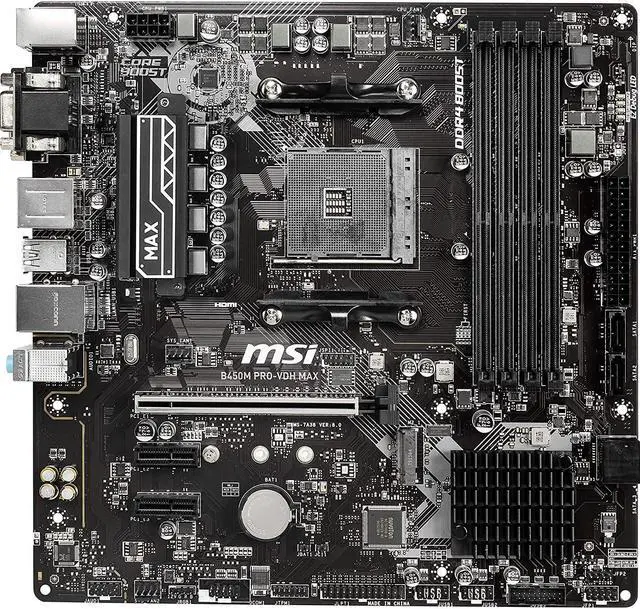

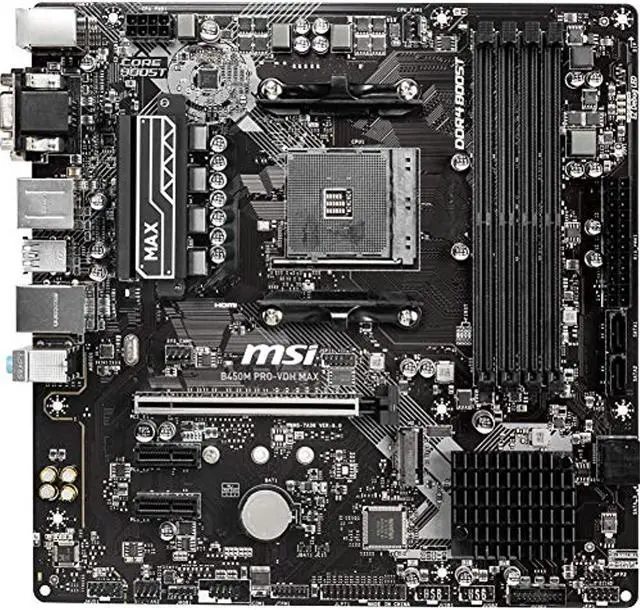

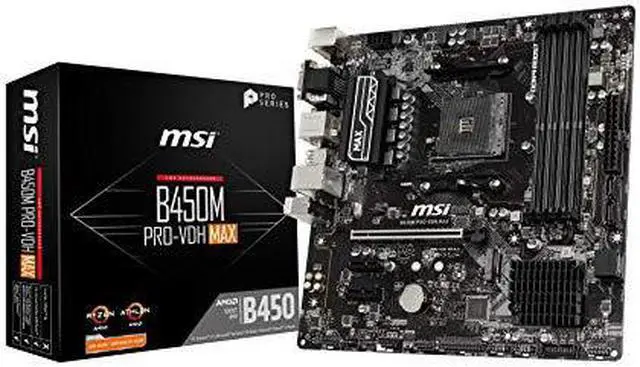

MSI B450PVDHMAX B450M PRO-VDH MAX AM4 B450 64 GB DDR4 D-SUB, DVI & HDMI mATX Motherboard

The MSI B450 motherboard platform is design optimal game experience. Supports 1st- 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4.
Specifications Audio: High Definition
Audio (8-channel) Depth: 9.6 in.
Width: 9.6 in.
Storage: M. 2 socket- Serial ATA-600 (RAID)
Storage Ports: 4 x SATA-600 (RAID) - 1 x M. 2 USB 3.0
Fire
Wire: USB 3.2 Gen 1 USB Fire
Wire

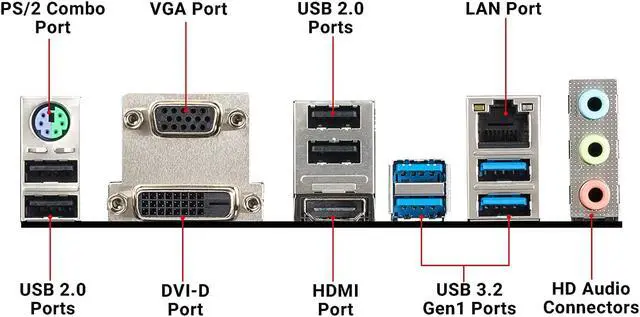

Ports Configuration (Active): 4 x USB 3.2 Gen 1 + 4 x USB 2.0 USB Fire
Wire
Ports Configuration (Headers): 2 x USB 3.2 Gen 1 + 4 x
USB 2.0 Chipset Type: AMD B450
Compatible Processors: Athlon- Ryzen
Form Factor: Micro ATX
Power Connectors: 24-pin main power connector- 8-pin ATX12V connector
Processor Socket: Socket AM4
RAM Slots: 4 DIMM slots Supported
RAM (Registered or Buffered): Unbuffered Supported
RAM Integrity Check: ECC (operate in. non-ECC mode)- Non-ECC Supported
RAM Speed: 1866 MHz Supported
RAM Technology: DDR4 SDRAM

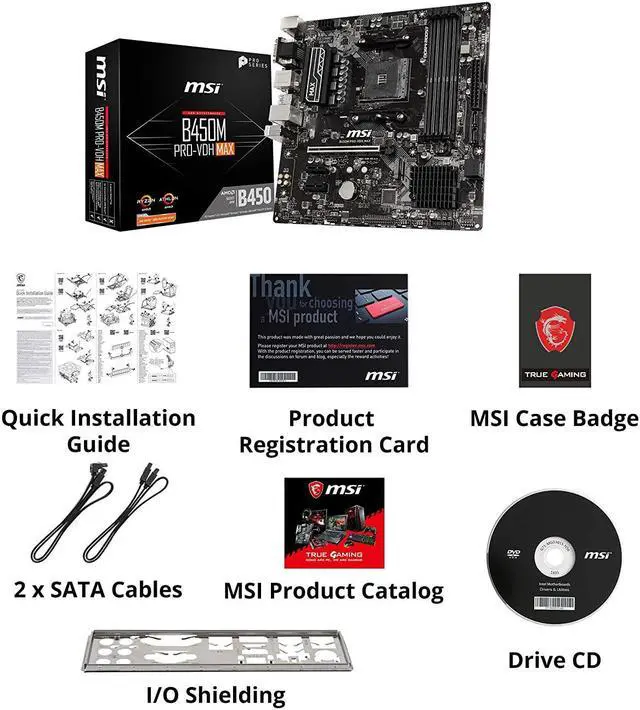

Included Accessories: I/O back plate
Data Link Protocol: Ethernet- Fast Ethernet- Gigabit
Ethernet Network: Gigabit Ethernet
Network Controller: Realtek
RTL8111H Max Supported Size: 64 GB
Connector (s): 1 x M.
2 Interface: Serial ATA-600 / PCIe 3.0
Connector (s): 4 x 7pin
Serial ATA Interface: Serial ATA-600
RAID (Level): RAID 0 / RAID 1 / RAID 10 Max Allocated
RAM Size: 2048
MB Weight: 4 lbs
