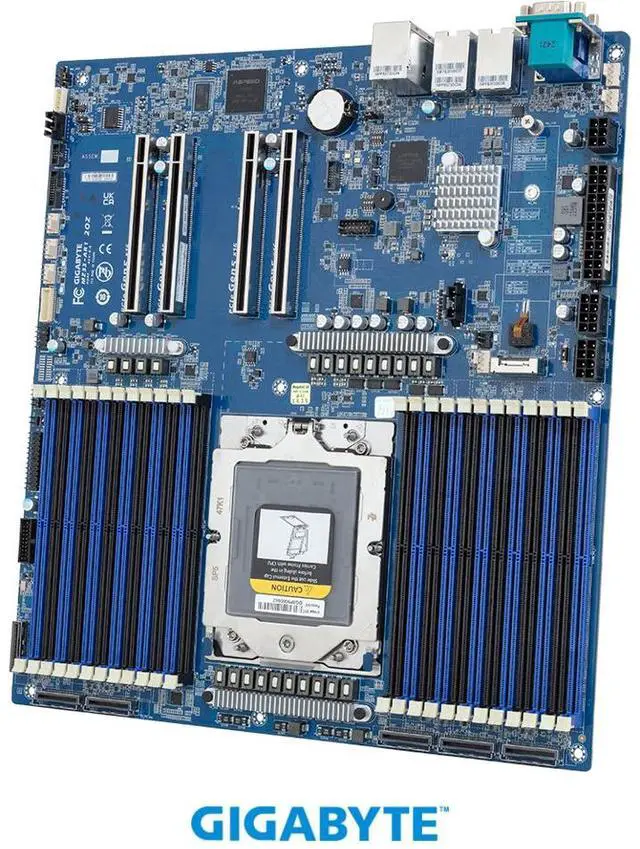

Gigabyte Technology MZ33AR1 E-ATX Server Motherboard for AMD EPYC 9005/9004
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
MZ33-AR1
Rev. 3.x
Motherboard - AMD EPYC 9005 / 9004 - E-ATX UP < / b>
Single AMD EPYC 9005 / 9004 Series Processors
12-Channel DDR5 RDIMM, 24 x DIMMs
2 x 10Gb / s LAN ports via Broadcom BCM57416
2 x MCIO 8i connectors with PCIe Gen5 x8 or SATA interface
3 x MCIO 8i connectors with PCIe Gen5 x8 interface
1 x MCIO 8i connector with PCIe Gen4 x8 interface
1 x M.2 slot with PCIe Gen4 x4 interface
4 x PCIe Gen5 x16 expansion slots
New AMD EPYC Family of Processors - Same Great SP5 Platform < / b>
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC processors. The same successful platform that was shared by AMD EPYC 9004 8004 series processors is now the same one for AMD EPYC 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC 9004 series, the new EPYC 9005 series adopts the 3nm process with AMD Zen5 and Zen5c core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC processors.Form Factor (WxD, mm) < / b>
E-ATX
304.8 x 330.2CPU< / b>
AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Single processor, cTDP up to 500WSocket< / b>
1 x LGA 6096
Socket SP5Chipset< / b>
System on ChipMemory< / b>
24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
AMD EPYC 9005:
RDIMM: Up to 5200 MT / s (1DPC)
RDIMM: Up to 4400 MT / s (1R 2DPC), 4000 MT / s (2R 2DPC)
AMD EPYC 9004:
RDIMM: Up to 4800 MT / s (1DPC), 3600 MT / s (2DPC)LAN< / b>
2 x 10Gb / s LAN (1 x Broadcom BCM57416)
- Support NCSI function
1 x 10 / 100 / 1000 Mbps Management LANVideo< / b>
Integrated in ASPEED AST2600
- 1 x VGA portAudio< / b>
N / AStorage Interface< / b>
MCIO:
2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA
3 x MCIO 8i for 6 x Gen5 NVMe
1 x MCIO 8i for 2 x Gen4 NVMe
M.2:
1 x M.2 (2280 / 22110), PCIe Gen4 x4RAID< / b>
N / APCIe Expansion Slots< / b>
Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_3: PCIe x16 (Gen5 x16)
2 x MCIO 8i (PCIe Gen5 x8 or SATA) 12
3 x MCIO 8i (PCIe Gen5 x8) 1
1 x MCIO 8i (PCIe Gen4 x8)
1 Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.
2 The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.Internal I / O< / b>
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 header
1 x M.2 slot
6 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM headerRear I / O< / b>
2 x USB 3.2 Gen1
Rev. 3.x
Motherboard - AMD EPYC 9005 / 9004 - E-ATX UP < / b>
Single AMD EPYC 9005 / 9004 Series Processors
12-Channel DDR5 RDIMM, 24 x DIMMs
2 x 10Gb / s LAN ports via Broadcom BCM57416
2 x MCIO 8i connectors with PCIe Gen5 x8 or SATA interface
3 x MCIO 8i connectors with PCIe Gen5 x8 interface
1 x MCIO 8i connector with PCIe Gen4 x8 interface
1 x M.2 slot with PCIe Gen4 x4 interface
4 x PCIe Gen5 x16 expansion slots
New AMD EPYC Family of Processors - Same Great SP5 Platform < / b>
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC processors. The same successful platform that was shared by AMD EPYC 9004 8004 series processors is now the same one for AMD EPYC 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC 9004 series, the new EPYC 9005 series adopts the 3nm process with AMD Zen5 and Zen5c core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC processors.Form Factor (WxD, mm) < / b>
E-ATX
304.8 x 330.2CPU< / b>
AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Single processor, cTDP up to 500WSocket< / b>
1 x LGA 6096
Socket SP5Chipset< / b>
System on ChipMemory< / b>
24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
AMD EPYC 9005:
RDIMM: Up to 5200 MT / s (1DPC)
RDIMM: Up to 4400 MT / s (1R 2DPC), 4000 MT / s (2R 2DPC)
AMD EPYC 9004:
RDIMM: Up to 4800 MT / s (1DPC), 3600 MT / s (2DPC)LAN< / b>
2 x 10Gb / s LAN (1 x Broadcom BCM57416)
- Support NCSI function
1 x 10 / 100 / 1000 Mbps Management LANVideo< / b>
Integrated in ASPEED AST2600
- 1 x VGA portAudio< / b>
N / AStorage Interface< / b>
MCIO:
2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA
3 x MCIO 8i for 6 x Gen5 NVMe
1 x MCIO 8i for 2 x Gen4 NVMe
M.2:
1 x M.2 (2280 / 22110), PCIe Gen4 x4RAID< / b>
N / APCIe Expansion Slots< / b>
Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_3: PCIe x16 (Gen5 x16)
2 x MCIO 8i (PCIe Gen5 x8 or SATA) 12
3 x MCIO 8i (PCIe Gen5 x8) 1
1 x MCIO 8i (PCIe Gen4 x8)
1 Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.
2 The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.Internal I / O< / b>
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 header
1 x M.2 slot
6 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM headerRear I / O< / b>
2 x USB 3.2 Gen1
