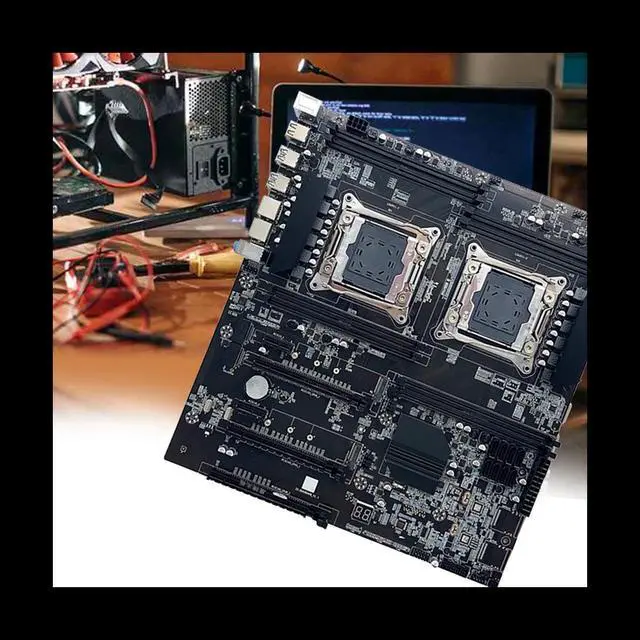

X99 Dual CPU ALEO Mining Motherboard+SATA Cable+Baffle LGA2011 V3/V4 8XDDR4 Slot PCIE 16X 8XSATA3.0 Supports 5 GPU Miner

1. Support dula M. 2 NVME, 8-port SATA 3.0 interface

2. All solid-state capacitors, fine workmanship, professional stability. High compatibility, higher experience

3.
Memory slot: DDR4*8, four-channel, support 2133/2400MHz frequency memory, A single bar can support up to 32GB, maximum support 256G (desktop general memory/ECC memory)

4. The motherboard is low in price and rich in expansion interfaces, suitable for the mining industry.

5.
Model Name: X99 DDR4 Dual Socket Motherboard; Motherboard

Specifications

: E-ATX;
Chipset: For X99;
CPU series: suitable for INTEL series;
CPU pin: LGA2011 V3/V4 Slot
Rear interface:
1*PS/2 keyboard and mouse
2*USB 2.0
2*USB 3.0
2*UsB 3.0
1*Network card 1
1*Network card 2
1*Audio interface
Front interface:
1*F-USB 2.0 (expand 2 USB 2.0 )
1*F-USB 3.0 interface pin (two USB 3.0 interfaces can be expanded)
1*F-AUDIO extended audio pin
1*COM232 pin
1*JSPK peaker interface
1*JCMOS initial BIOS restore pin
2*CPU Fan Processor Fan Pin
2*CSYSFAN system fan pin
8*SATA 3.0 interface
2*PCIE X1 interface
Hard disk interface: 2 * M. 2 interface, support NGFF/NVME mode, switch by hopping, 8 * SATA 3.0
USB interface: 6 * USB 3.0 interface and 4 * USB 2.0 interface are supported
Graphics card slot: 2 * PCIE 3.0 16X, 1 * PCIE16X (8X speed), 2 * PCIE X1 interface
Audio interface: 1 * standard audio three in one, Realtek ALC897 high fidelity audio independent sound card
Network card interface: 2 * Realtek8111H gigabit network card
Power supply interface: 1 * 24 PIN ATX PWR, 2 * 8 PIN ATX12V
Temperature: - 20 -+60
Product size: 33 x 31cm
Different production batches, the appearance or interface will be slightly different, which will not affect the use
color: Black
Material: PCB
Package Contents:
1 x X99 dual CPU motherboard
1 x 5-port Graphics Card adapter
1 x SATA cable
1 x Baffle
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
