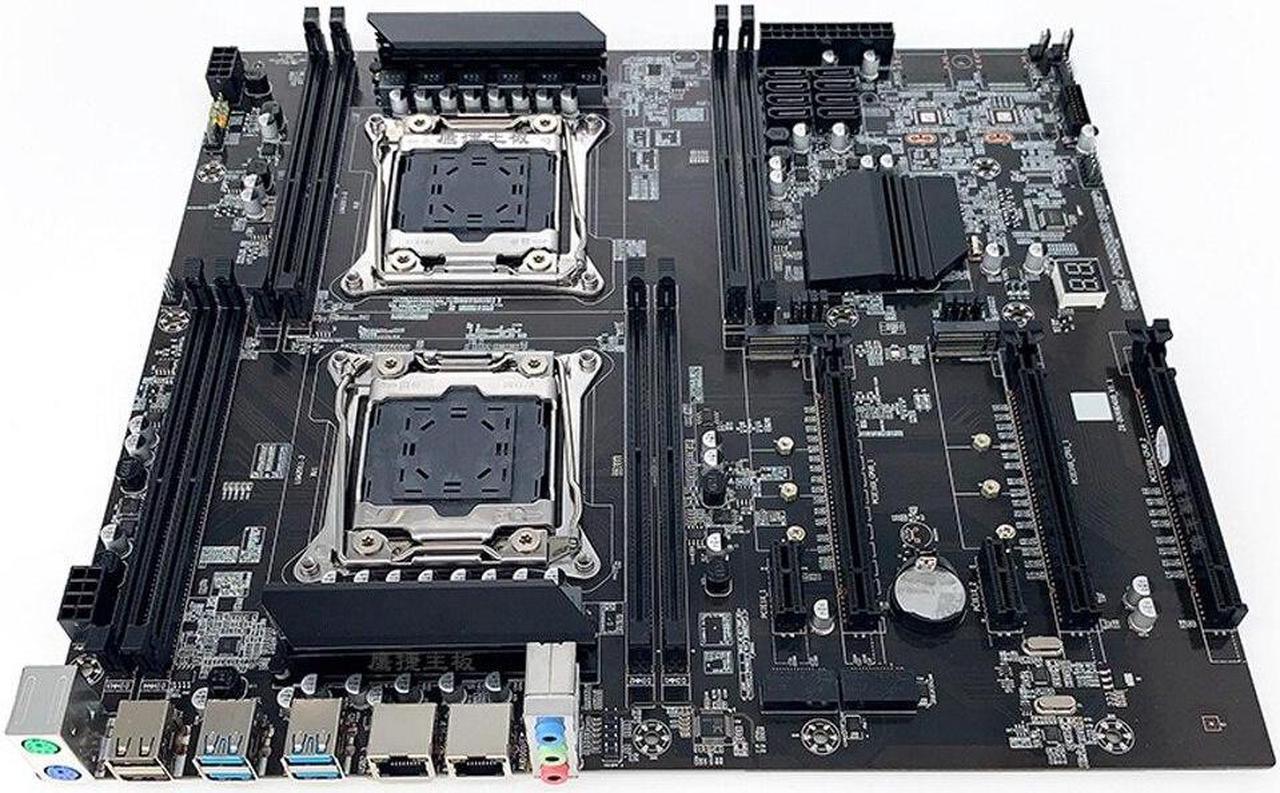

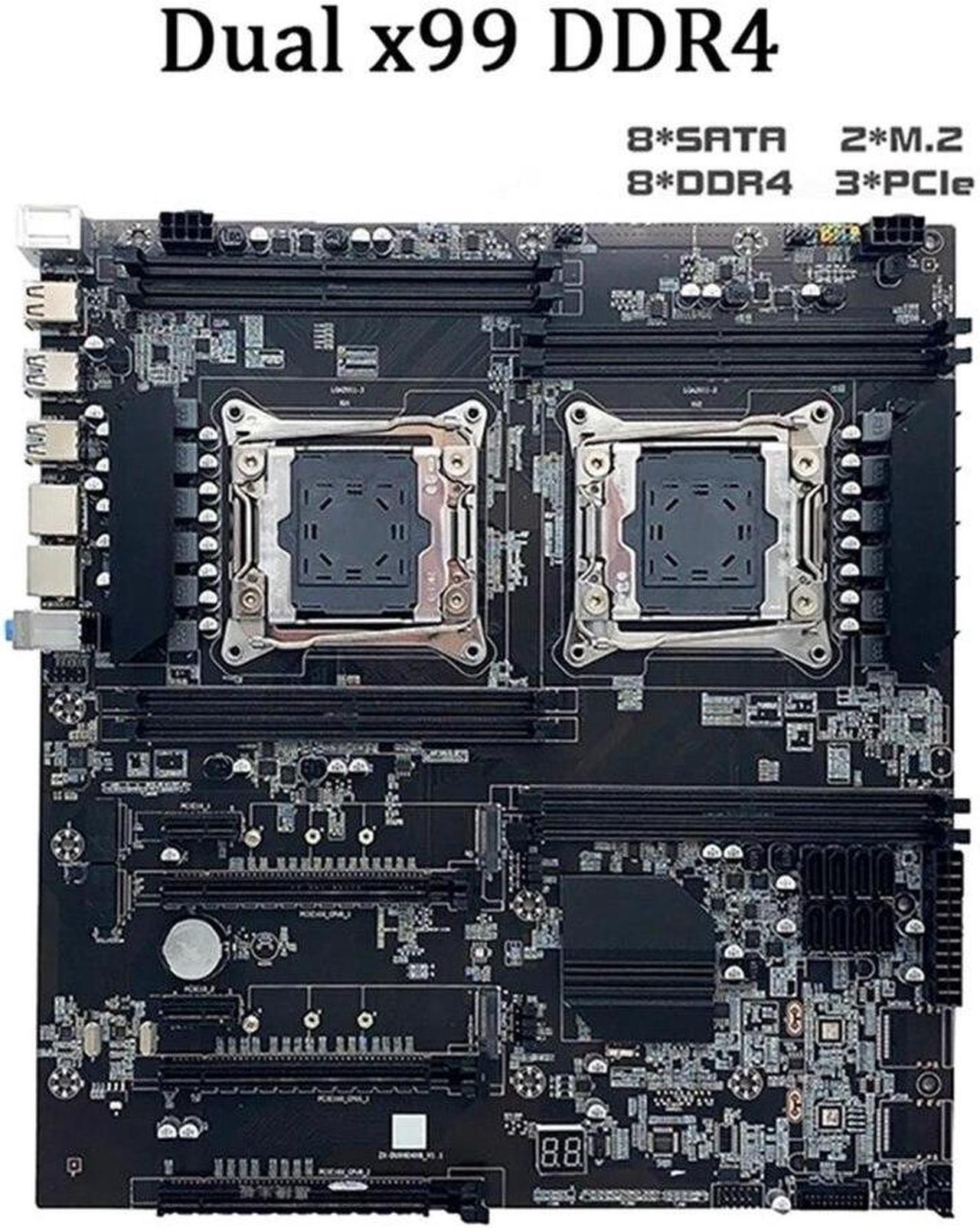

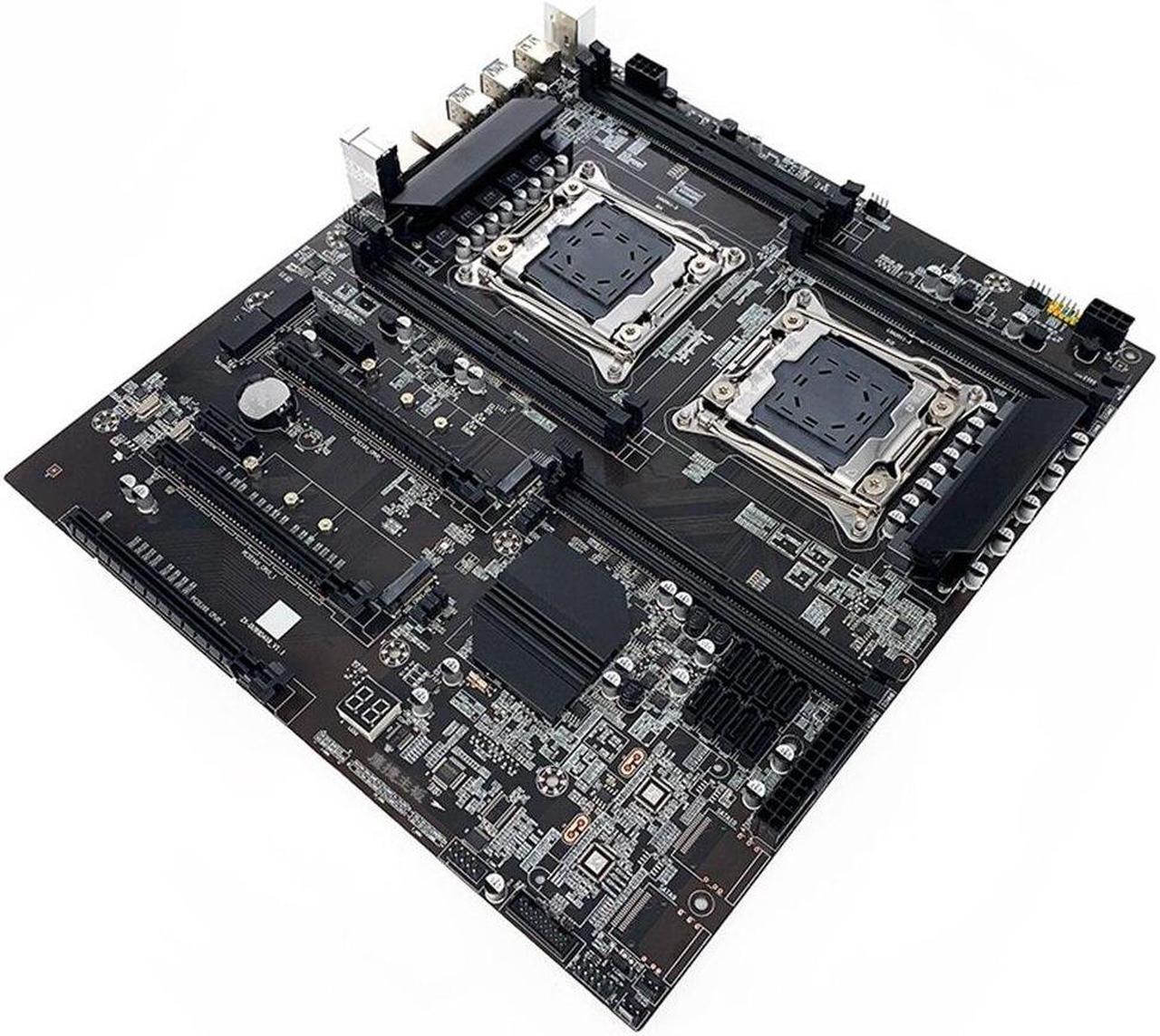

X99 Dual-Socket Motherboard+2XE5-2620 V4 CPU+2XThermal Pad LGA2011-3 8XDDR4 ECC RAM Slot PCIE X16 Server PC Motherboard

1. Support dula M. 2 NVME, 8-port SATA 2.0 interface

2. All solid-state capacitors, fine workmanship, professional stability

3. High compatibility, higher experience

4. The power socket has 2 x 8 pins and 1 x 24 pins power plug

5. Support four-channel DDR4 2133/2400/2800MHz, the maximum memory capacity is 256G (32G x 8)
Model Name: X99 DDR4 Dual Socket Motherboard
color: Black
Material: PCB+Metal
Motherboard

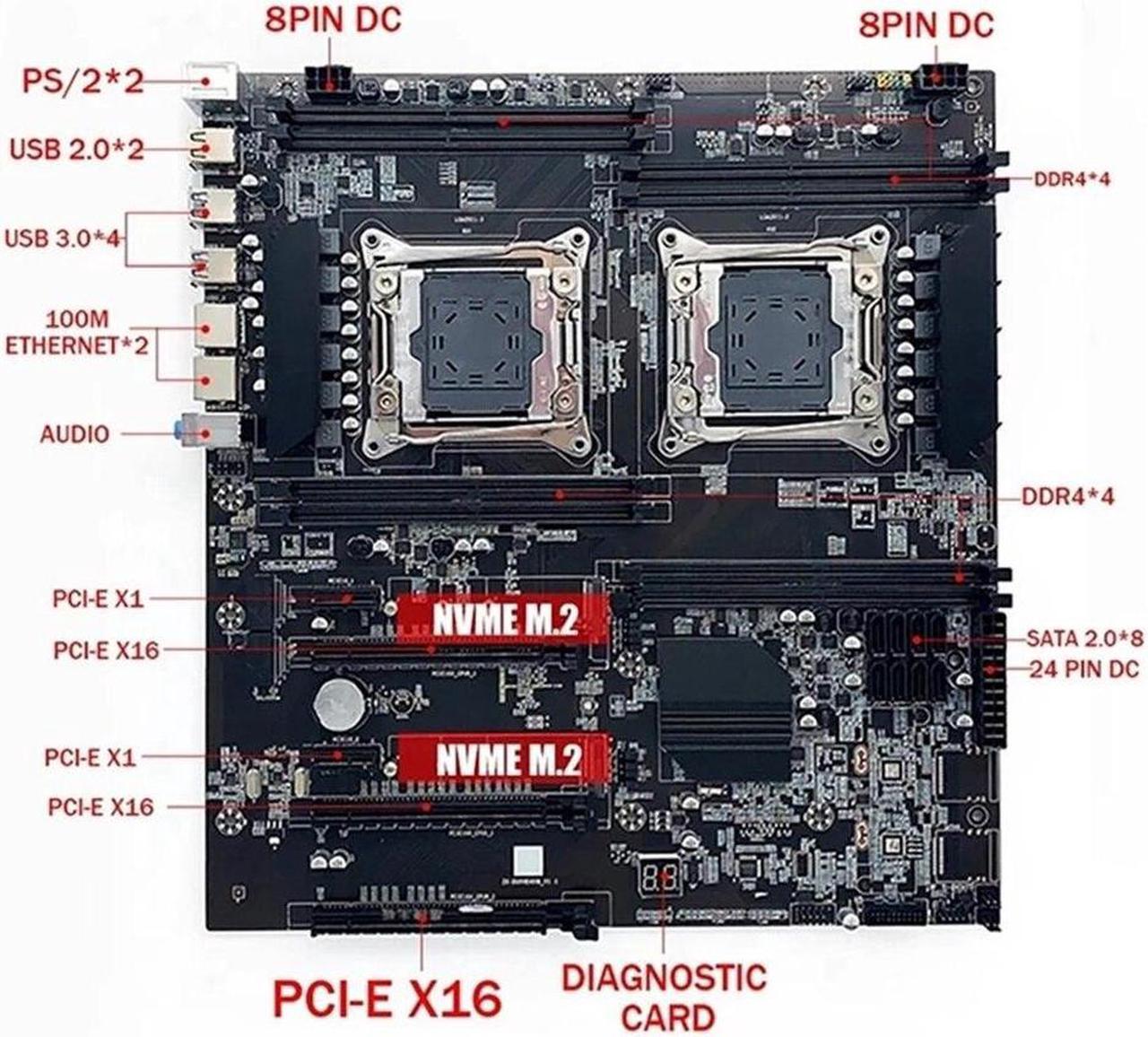

Specifications

: E-ATX
Chipset: For X99
CPU series: suitable for INTEL series
CPU pin: LGA2011-3 Slot
Memory slot: DDR4 x 8 four-channel, support 2133/2400/2800MHz frequency memory, maximum support 256G (desktop general memory/ECC memory)
Rear USB: 2 x USB 2.0, 4 x USB 3.0
Front USB: 2 USB 2.0, 1 front USB 3.0
Graphics card slot: PCI-E graphics card slot
Storage interface: SATA 2.0 x 8, M. 2 NVME protocol interface x 2
Expansion interface: 3 x PCI Express x16, 2 x PCI Express x1 slot
Onboard network card: 2 x 100Mbps network port
Power interface: 24pin+8pin
Number of PCB layers: 8-layer PCB, 12-phase power supply
Product size: 33 x 31cm
Different batches of production, there will be some differences in appearance color, which is subject to the real thing and does not affect the use.

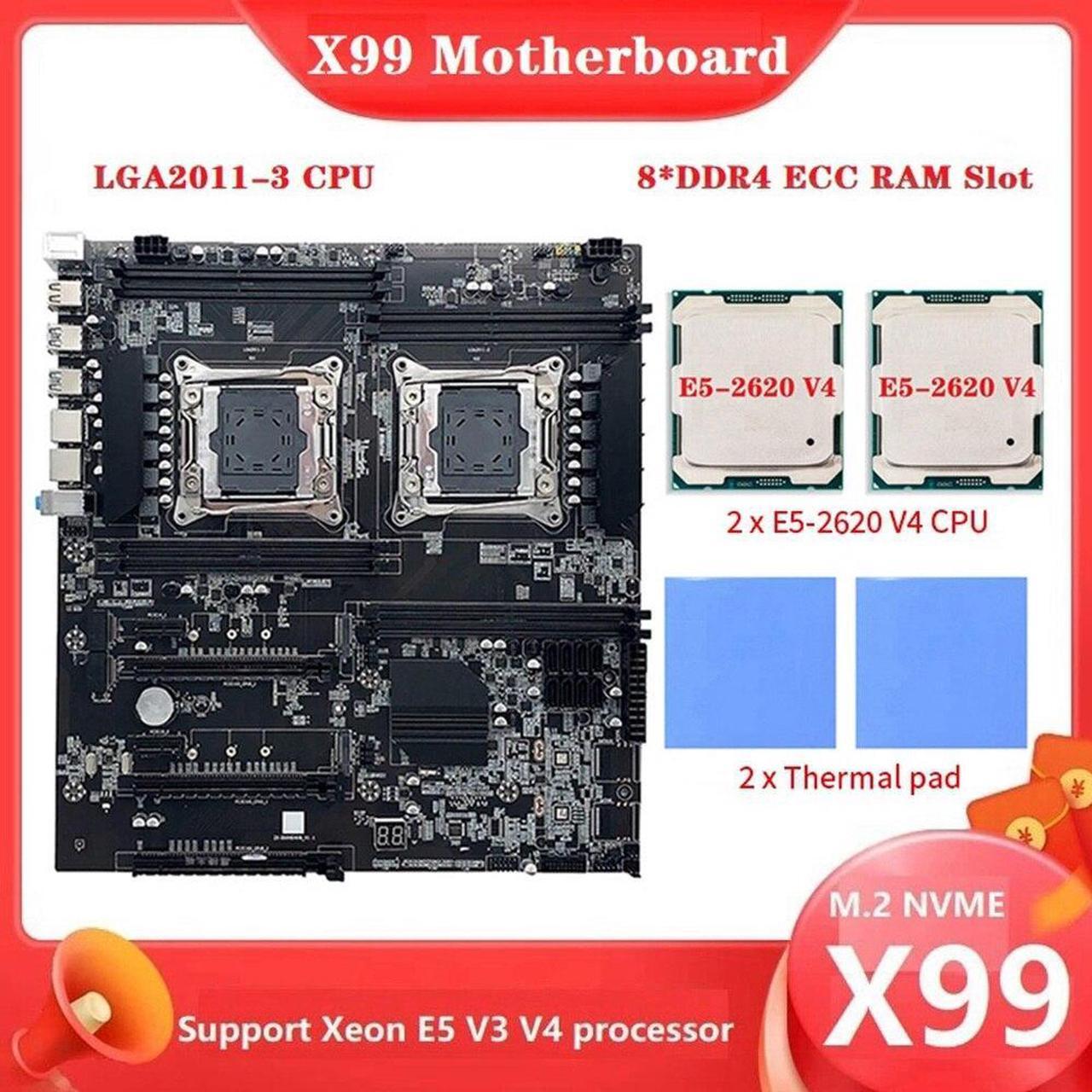

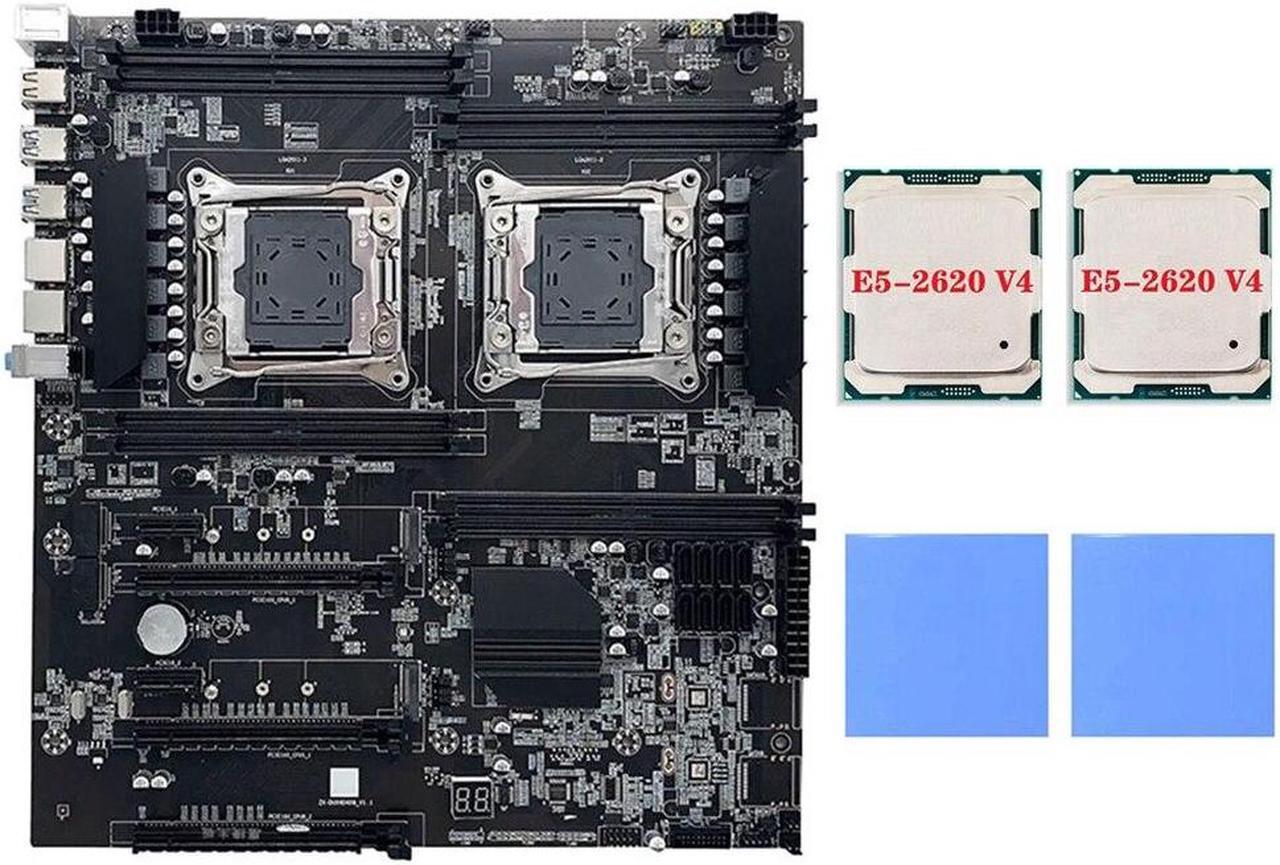

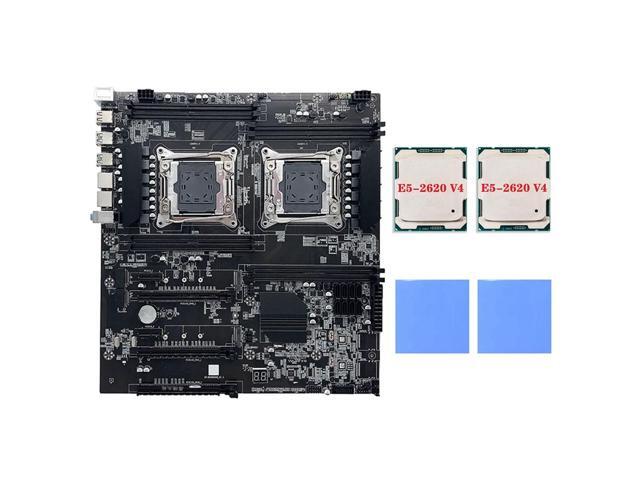

Package Contents:
1 x X99 dual-channel motherboard
2 x E5-2620 V4 CPU
2 x thermal pads
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
