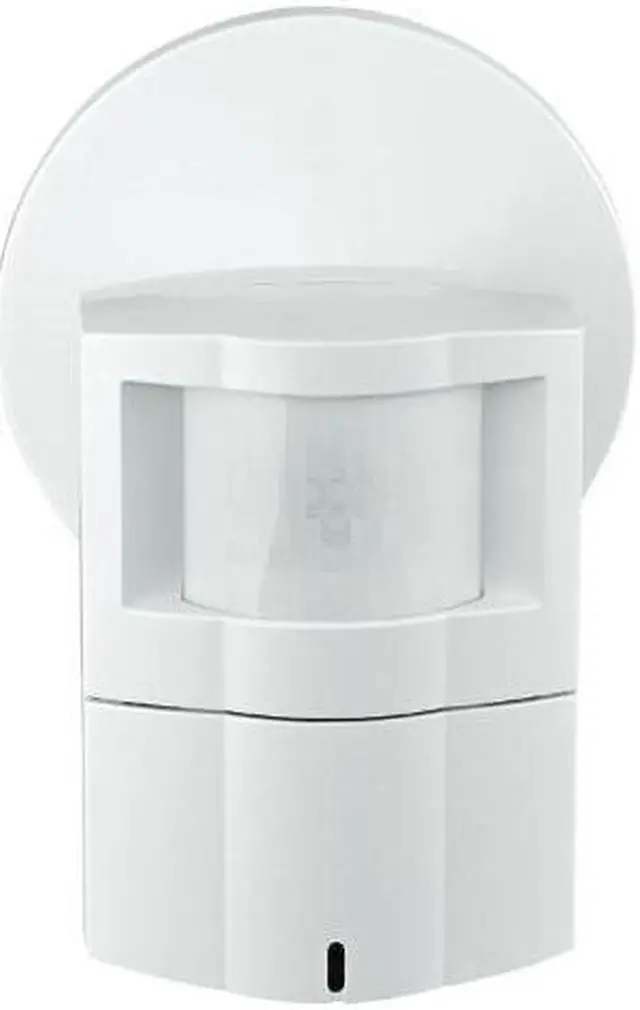

Eaton Passive Infrared Ceiling Sensor AHAWC-P-120W, wall/corner PIR occupancy sensor, self-adjusting time delay and sensitivity, wide angle, 1200 square ft, white

Eaton AHAWC-P-120WKEY_TAB

PIR occupancy motion sensor

• The sensor is designed to detect motion from a heat-emitting source (such as a person entering a room) within its field-of-view and automatically switch lights ON. These sensors have multi-segmented lenses. For units to sense motion, the person must cross between two segments. The distance between segments increases the farther you are from the sensor, so motion has to be larger the farther you are from the unit.


• KEY_TAB PIR sensors are considered line-of sight sensors, meaning that the sensor must be able to have a direct line-of-sight to the person making the motion.KEY_TAB


• The sensor includes self-adaptive technology that continuously self-adjusts sensitivity and time delay in real-time, maximizing the potential energy savings that are available in the particular application.KEY_TAB


• In automatic ON mode, the lights turn ON when a person enters the room. In manual ON mode, the lights are turned ON by activating a momentary switch (model # GMDS-*) that is connected to the sensor.


• White, Durable, injection molded housing. Polycarbonate resin complies with UL 94V-0


• 32 kHz,


• 1200 sq ft


• Height: 5.125 inches


• Width: 3.3 inches


• Length/Depth: 3 inches


• Mounts directly to ceiling tile, to a 4? square box and round mud ring or to 4? octagon box


• Red LED indicator for PIR detection
