12x12x7.3mm Panel Momentary 4-Pin PCB DIP Tactile Tact Push Button Switch 10PCS
- Product Name: Push Button Switch;Rated Load: DC12V 50mA;Withstand Voltage: AC250V;Pin Number: 4;Dimension: 12x12x7.3mm/0.47*0.47*0.29inch(L*W*H)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature momentary contact, 4 pins, black square push button, through hole mounting.
Used in the fields of electronic products, household appliances and more.
High precision mechanism design offers acute operation and long service life.
KEY_TAB
Specification:
Terminals Number: 4
Temperature: -25~70C
Withstand voltage: AC250V
Rated load: DC12V 50mA
Contact resistance: less than 0.03 Ohm
Insulation resistance: More than 100M Ohm

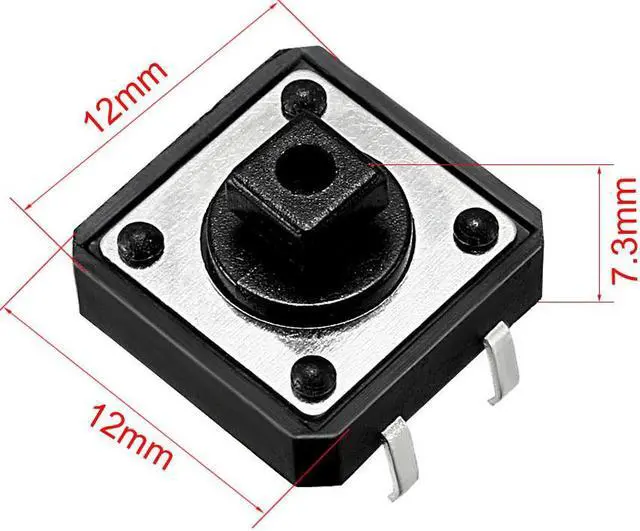

Dimension: 12x12x7.3mm/0.47*0.47*0.29inch(L*W*H)
Weight: 10g
KEY_TAB
Package included:

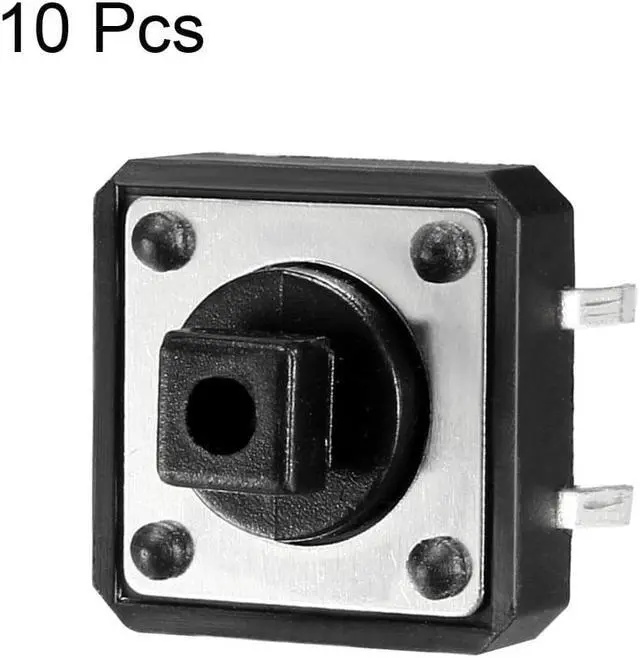

10pcs x Tact Switches
