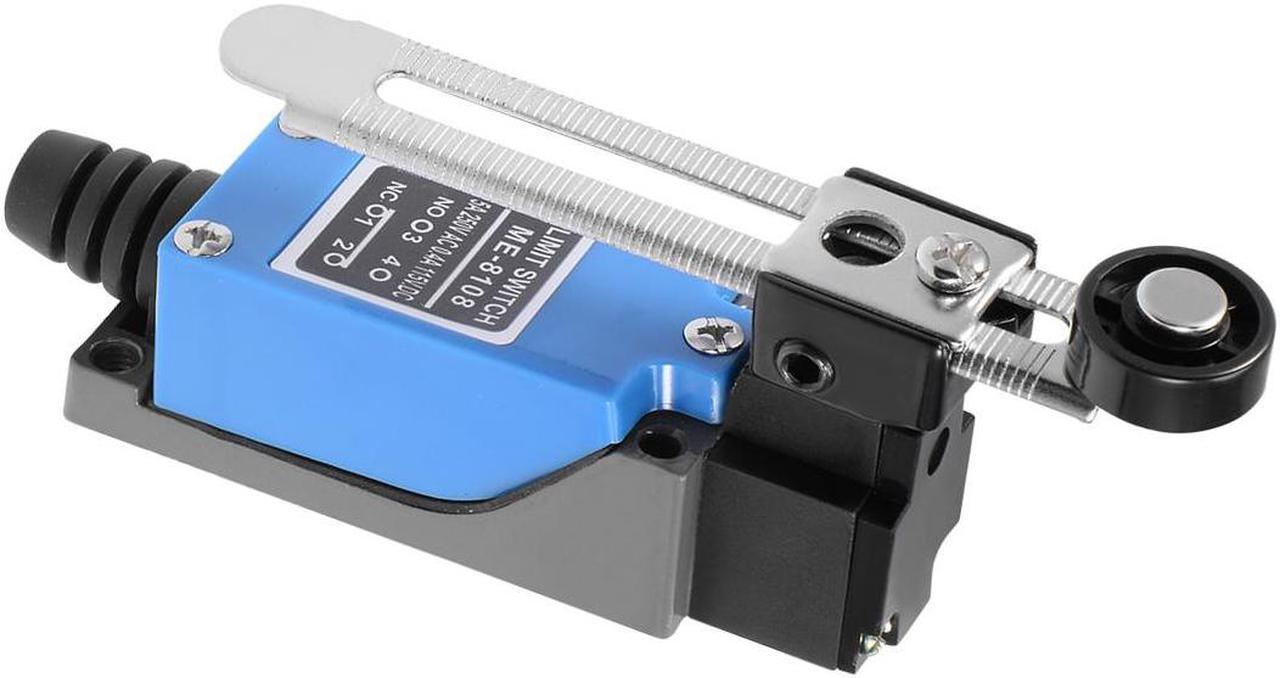

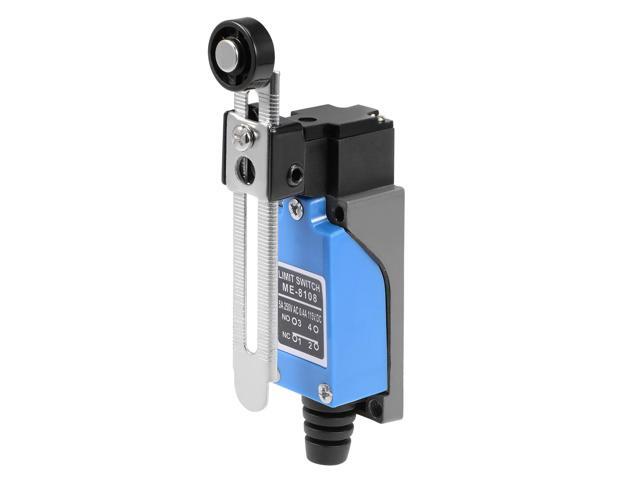

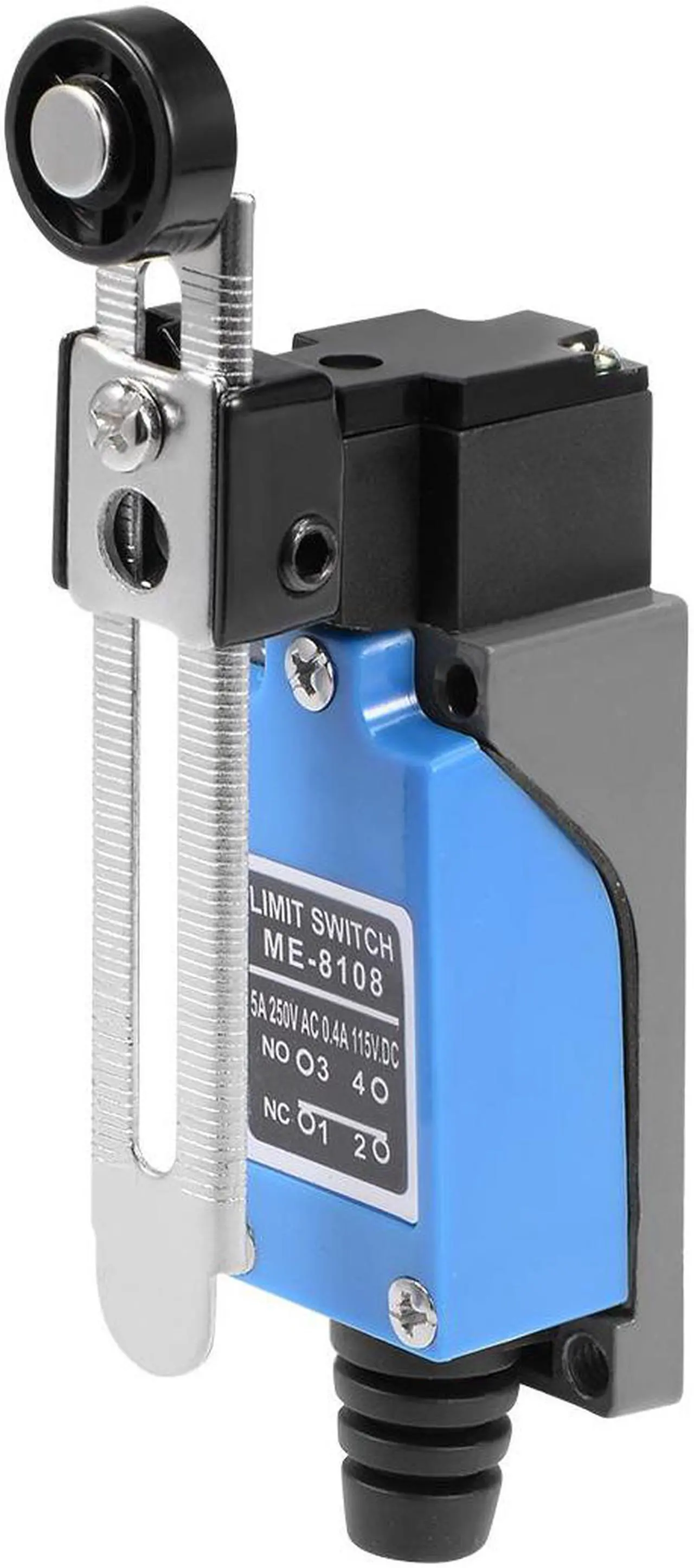

ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO
- Model: ME-8108; Plastic Wheel Adjustable Roller Lever;High quality built-in basic switch with good electrical conductivity;Able to withstand some washdowns, shock and vibration;
+
+
Overview
Specs
Reviews
Specification:
Product Name: Limit Switch
Model: ME-8108
Actuator Type: Plastic Wheel Adjustable Roller Lever Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC
Contact Configuration: 1NC+1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5

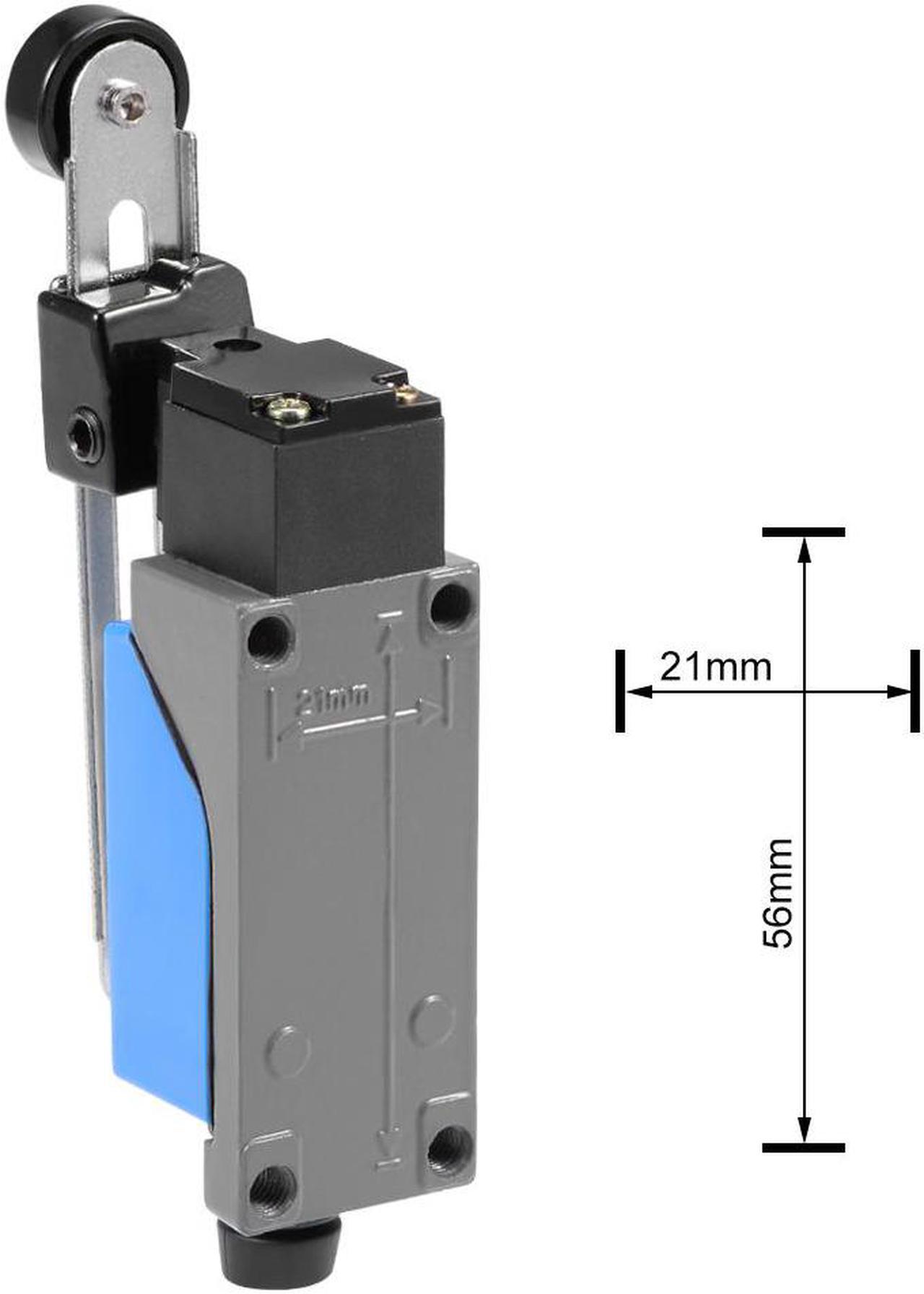

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)
The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.
These roller lever limit switches are applied to a wide range of applications including object positioning and detection.
The length of the lever is adjustable.
Operating Characteristics:
OF max.: 800g (7.84N)
RF min.: 60g (0.59N)
PT max.: 30°
OT min.: 60°
MD max.: 15°
TT: 90°
Description:
- Double circuit limit switch with build-in double reed mechanism.
- Zine alloy and intensive plastic shell, strong and hightly rigid construction.
- Smooth operation with highter OT.

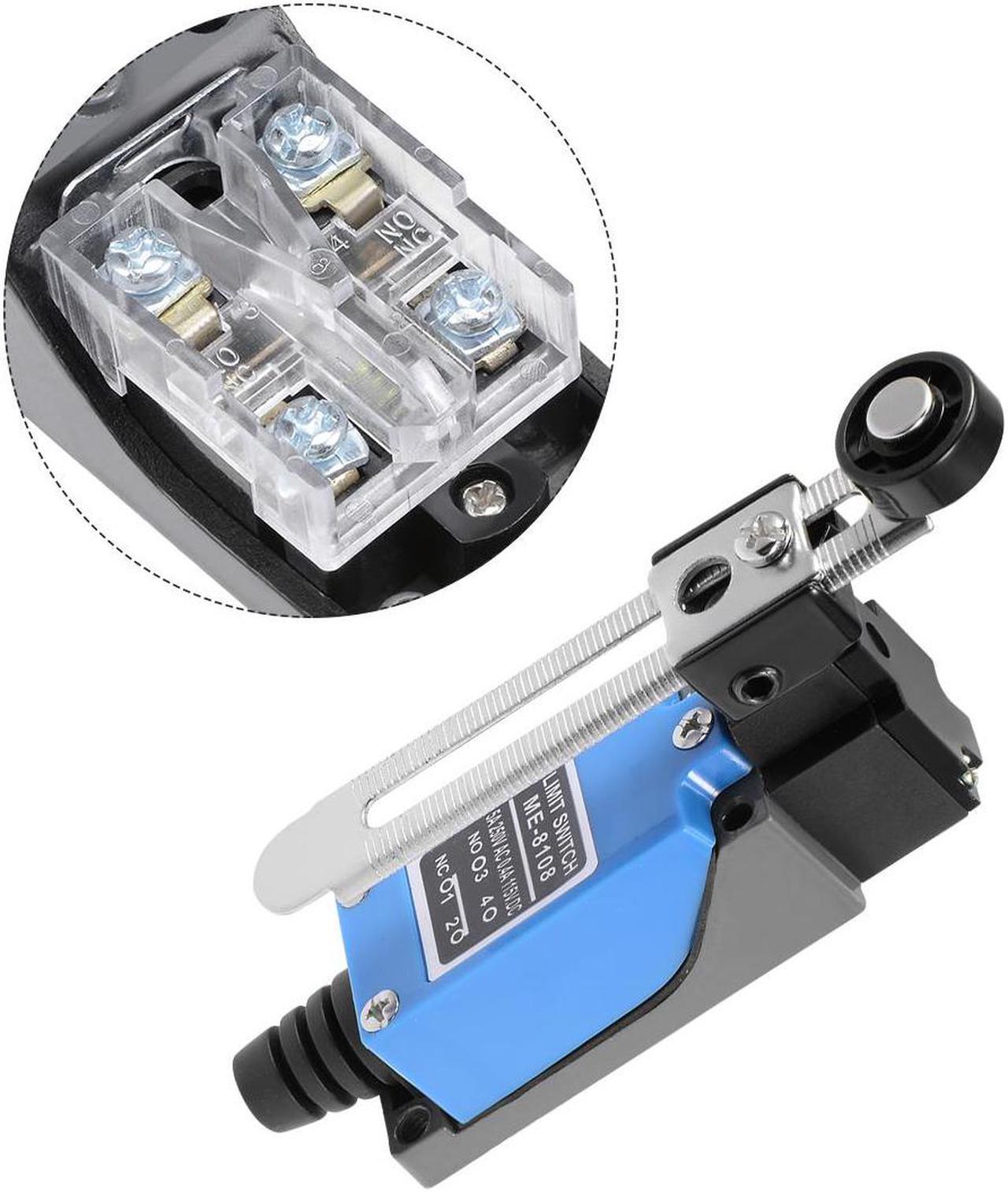

- Brass contacts with 30% silver contained. Easy-to-wire design.
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
