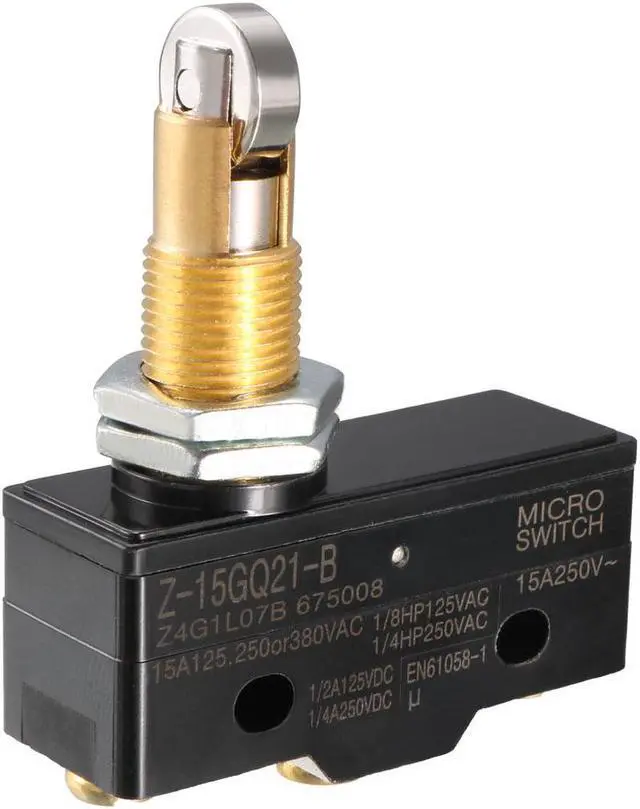

2PCS Z-15GQ21-B 1NO + 1NC Panel Mount Roller Plunger Micro Limit Switch, Screw Terminal
- Rating: 15A 125.250or380VAV. And the contact type is 1NO, 1NC.Applicable to AC DC control circuits.Reliable for years.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features:
Excellent accessibility, stable performance, practical and convenient
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.
Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.
KEY_TAB
Specification
Product Name: Micro Switch;
Model No.: Z-15GQ21-B;
Contact Type: 1NO, 1NC
Mounting Type: Panel Mount;
Actuator Type: Roller Plunger

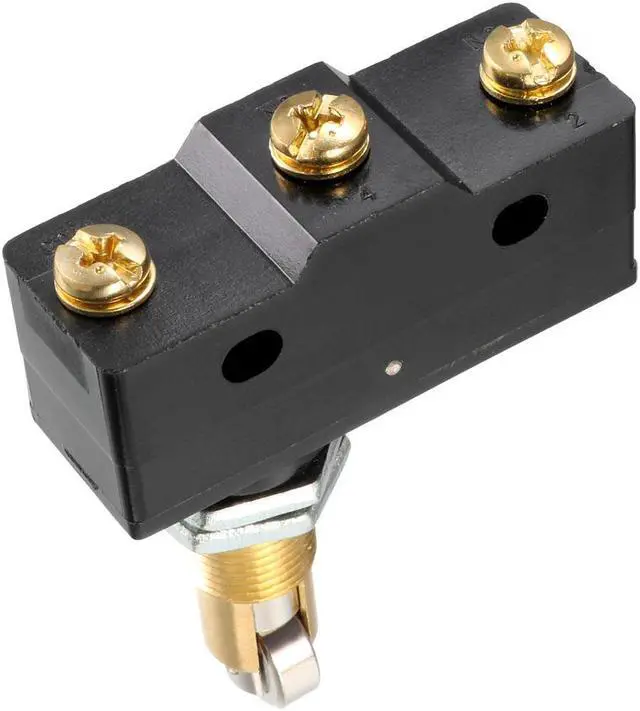

Termination Style: Screw Terminal;
Terminal Number: 3
Rating: 15A 125.250or380VAV; 1/8HP125VAC 1/4HP250VAC; 1/2A125VDC 1/4A250VDC
Protection degree: IP62
Overall Size: 61x50x18mm/2.4x1.97x0.71inch(L*W*H);
Thread Diameter: 12mm/0.47inch;
Net Weight : 107g;
KEY_TAB
Package Content

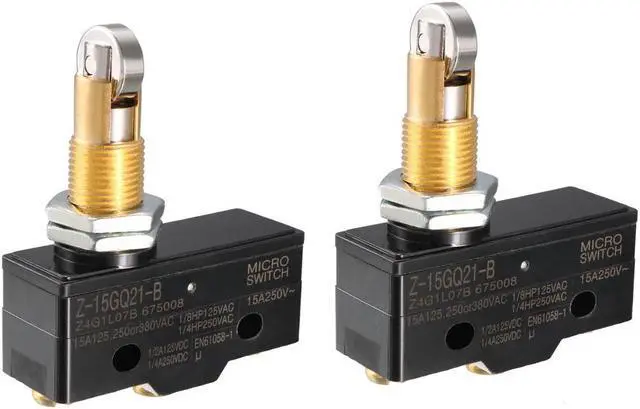

2 x Microswitch
