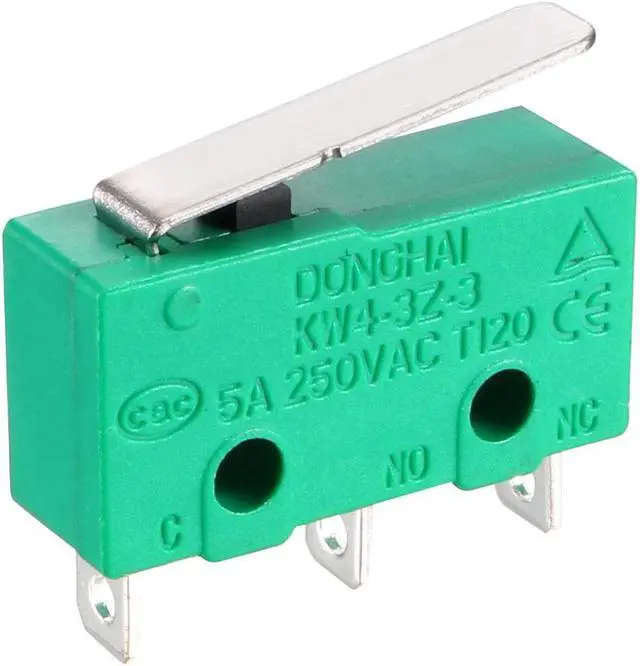

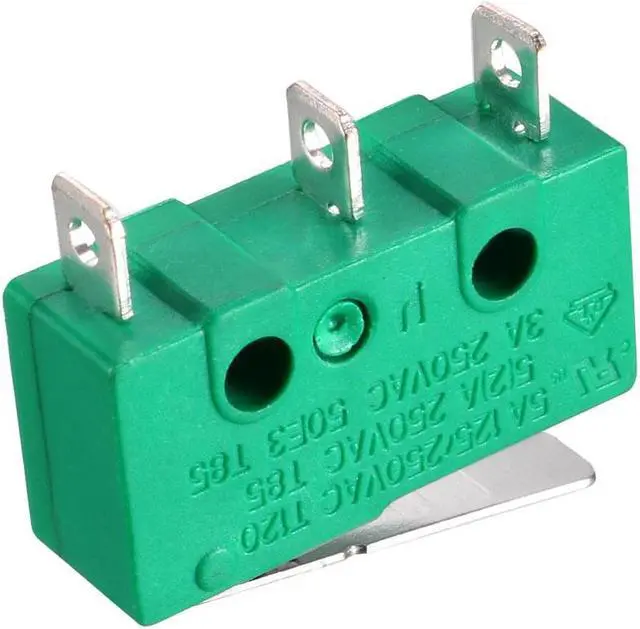

4PCS KW4-3Z-3 Micro Limit Switch SPDT NO NC 3 Terminals Momentary Short Straight Lever Type Green
- Rating Load: 5A/250VAC. And the contact type is SPDT NO+NC.3 pins, applicable to AC DC control circuits.Reliable for years.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Adopt thermosetting plastic or thermoplastic;
Offers long service and operations life.
Small contact gap, snap sction, high sensitivity and small operatng travel
Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
KEY_TAB
Specification
Rating Load: 5A/250VAC;
Operation speed: 0.1mm-1m/s
Contact resistance: 15m Ohm max. (initial)
Insulation resistance: 100m Ohm min. (at DC500V)
Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)
Operating temperature: -25~+80°C
Contact Form: SPDT NO+NC
Pin number: 3

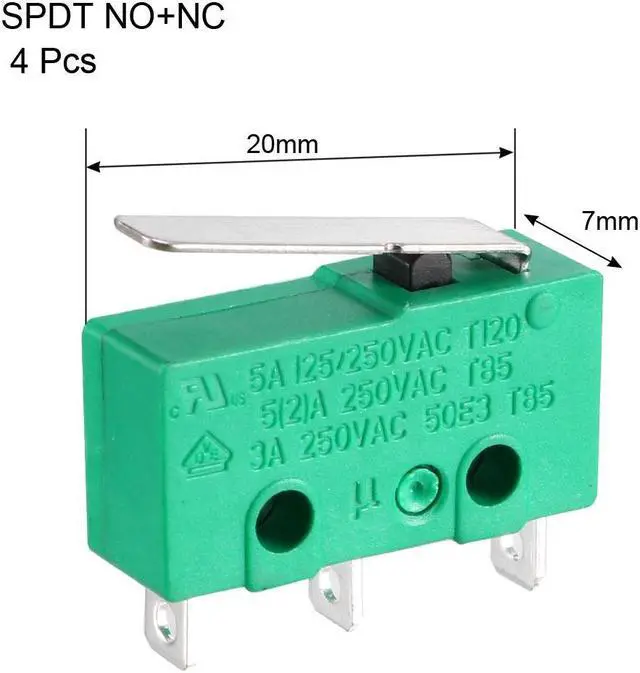

Overall size: 20x18x7mm/0.79x0.71x0.28inch(L*W*H)
Total weight: 8g
KEY_TAB
Package Content

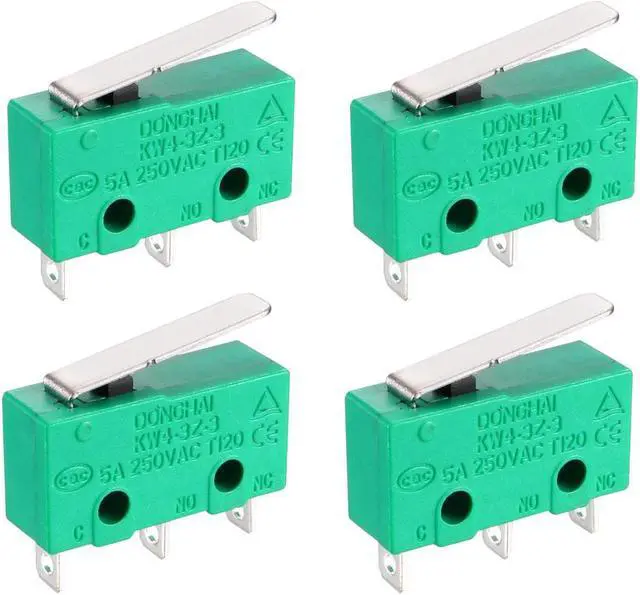

4 x Microswitch
