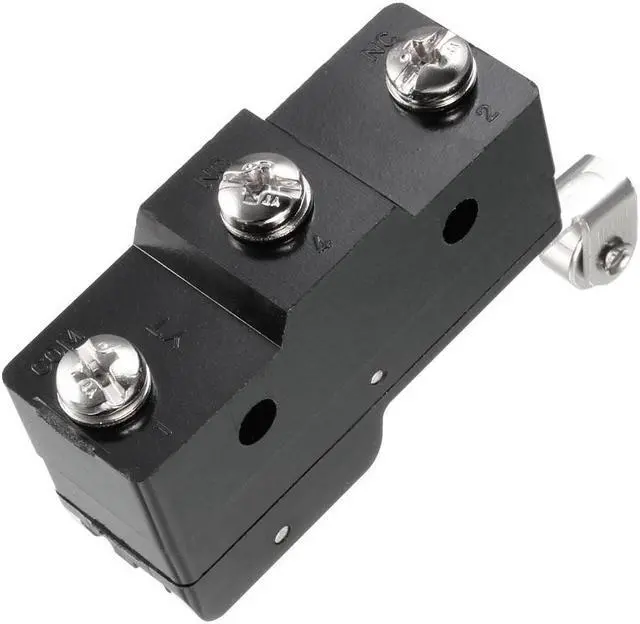

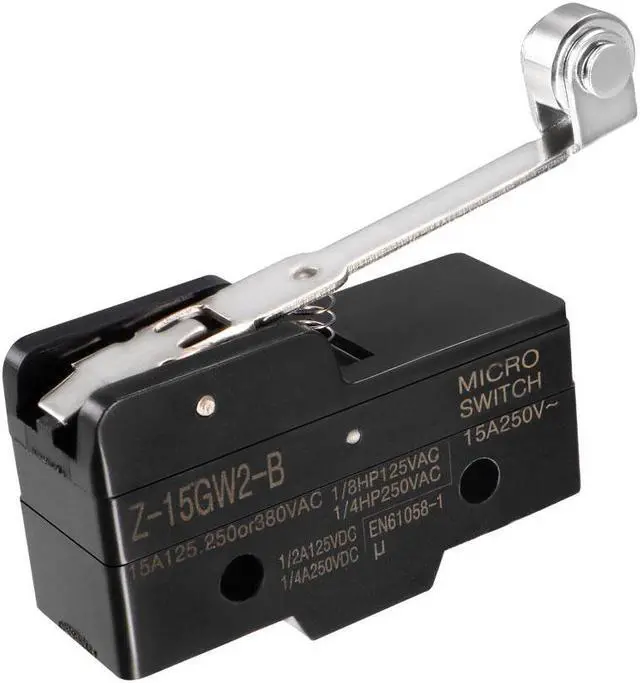

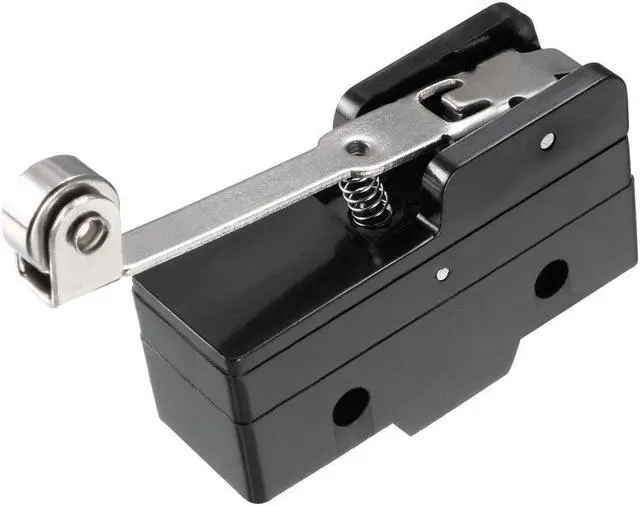

Z-15GW2-B 1NO + 1NC Long Hinge Roller Lever Micro Action Switch
- Rating: 15A 125.250or380VAV. And the contact type is 1NO, 1NC.Applicable to AC DC control circuits.Reliable for years.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Excellent accessibility, stable performance, practical and convenient
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.
Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.
KEY_TAB
Specification
Product Name: Micro Switch;
Model No.: Z-15GW2-B;
Contact Type: 1NO, 1NC
Termination Style: Screw Terminal;
Terminal Number: 3
Rating: 15A 125.250or380VAV; 1/8HP125VAC 1/4HP250VAC; 1/2A125VDC 1/4A250VDC
Protection Degree: IP62

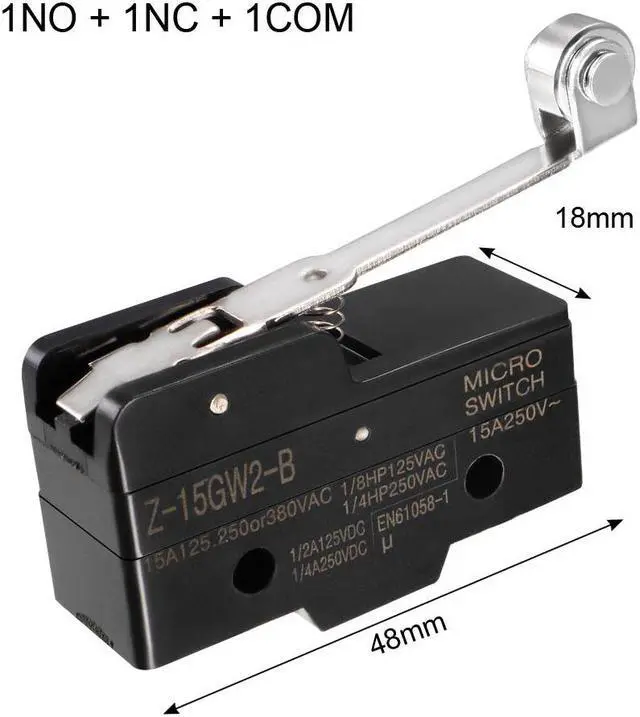

Overall Size: 63x48x18mm/2.48x1.89x0.71inch(L*W*H)
Net Weight : 37g;
KEY_TAB
Package Content
1 x Microswitch
