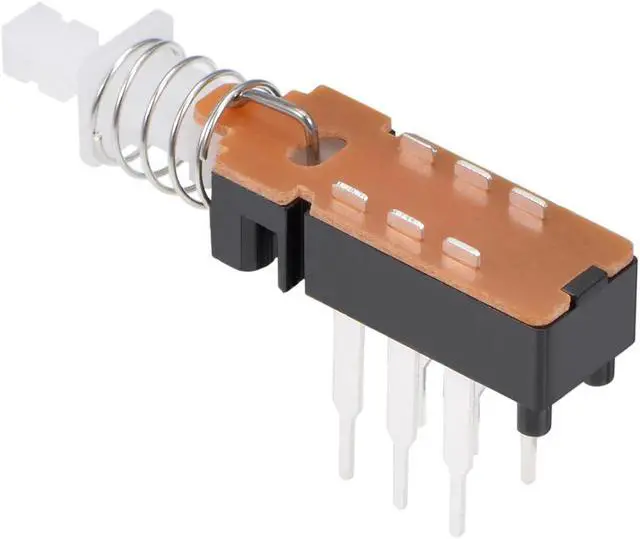

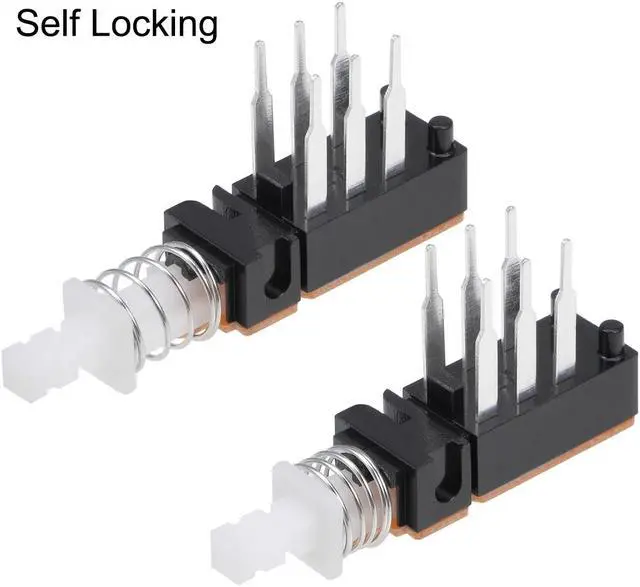

Push Button Switch DPDT 6 Pin 1 Position Self-Locking 10pcs
- [Standard] - DPDT 6 Pins 4mm Pitch 1 Position.[Latching Switch] - Self locking straight through hole miniature switch.[Features] - Mechanism design offers acute operation and long service life.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Material: Plastic, Metal
Switch Operation: Latching
Contact Configuration: DPDT
Terminal Type: Straight Through Hole
Pin Quantity: 6
Each Pin Pitch: 4mm
PositionKEY_TAB Quantity: 1

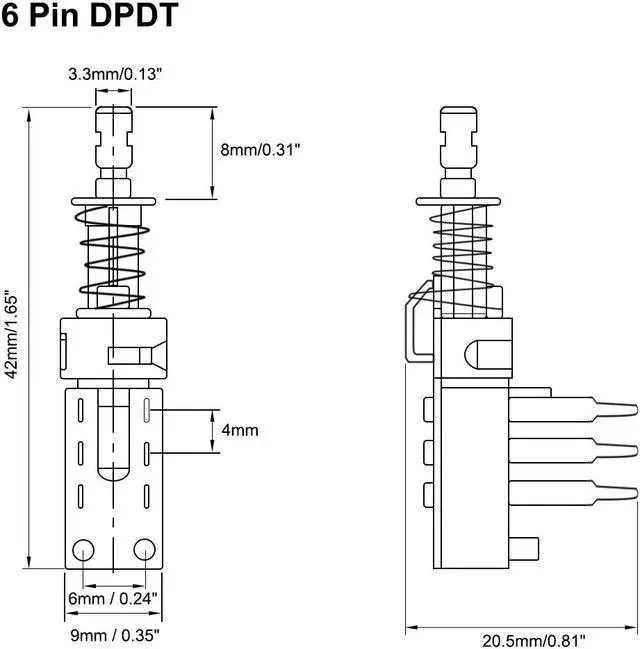

End Width: 9mm / 0.35-inch
Mounting Pillar Distance: 6mm / 0.24-inch
Cap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)
Overall Size: 42 x 9.5 x 20.5mm / 1.65-inch x 0.37-inch x 0.81-inch(L*W*H)
KEY_TAB
Package Contents:

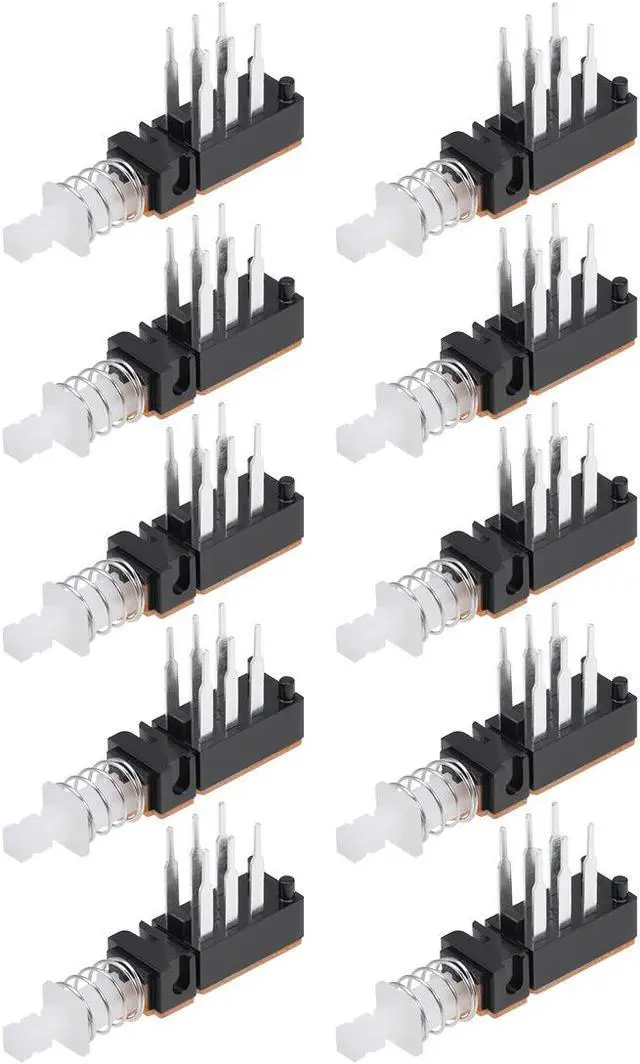

10pcs x Push Button Switch
KEY_TAB
Description:
Latching contact, 6 pins, DIP through hole mounting.
Used in the fields of electronic products, household appliances and more.
High precision mechanism design offers acute operation and long service life.
