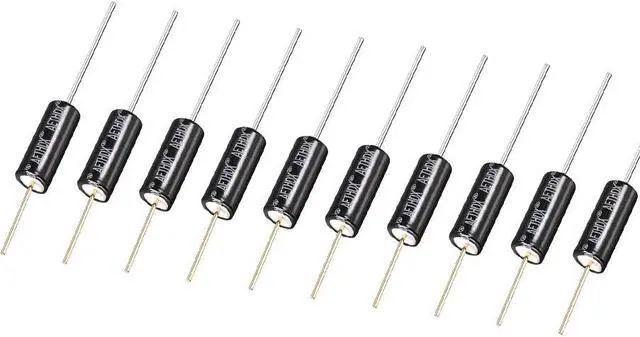

Electronic Vibration Sensor SW-460D Shake Detection Switch 5V 10mA 10Pcs

Description:

1.SW-460 is a metal ball tilt sensing single direction trigger switch.

2.This product is completely sealed and can be waterproof and dustproof. Suitable for tilting and vibration induction triggering of small current circuits.

3.Suitable for all kinds of toys, burglar alarms, shoe lights, electronic scales, luminous gifts and other electronic products.

Working Characteristics:

When the product is inclined to the conductive end (footless end) and the tilt angle is greater than 10 degrees, it is an open circuit OFF state; When the horizontal state of the product changes and the trigger end (gold-plated pin end) is lower than the horizontal tilt angle and greater than 10 degrees, it is a closed-circuit ON state.

When the product is placed horizontally, it can be triggered by shaking, and when the footless end is down, the shaking is not easy to trigger.

Specification:

Product Name: Vibration Switch

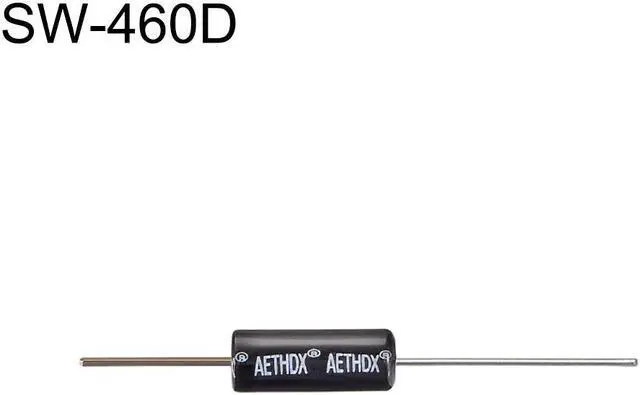

Model Number: SW-460D

Max.Voltage: 5V

Rated Thermal Current: 10mA

Insulation Resistance: 2000M ohm

Max.Temperature Resisting: 70?

Working Humidity: 80

Silver Tone Pin Size: 12mm x 0.6mm(L*D)

Gold Tone Pin Size: 19mm x 0.6mm(L*D)

Body Dimension: 12.5mm x 4.8mm(L*D)

Package Content:

10 x Vibration Switch
