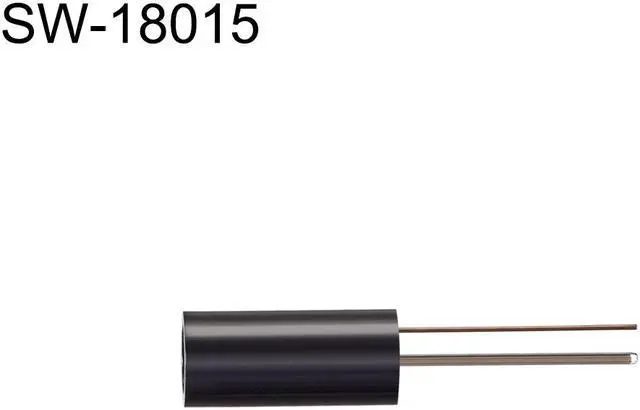

SW-18015 Sensitivity Spring Electronic Vibration Sensor Switch 20Pcs

Description:

1.Non-directional,turning on by any touching off angle.

2.Applied to the eletronic toys, small household appliance, sports equipmens and anti-theft devices.

3.Features high sensitivity, not sealed package, good performance and reliable.

4.In silent surroundings it keeps on turning off state with any angle, When it is hit by outside force and comes to the proper shaking state or the moving speed comes to the proper centric force, then the current leader point will display turning on state for a short time the electric character will be changerd, as the outside force disappears, it restores the turning off state.

KEY_TAB

Specification:

Product Name: Vibration Switch

Model Number: SW-18015

Sensitivity: Sensitivity

Max.Voltage: 12V

Rated Thermal Current: 5mA

Insulation Resistance: 10M ohm

Max.Temperature Resisting: 100

Pin Size: 10.5mm x 0.6mm(L*D)

Body Dimension: 10mm x 4.8mm(L*D)

KEY_TAB

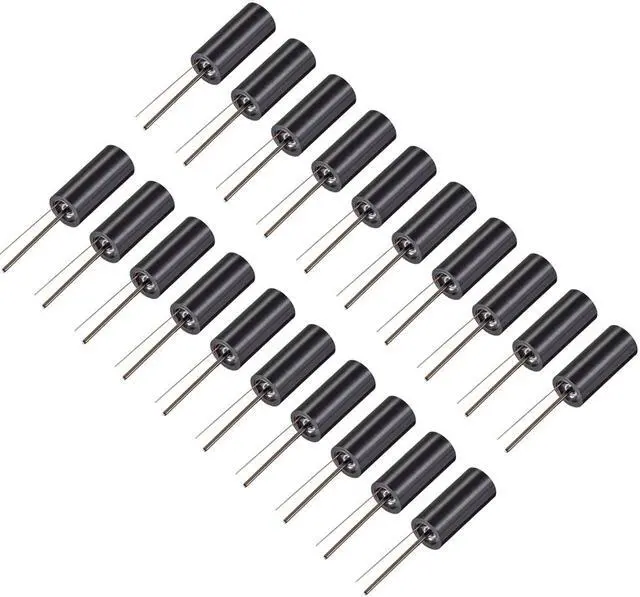

Package Content:

20 x Vibration Switch
