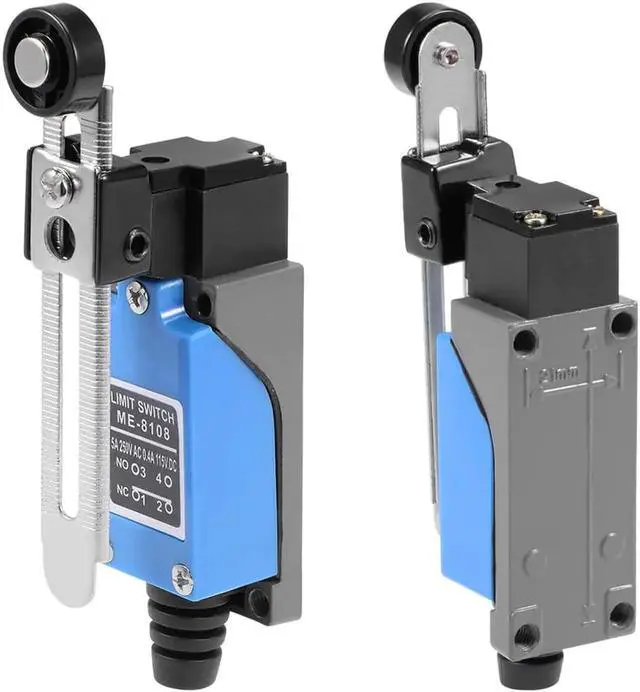

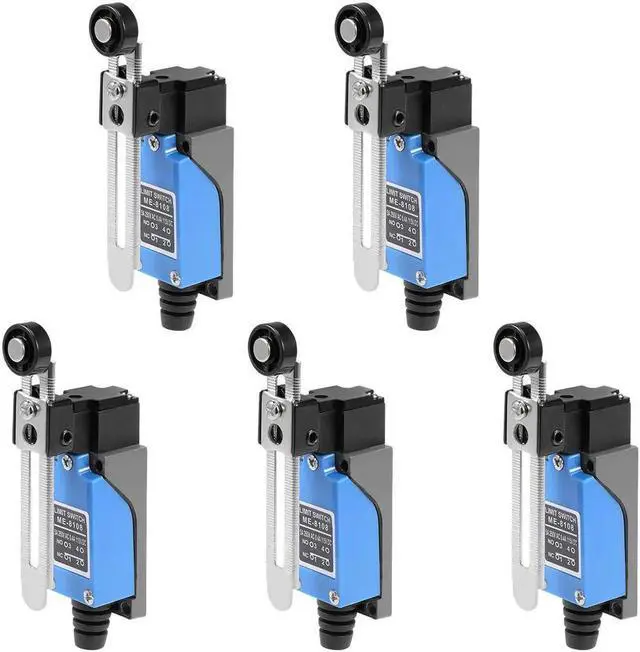

ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO 5Pcs
Limited time offer, ends 07/12 By EnYZME
- Model: ME-8108; Plastic Wheel Adjustable Roller Lever;High quality built-in basic switch with good electrical conductivity;Able to withstand some washdowns, shock and vibration;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
pecification:
Product Name: Limit Switch
Model: ME-8108
Actuator Type: Plastic Wheel Adjustable Roller Lever Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC
Contact Configuration: 1NC+1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5

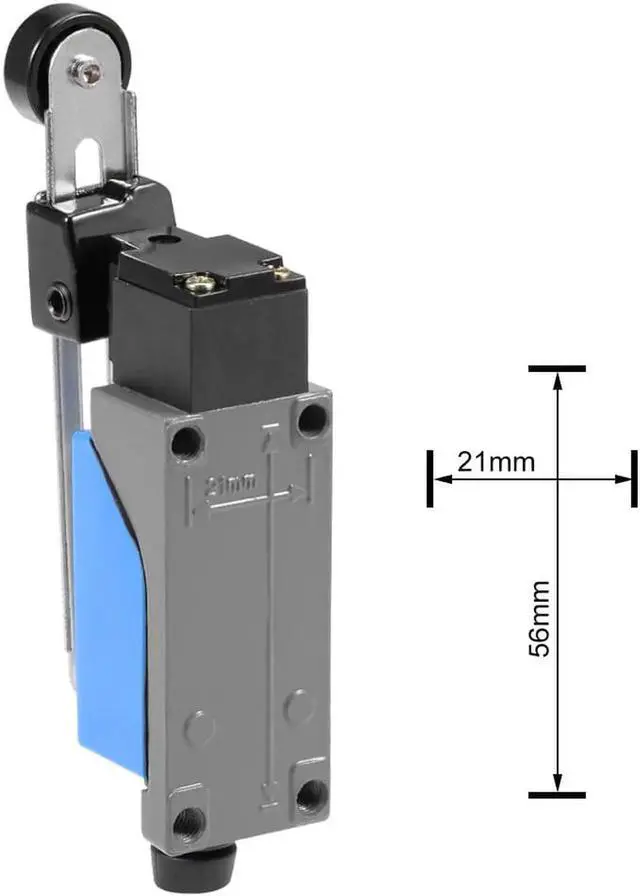

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)
The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.
These roller lever limit switches are applied to a wide range of applications including object positioning and detection.
The length of the lever is adjustable.
Operating Characteristics:
OF max.: 800g ( 7.84N )
RF min.: 60g ( 0.59N )
PT max.: 30°
OT min.: 60°
MD max.: 15°
TT: 90°
Description:
Double circuit limit switch with build-in double reed mechanism.
Zine alloy and intensive plastic shell, strong and hightly rigid construction.
Smooth operation with highter OT.

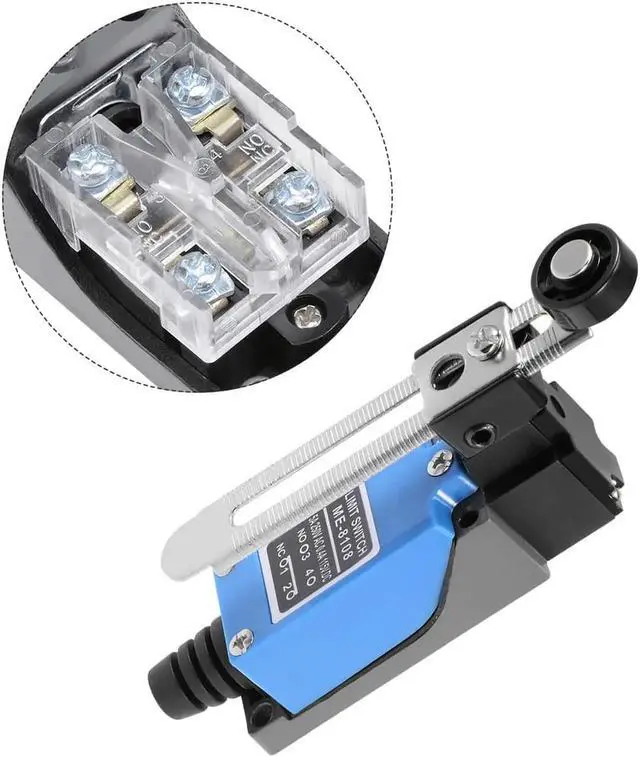

Brass contacts with 30% silver contained. Easy-to-wire design.
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Product Name: Limit Switch
Model: ME-8108
Actuator Type: Plastic Wheel Adjustable Roller Lever Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC
Contact Configuration: 1NC+1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5
Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)
The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.
These roller lever limit switches are applied to a wide range of applications including object positioning and detection.
The length of the lever is adjustable.
Operating Characteristics:
OF max.: 800g ( 7.84N )
RF min.: 60g ( 0.59N )
PT max.: 30°
OT min.: 60°
MD max.: 15°
TT: 90°
Description:
Double circuit limit switch with build-in double reed mechanism.
Zine alloy and intensive plastic shell, strong and hightly rigid construction.
Smooth operation with highter OT.
Brass contacts with 30% silver contained. Easy-to-wire design.
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
