KY-040 Rotary Encoder Module 360 Degree Switch Encoders with Knob Cap Brick Sensor Modules (Pack of 4pcs)
- KY-040 360 Degree Rotary Encoder Module with Knobs Cap.
- STANDARD SPECIFICATION: Working voltage: 5V; One round number of pulse: 20.
- EXCELLENT FEATURES: The rotary encoder can count the number of pulses output during forward and reverse rotation by rotating,and the number of rotations is not limited.
- MULTIPURPOSE: The rotary encoder is a great device for stepper and servo motor control-you could also use it to control devices like digital potentiometers.
- STURDY PACKAGING: 4Pcs rotary encoder comes in box-providing protection and easy storage.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

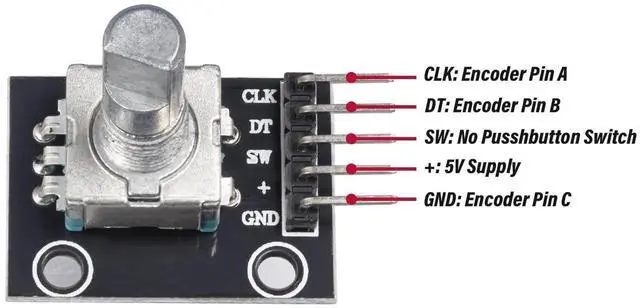

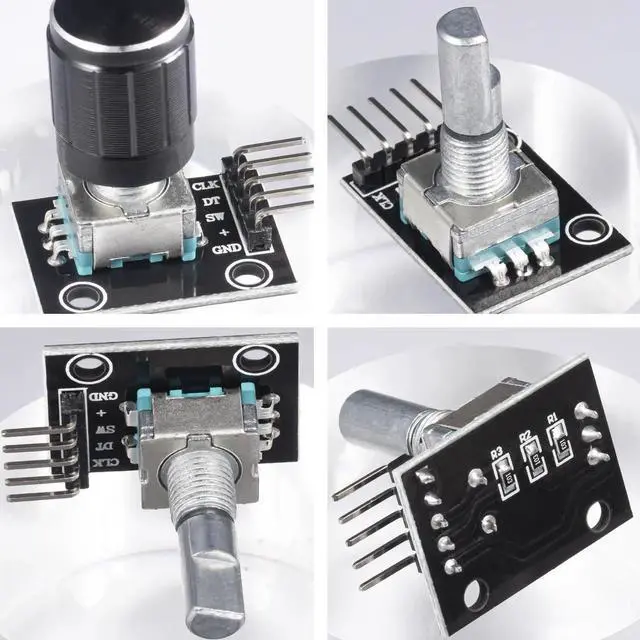

KY-040 Rotary Encoder Module
-The rotary encoder can count the number of pulse output during rotation in the positive direction and reverse direction through the rotation and this rotation counts are not limited.
-With the key on the rotary encoder, you can reset to the initial state, that is, counting from 0.
Specification:
Product model: KY-040
Working voltage: 5V
One round number of pulse: 20

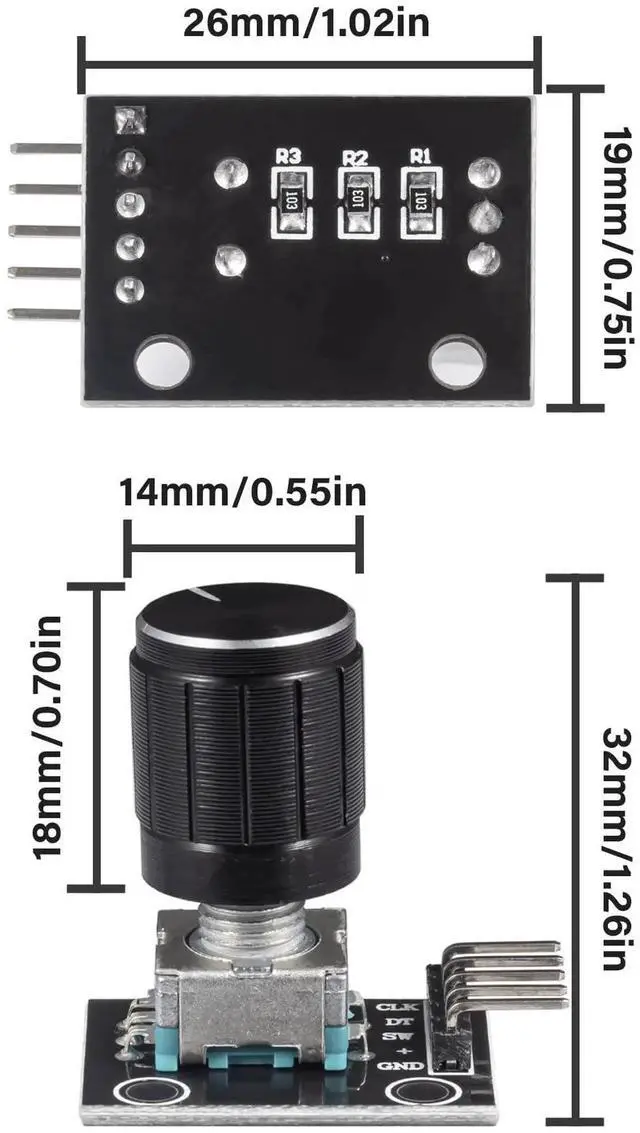

Diameter of knob cap: 15mm/0.59in
Height of knob cap: 16.5mm/ 0.65in
Widely Applications:
The KY-040 rotary encoder is a rotary input device (as in knob) that provides an indication of how much the knob has been rotated AND what direction it is rotating in. Its a great device for stepper and servo motor control. You could also use it to control devices like digital potentiometers.
-Compatible with Arduino/Raspberry Pi controller board.
Package List:

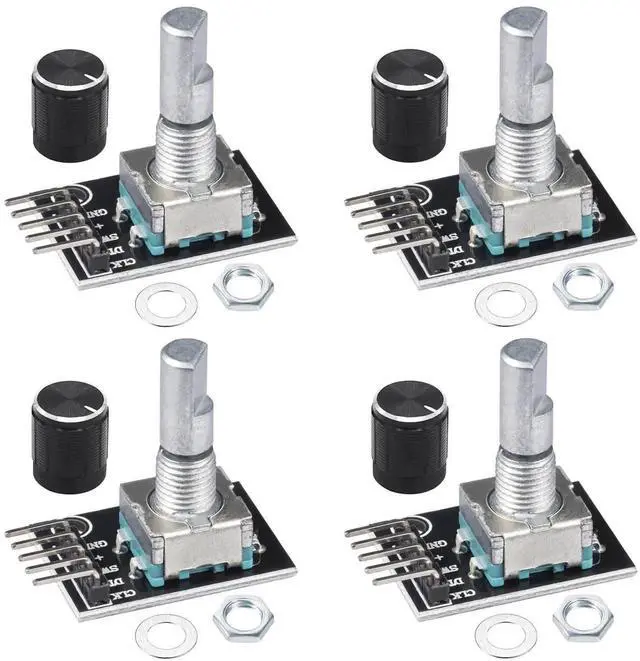

4 * KY-040 360 degree rotary encoder(knob, nut, washer included)
