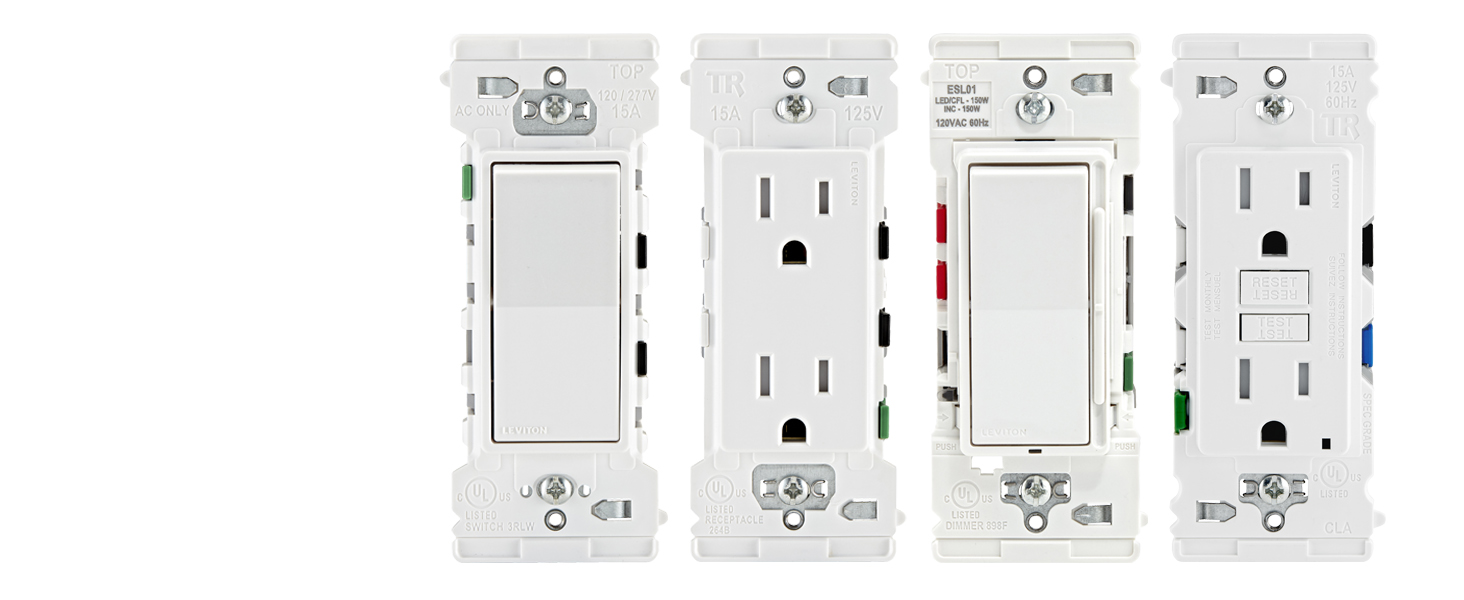

Explore Our Full Lever Edge Line!

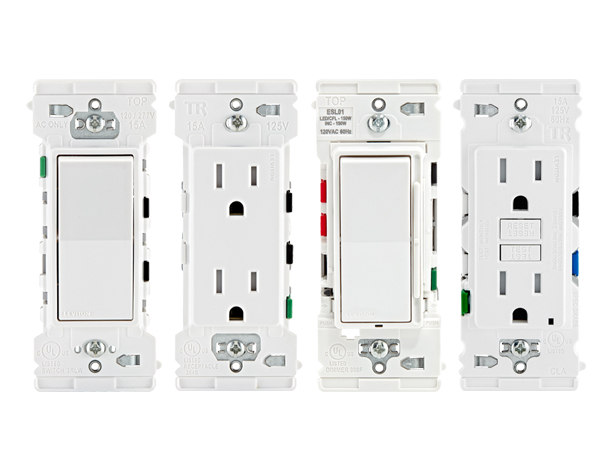

Check out our Lever Edge Switches, Outlets, GFCIs and Dimmer. We also have a full line of Lever Edge devices for commercial applications.

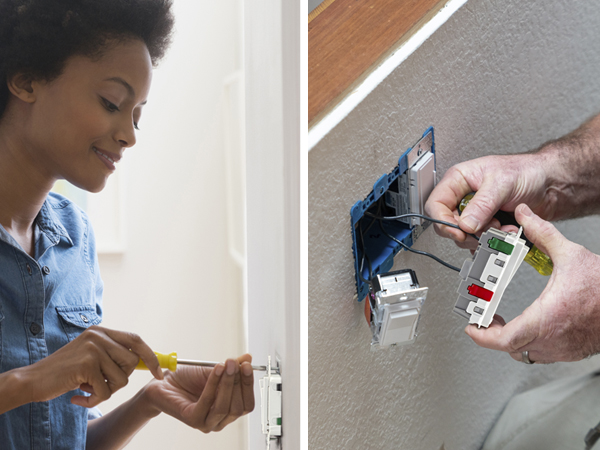

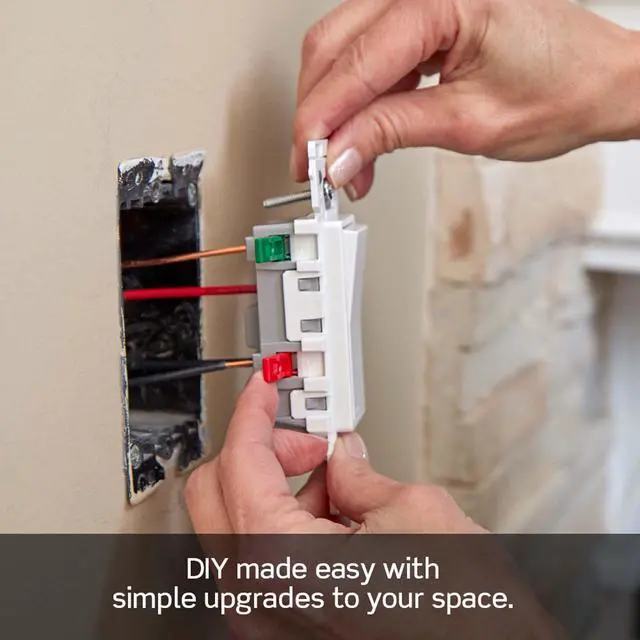

DIY and Contractor Friendly
Changing the way we wire with fast, safe, and easy-to-install design. Contractors can save time and money on the job.

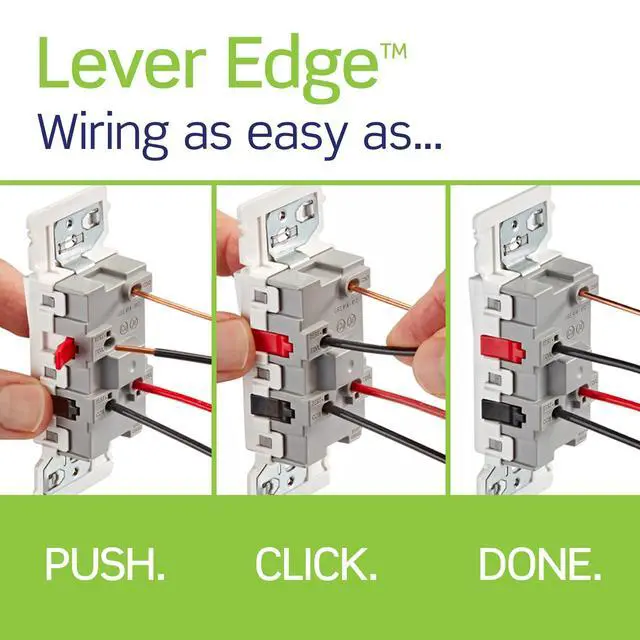

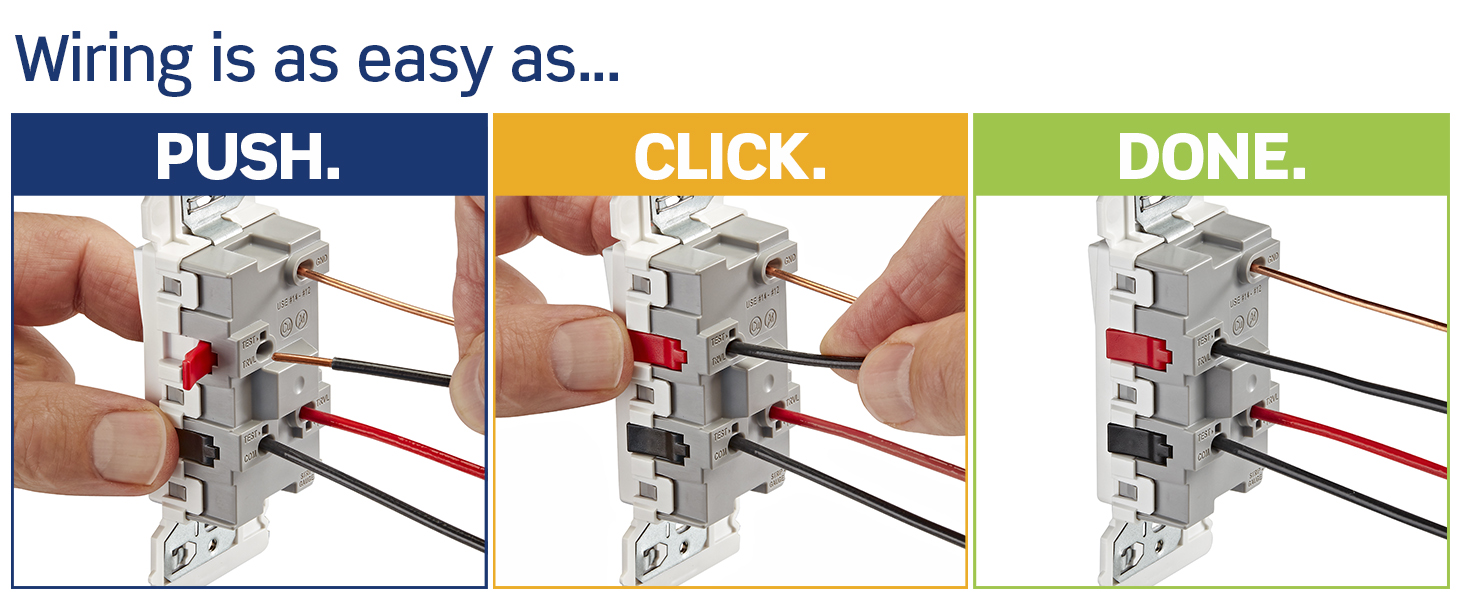

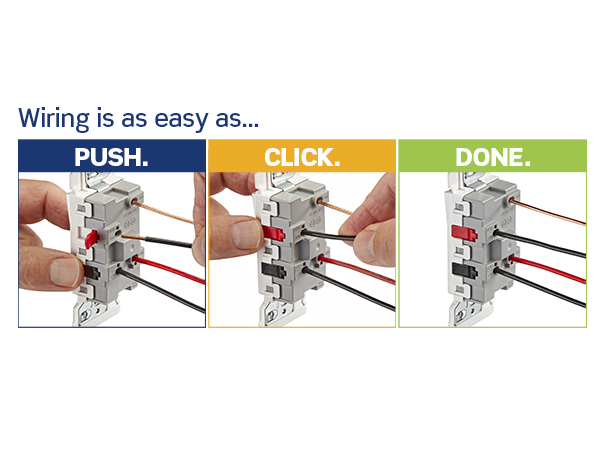

Decora Edge – Faster, Safer & Easier to Install. Just PUSH. CLICK & You’re DONE!
Lever Edge Video
Merchant VideoLeviton Lever Edge Products
 Lever Edge 3-Way Switch |  Lever Edge Switch |  Lever Edge 15A Outlet |  Lever Edge Dimmer |  Lever Edge 20A Outlet |  Lever Edge TR GFCI |  Lever Edge TR/WR GFCI | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Model Number | E5603 | E5601 | E5325 | ESL01 | E5825 | EGFT1 | EGFW1 |
Device Type | 3-Way Switch | Single Pole Switch | Tamper Resistant Outlet | LED Dimmer | Tamper Resistant Outlet | Tamper Resistant GFCI | Weather Resistant GFCI |
Load Rating | 15 Amp 120/277V | 15 Amp, 120/277V | 15 Amp, 125V | 150W, 120VAC | 20 Amp, 125V | 15 Amp, 125V | 15 Amp, 125V |
Works w/Wire Gauge | #14, #12 | #14, #12 | #14, #12 | #14, #12 | #12, #10 | #14, #12 | #14, #12 |
Circuit Tester Openings | Yes | Yes | No | Yes | No | Yes | Yes |
Top Feature | Quiet On/Off Rocker Switch | Quiet On/Off Rocker Switch | Tamper Resistant | Superior LED Dimming | Tamper Resistant | Self-Test | Self-Test |
Common Applications | Any Room | Any Room | Any Room | Den, Dining, Kitchen, Bedroom | Any Room | Bathroom, Garage, Basement | Outdoors |
What are Leviton Lever Edge devices?
Lever Edge is an innovative wiring device featuring a unique spring action clamp terminal. Install with confidence with simple to understand color coded levers, easy wire push in, and audible “click” confirming a secure connection.
Can the Lever Edge switch be re-wired if needed?
Yes, one advantage of Lever Edge devices is that the wires can be removed and terminated again.
Is the Lever Edge switch NEC compliant?
Yes, it is compliant with the National Electrical Code (NEC).
What wires can be used?
15 Amp lever connectors work with both 14 gauge and 12 gauge stranded and solid copper wire only, no aluminum or copper clad wire.
What termination is used for Residential Lever Edge switches?
A unique Spring Action Clamp terminal, where the stripped end of a conductor is inserted into the terminal and a manually operated integral lever applies clamping pressure to a spring mechanism, without the use of screws.

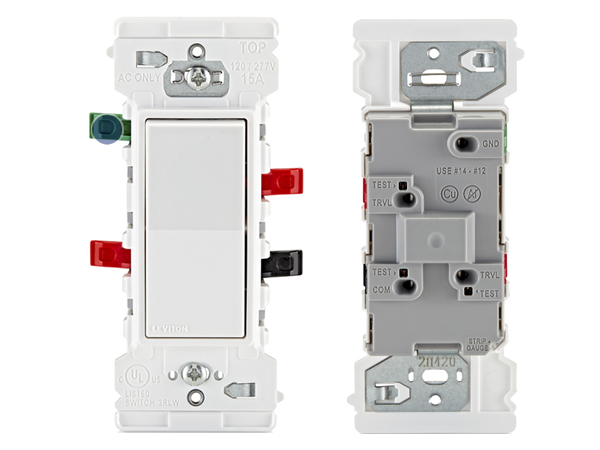

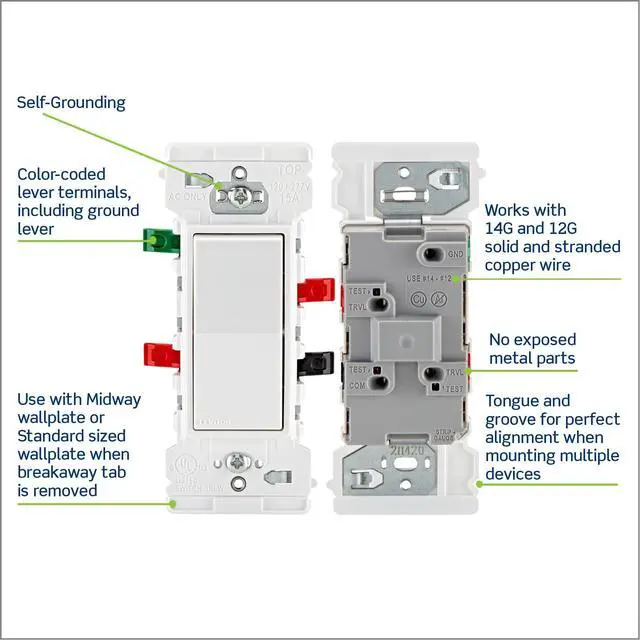

Self-Grounding Clip
Ensures the switch is grounded when installed in a grounded metal wallbox

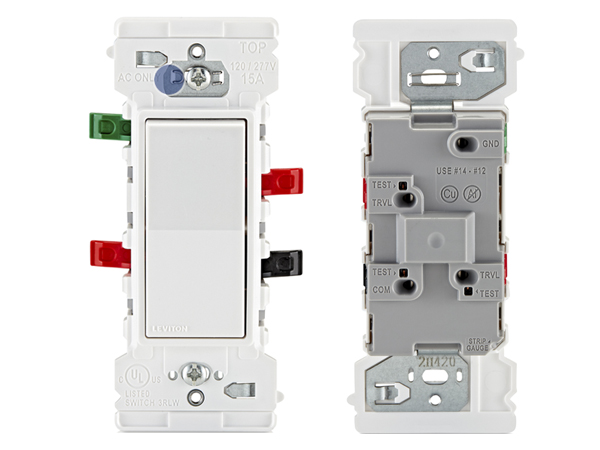

Color-Coded Lever Terminals
Including a lever for the ground wire, making installation a breeze
Breakaway Tabs
Larger strap makes installation easier when wallbox cut out is too large. Fins at top and bottom break off to install with a standard size wallplate

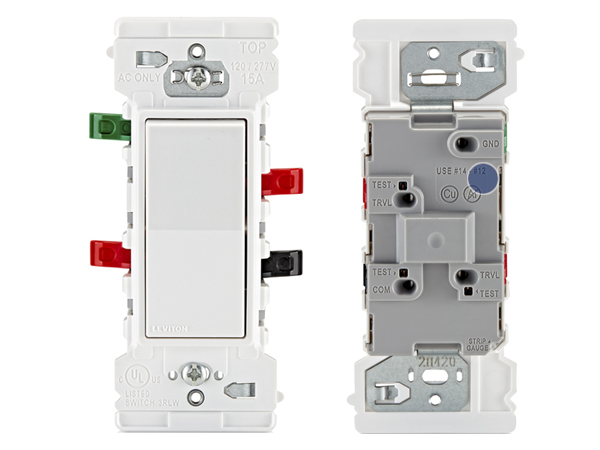

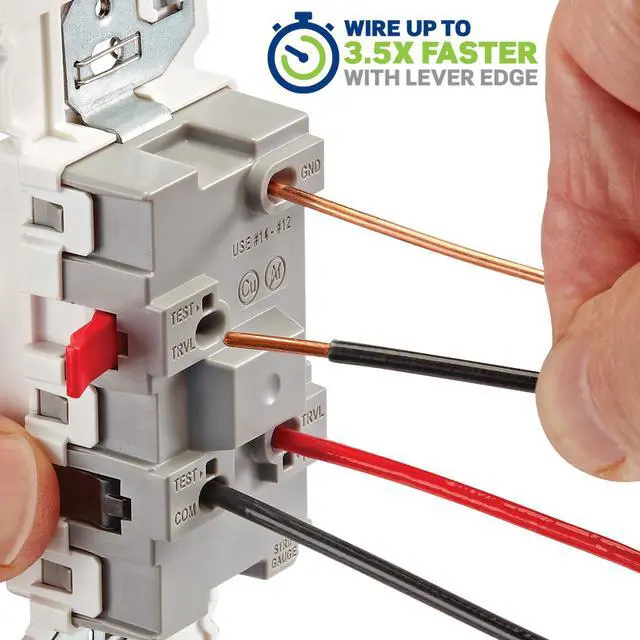

Lever Connectors
Works with 14G and 12G solid and stranded copper wire
No Exposed Metal Parts
Eliminates the need for electrical tape, tools, or torque adjustment
Tongue and Groove
For perfect alignment when mounting multiple Lever Edge devices next to each other in a wallbox
Explore Our Full Lever Edge Line!
DIY and Contractor Friendly
Check out our Lever Edge Switches, Outlets, GFCIs and Dimmer. We also have a full line of Lever Edge devices for commercial applications.
Changing the way we wire with fast, safe, and easy-to-install design. Contractors can save time and money on the job.
Decora Edge – Faster, Safer & Easier to Install. Just PUSH. CLICK & You’re DONE!
Lever Edge Video
Merchant VideoLeviton Lever Edge Products
Lever Edge 3-Way Switch | Lever Edge Switch | Lever Edge 15A Outlet | Lever Edge Dimmer | Lever Edge 20A Outlet | Lever Edge TR GFCI | Lever Edge TR/WR GFCI |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Model Number | ||||||
| E5603 | E5601 | E5325 | ESL01 | E5825 | EGFT1 | EGFW1 |
| Device Type | ||||||
| 3-Way Switch | Single Pole Switch | Tamper Resistant Outlet | LED Dimmer | Tamper Resistant Outlet | Tamper Resistant GFCI | Weather Resistant GFCI |
| Load Rating | ||||||
| 15 Amp 120/277V | 15 Amp, 120/277V | 15 Amp, 125V | 150W, 120VAC | 20 Amp, 125V | 15 Amp, 125V | 15 Amp, 125V |
| Works w/Wire Gauge | ||||||
| #14, #12 | #14, #12 | #14, #12 | #14, #12 | #12, #10 | #14, #12 | #14, #12 |
| Circuit Tester Openings | ||||||
| Yes | Yes | No | Yes | No | Yes | Yes |
| Top Feature | ||||||
| Quiet On/Off Rocker Switch | Quiet On/Off Rocker Switch | Tamper Resistant | Superior LED Dimming | Tamper Resistant | Self-Test | Self-Test |
| Common Applications | ||||||
| Any Room | Any Room | Any Room | Den, Dining, Kitchen, Bedroom | Any Room | Bathroom, Garage, Basement | Outdoors |
What are Leviton Lever Edge devices?
Lever Edge is an innovative wiring device featuring a unique spring action clamp terminal. Install with confidence with simple to understand color coded levers, easy wire push in, and audible “click” confirming a secure connection.
Can the Lever Edge switch be re-wired if needed?
Yes, one advantage of Lever Edge devices is that the wires can be removed and terminated again.
Is the Lever Edge switch NEC compliant?
Yes, it is compliant with the National Electrical Code (NEC).
What wires can be used?
15 Amp lever connectors work with both 14 gauge and 12 gauge stranded and solid copper wire only, no aluminum or copper clad wire.
What termination is used for Residential Lever Edge switches?
A unique Spring Action Clamp terminal, where the stripped end of a conductor is inserted into the terminal and a manually operated integral lever applies clamping pressure to a spring mechanism, without the use of screws.
