DC 12V 10A Relay Switch 1CH Wireless Remote Control Switch 433MHz Transmitter Receiver Momentary
433 MHz RF signal & Through-wall signal
Frequency: 433Mhz
Working Way: 1 Channels
Support encoding: 1527 learning code
Receiving sensitivity: > 97dbm
Working temperature: -30 ~ + 80
Reception range: The open space is more than 50 meters

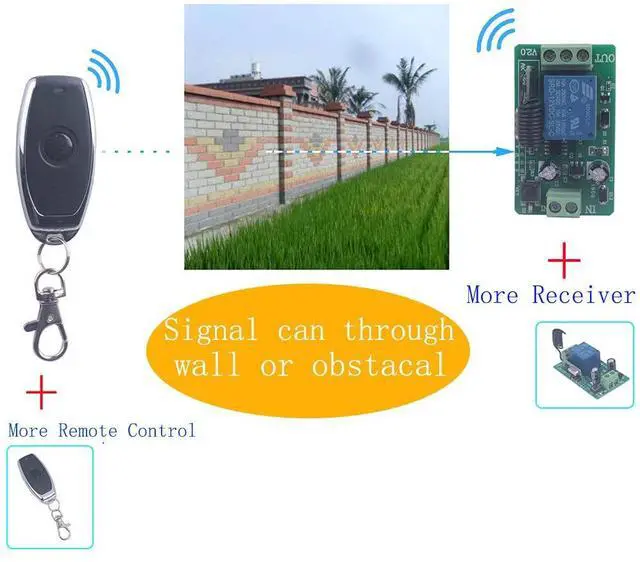

RF Signals: can pass through obstacles.

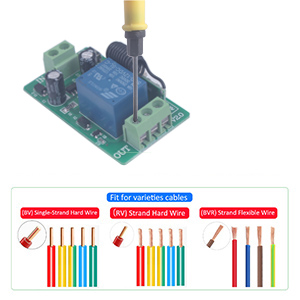

Simplified Wiring&Suitable for variety wires
It can simplify circuit remote control and save wiring costs.
Receiver:
Channel:1CH
Decode: Fixed code, soldering
Power Supply (Operating Voltage): DC 12V
Range of Relay Load: DC/AC 1V-250V
Sensitivity: -105 dBm
Operating Temperature: -40'C~+80'C
Widely Use
The Wireless switch Relay can Universal used many Home or Industry in Circuit ,and Electronic product ,like TV,Lights,Lamp,Fans,LED,Computer,Door,Motor Car

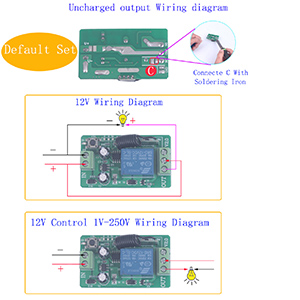

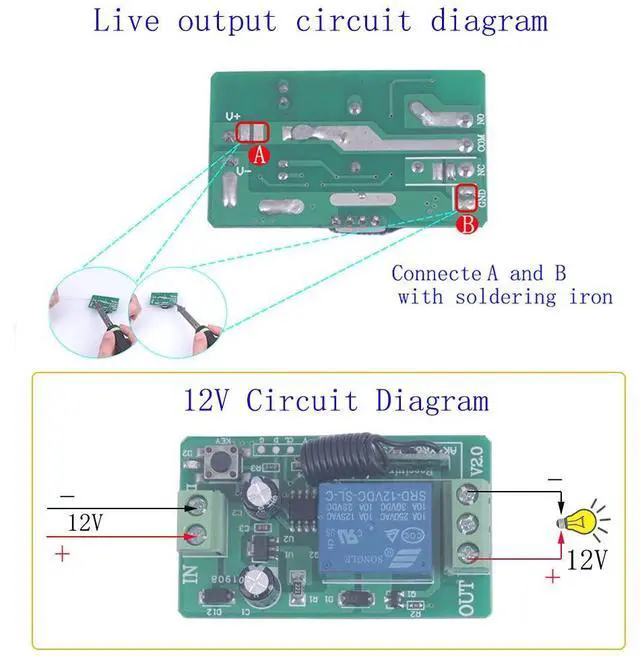

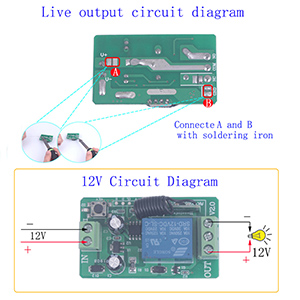

12V Control 12V/1V-250V Wiring Diagram
DC 12V Wiring Diagram

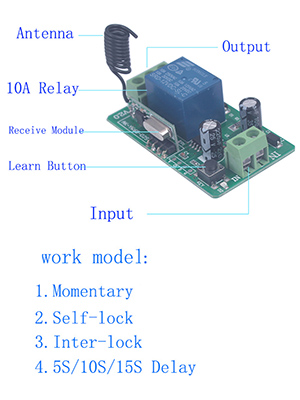

Multiple Working Modes

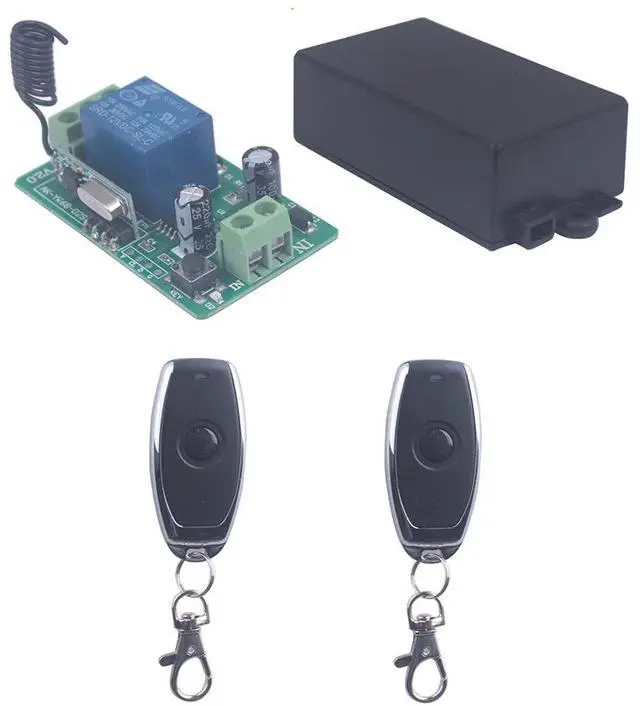

Package
2 x Remoter control transmitter (battery Included )
1 x 12V Switch receiver
1X Manual

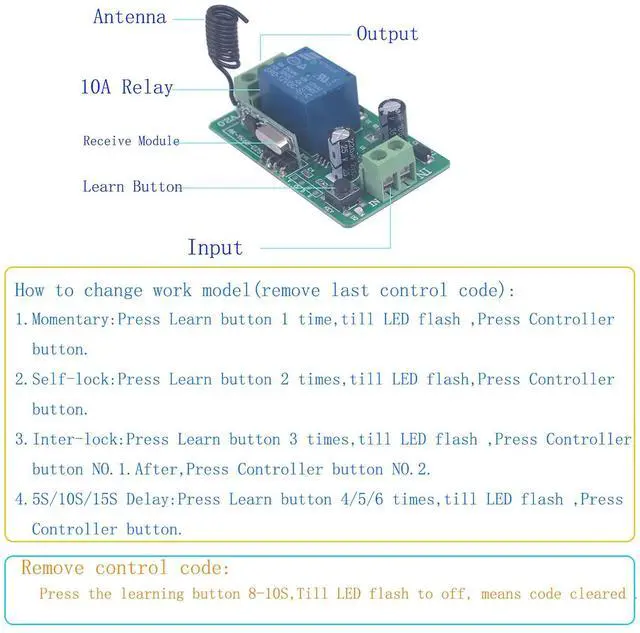

433MHz Transmitter Receiver Momentary/Toggle Switch 12V
working model:
1). Momentary.
2). Self-lock/toggle.
3). Inter-lock.
4). 5s/10s/15s delayed off.
- Compatible control code: Press the Learn button 1~6 times, choose which model you need, then press the controller key.
- Remove Control Code: Press the learning button 8-10s, till LED flashes to off, which means the control code is cleared.
Application scenario
 DC 3.3V 3.5V 3.7V 5V 12V 1A Micro Wireless Remote Control Relay Switch Moment... |  Mini 4V-12V 5V 6V 2 Channel Relay Remote Switch Wireless Remote Control Learn... |  12V 24V 36V 2CH Universal Garage Door Remote Switch 433Mhz Wide Range Motor F... |  Wireless Remote Relay Switch DC 12V-48V 24V 36V 2 Channel Multi-Function Remo... |  433mhz 12V DC 6 Channel Wireless Remote Control Relay Switch 12V Remote Relay... |  DC 12V 6 Channel Wireless Remote Control Switch 433MHz Transmitter and Receiv... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Work Voltage | DC 3.3V-12V | DC 4V-12V | DC 12V-36V | DC 12V-48V | DC 12V | DC 12V |
| Channels | 1 CH | 2 CH | 2 CH | 2 CH | 6 CH | 6 CH |
DC 12V 10A Relay Switch 1CH Wireless Remote Control Switch 433MHz Transmitter Receiver Momentary
433 MHz RF signal & Through-wall signal
Frequency: 433Mhz
Working Way: 1 Channels
Support encoding: 1527 learning code
Receiving sensitivity: > 97dbm
Working temperature: -30 ~ + 80
Reception range: The open space is more than 50 meters
RF Signals: can pass through obstacles.
Simplified Wiring&Suitable for variety wires
It can simplify circuit remote control and save wiring costs.
Receiver:
Channel:1CH
Decode: Fixed code, soldering
Power Supply (Operating Voltage): DC 12V
Range of Relay Load: DC/AC 1V-250V
Sensitivity: -105 dBm
Operating Temperature: -40'C~+80'C
Widely Use
The Wireless switch Relay can Universal used many Home or Industry in Circuit ,and Electronic product ,like TV,Lights,Lamp,Fans,LED,Computer,Door,Motor Car
Multiple control circuit for Different Application Scenarios

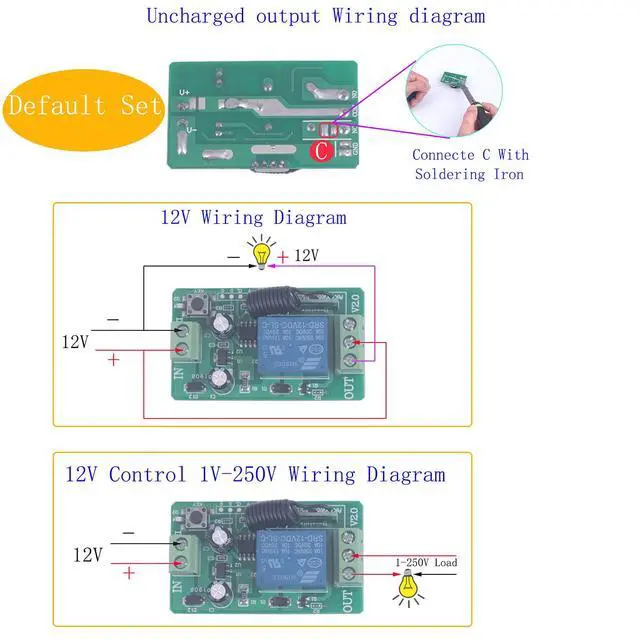

Different Wiring Diagram for wide applications
433MHz Transmitter Receiver Momentary/Toggle Switch 12V

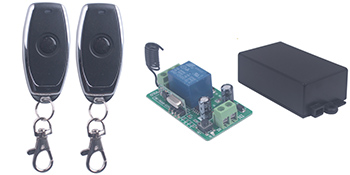

Package
2 x Remoter control transmitter (battery Included )
1 x 12V Switch receiver
1X Manual
Multiple Working Modes
working model:
1). Momentary.
2). Self-lock/toggle.
3). Inter-lock.
4). 5s/10s/15s delayed off.
- Compatible control code: Press the Learn button 1~6 times, choose which model you need, then press the controller key.
- Remove Control Code: Press the learning button 8-10s, till LED flashes to off, which means the control code is cleared.
Application scenario
DC 3.3V 3.5V 3.7V 5V 12V 1A Micro Wireless Remote Control Relay Switch Moment... | Mini 4V-12V 5V 6V 2 Channel Relay Remote Switch Wireless Remote Control Learn... | 12V 24V 36V 2CH Universal Garage Door Remote Switch 433Mhz Wide Range Motor F... | Wireless Remote Relay Switch DC 12V-48V 24V 36V 2 Channel Multi-Function Remo... | 433mhz 12V DC 6 Channel Wireless Remote Control Relay Switch 12V Remote Relay... | DC 12V 6 Channel Wireless Remote Control Switch 433MHz Transmitter and Receiv... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Work Voltage | DC 3.3V-12V | DC 4V-12V | DC 12V-36V | DC 12V-48V | DC 12V | DC 12V |
| Channels | 1 CH | 2 CH | 2 CH | 2 CH | 6 CH | 6 CH |
