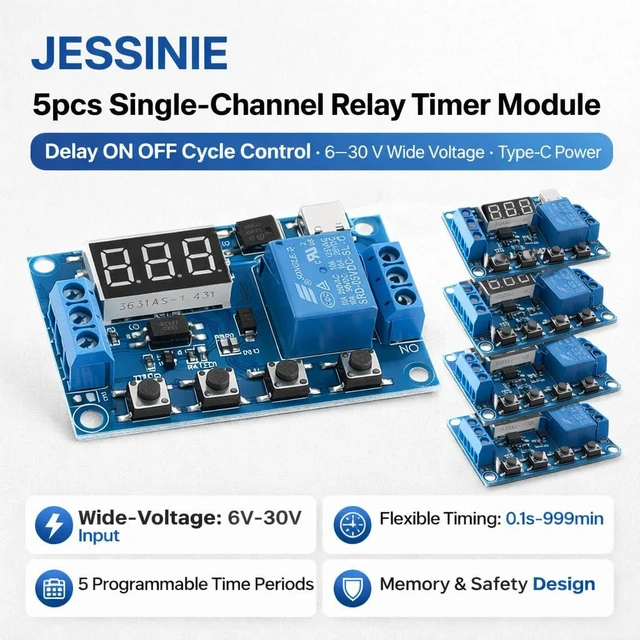

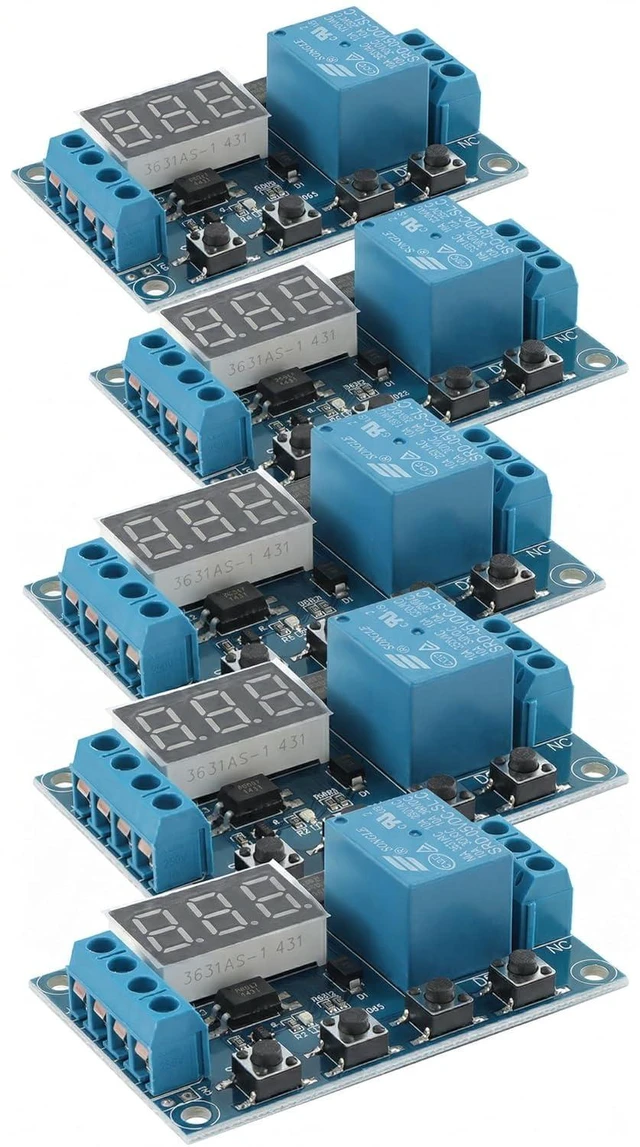

5pcs SingleChannel Relay Timer Module, Delay ON Off Cycle Control, 630 V Wide Voltage, TypeC Power

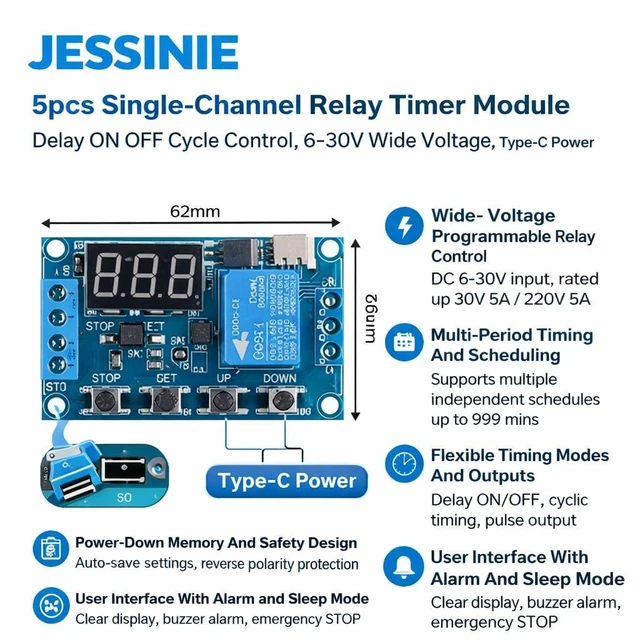

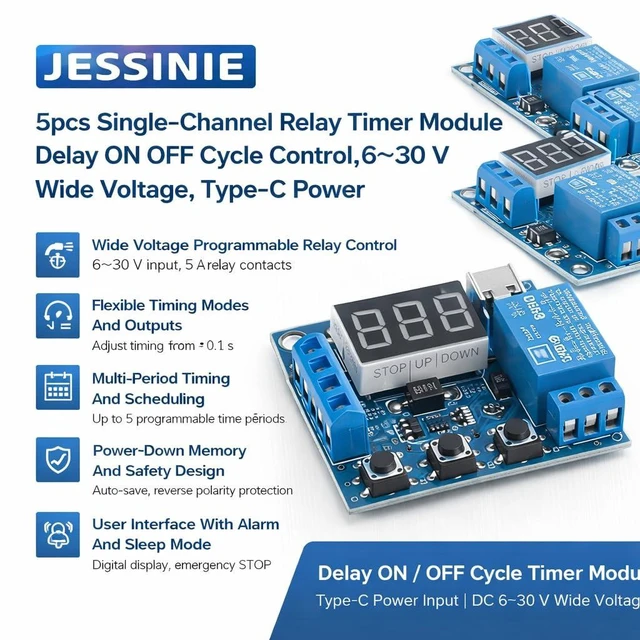

- WideVoltage Programmable Relay Control Programmable relay timer module with DC 6 V to 30 V widevoltage input; supports highlevel trigger from 3.0 V to 24 V; passive relay contacts rated up to DC 30 V 5 A or AC 220 V 5 A; suitable for flexible control circuits; MultiPeriod Timing And Scheduling Supports up to 5 independent time periods PE1 to PE5; each period can be enabled, disabled, or assigned different timing modes; allows daily, datebased, or rangebased schedules; ideal for complex timing tasks in control panels; Flexible Timing Modes And Outputs Timing range adjustable from 0.1 s to 999 min; supports delay ON, delay OFF, cyclic timing, and pulse output modes; relay can latch or output 1 s pulses; parameters OP, CL, and LOP are independent and easy to configure; PowerDown Memory And Safety Design All parameters are automatically saved after power loss; optocoupler isolation improves noise immunity; reverse polarity protection prevents damage from incorrect wiring; passive relay output ensures safe switching without internal voltage output; User Interface With Alarm And Sleep Mode Clear digital display with simple button operation; builtin buzzer alarm can be enabled or muted; emergency STOP key allows instant relay ON or OFF; automatic sleep mode turns off display after 5 minutes of inactivity, any key wakes it up
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Overview Programmable Digital Relay Timer Module with widevoltage input and TypeC interface. Supports multiperiod timing, delay ON/OFF, cycle control, pulse output, buzzer alarm, sleep mode, and powerdown memory. Suitable for automation, control panels, and DIY timing applications.
1.
Product Parameters Module Type: Programmable relay timer switch
Supply Voltage: DC 630 V (wide voltage)
Trigger Level: Highlevel trigger 3.024 V
Timing Range: 0.1 s to 999 min adjustable
Time Periods: Up to 5 independent periods (PE1 to PE5)
Relay Output: Passive contact, NO/NC control
Load Capacity: DC 30 V 5 A / AC 220 V 5 A
Output Modes: Latch or 1 s pulse
Isolation: Optocoupler isolation
Alarm: Builtin buzzer, enable/disable
Memory: Poweroff parameter retention
Sleep Mode: Auto display off after 5 min inactivity
Interface: USB TypeC (power only)
2. Pin / Terminal
Function Description IN+: DC power input positive
IN: DC power input negative
TRIG: Highlevel trigger input
COM: Relay common terminal
NO: Relay normally open contact
NC: Relay normally closed contact
3. Common Questions & Answers (FAQ)
Q1: Can I set multiple time schedules?
A1: Yes, up to five independent time periods can be programmed.
Q2: Does it support delay ON and delay OFF?
A2: Yes, both delay ON, delay OFF, and cyclic timing are supported.
Q3: Is the relay output powered?
A3: No, it is a passive contact for switching external circuits.
Q4: Will settings be lost after power off?
A4: No, all parameters are automatically saved in memory.
Q5: Can it work as an alarm only?
A5: Yes, when the relay is disabled, it can function as a timer alarm.
