3Pcs 6-30V DC 5V Micro USB Dual Power Input Logic LCD Display Programmable Timer Relay Modules

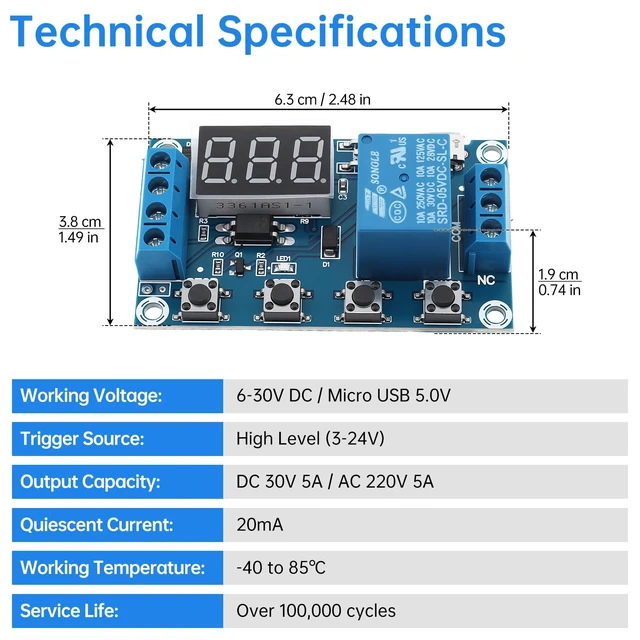

Parameter Information:
Working Voltage: 6-30V DC / Micro USB 5.0V
Trigger Source: High Level (3-24V)
Output Capacity: DC 30V 5A / AC 220V 5A
Quiescent Current: 20mA
Working Temperature: -40 to 85
Service Life: Over 100,000 cycles Place of Application:
Industrial automation equipment control
DIY electronic timing circuit projects
Motor cycling testing and aging
Smart home lighting delay systems Note:
- Terminal Torque Management: Use the included Cross Screwdriver to secure wires firmly; however, avoid excessive force to prevent stripping the terminal threads or damaging the circuit board traces.

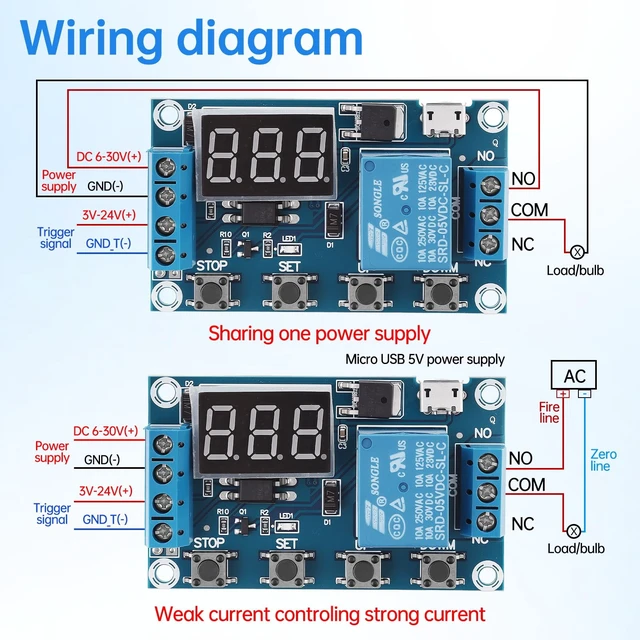

- Passive Contact Logic: Note that the relay output is a dry contact without voltage. It functions strictly as a mechanical switch to connect or disconnect an external power line.
- Load Limit Adherence: Confirm that the connected hardware does not exceed the 5A current rating. Using loads beyond this capacity may result in contact failure or internal damage.
- Environment Shielding: Since this is an open - frame module, mount the unit within a protective housing to prevent exposure to conductive debris or moisture that could cause shorts.
Package Include:

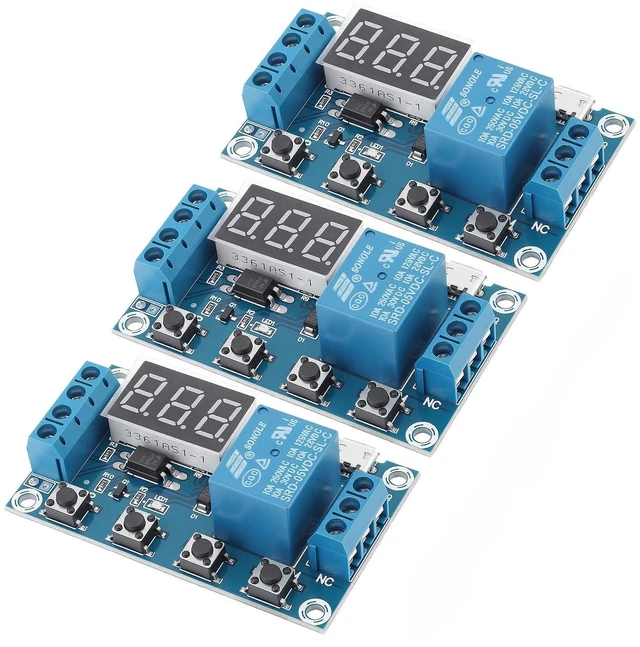

3 x Timer Relay Modules
1 x Cross Screwdriver
