Vszerda 3pcs 5V ESP8266 Dual WiFi Relay Module Internet Of Things Smart Home Mobile APP Remote Switch - OEM

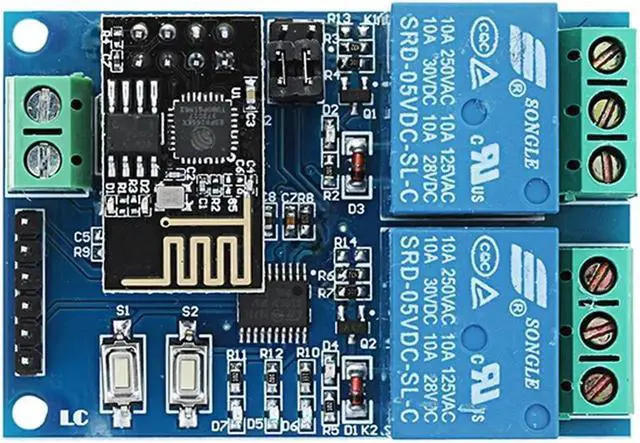

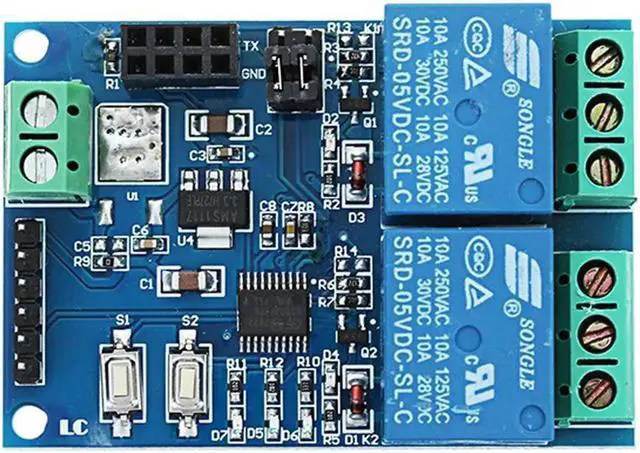

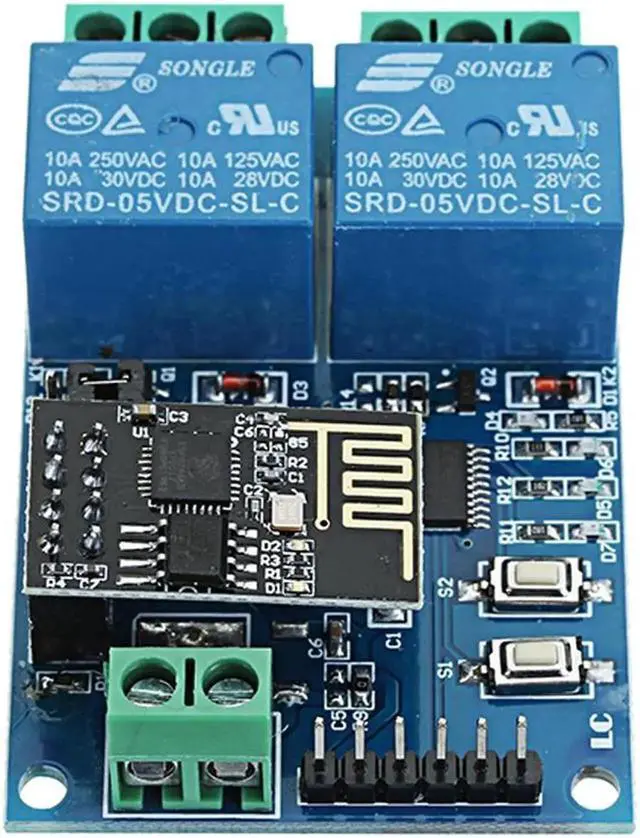

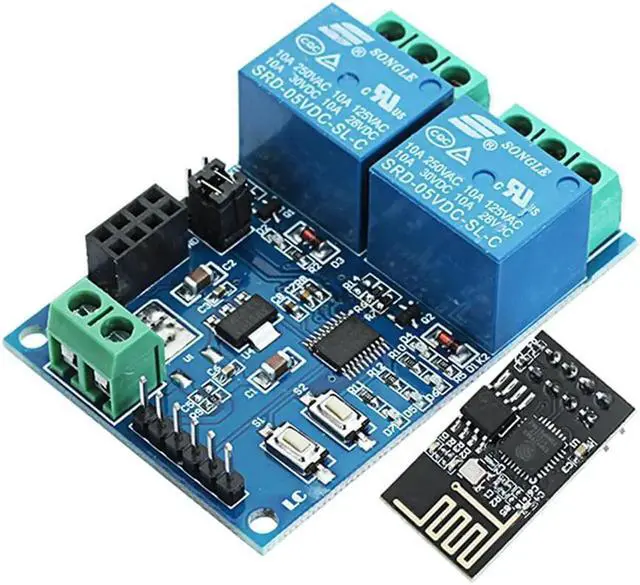

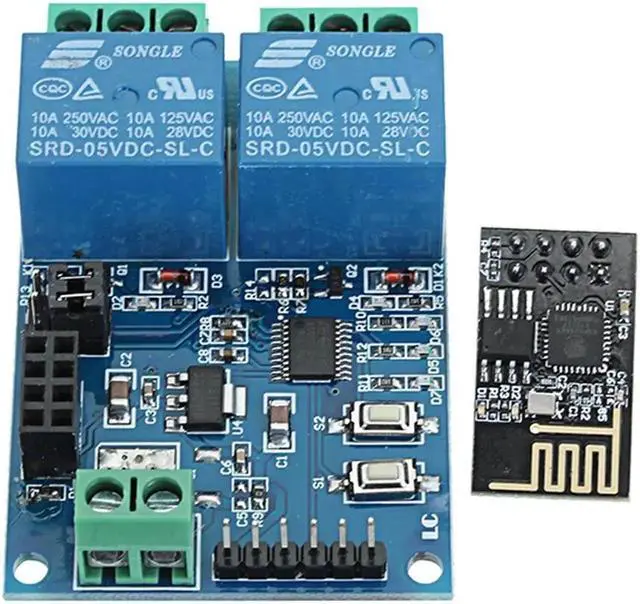

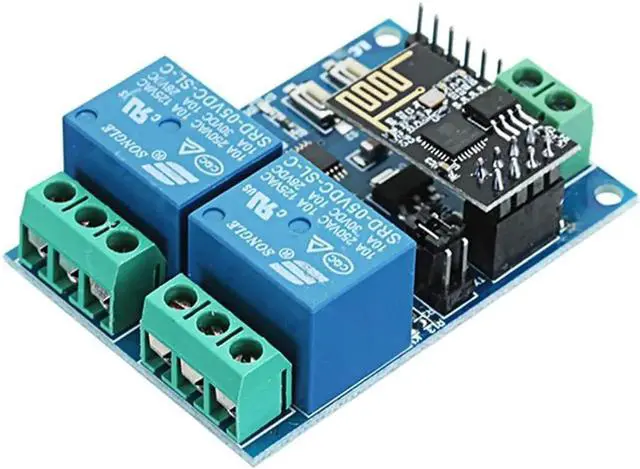

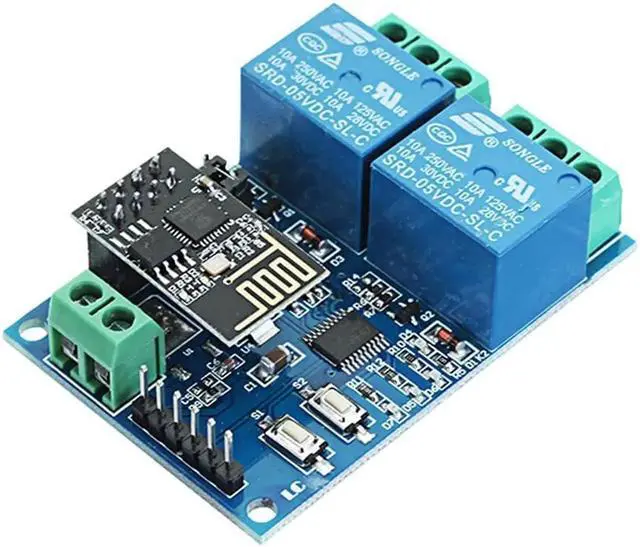

Overview:; LC 5V ESP8266 2-channel WIFI relay module equip with to ESP-01 WIFI module and 8 bit high performance MCU, Only need simple configurations and then you can control the relay with cellphone APP under LAN area.

Instruction: Click

here to openMore details: Click

here to openCharacteristics:; 1, On-board N76E003/STM8S003 and ESP-01 WIFI module2, Having

two modes: (1)

Mode 1: Cell phones carry on the wifi module directly (2)

Mode 2: Cell phone and wifi module carry on the same routerAdditional function: As an USB relay module when unplug the ESP-013,

Transmission distance: (1) In the open environment, the maximum transmission distance is 100m when the cell phone carry on the wifi module directly; (2) when the wifi module and cell phone carrying on the same router, the transmission distance depend on the router s signal intensity; 4, Use Smartconfig technology of ESP8266 to configurate the password for theESP-01 module with APP5, On-board 5V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously, Module with diode effusion protection, short response time6, On-board model selection and working position indicator LED7, On-board preserved UART debug interface and MCU program interface8, Size: 59*40mmInterface

and sources:; IN+, IN-: 5V power inputTX,;

RX:; UART communicationSWIM,;

NRST: MCU

program interfaceS1: Mode selection key, default

is mode 1S2: Restore keyLED D2 and

D4 (red): Relay indicatorLED

D7 (red): Mode 1 indicatorLED

D5 (blue):; Mode 2 indicatorLED

D6 (green): Working state indicator, the description of

D6 as below: (1) It s means internal self-configuration or lost connection with the router when D6 off (2) It s means the ESP-01 are waiting for the APP configurate the password for it when D6 fast blink every 0.5S (3) It s means the whole configuration is done and waiting for establishing TCP connection with APP when D6 slow blink every 2S (4) It s means the TCP connection between ESP-01 and APP is OK when D6 on all the time.

Relay control command (must be hex format)

Learn more about the Detailed Specifications
