ProTechTrader Single-Pole Double-Throw (SPDT/1P2T) Large Slide Switch (Model: PTT-LRG-Slider-Switch-7.4lugs)

Be the first to review this product...

Single-Pole Double-Throw (SPDT/1P2T) Large Slide Switch with Lug Terminals - 7
4mm Spacing Specifications: Electrical Rating: 1
5A 250VAC Contact Resistance: Insulation Resistance: > 100m OHM (at 500VDC) Terminal-Terminal Max: 1500V AC/10mA/5s Terminal-Knob Max: 3000V AC/10mA/5s Operating Life: 10000 Cycles Operating Force:...
5N Dimensions (LxWxH): Body: 22mm x 12
6mm Knob: 6

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

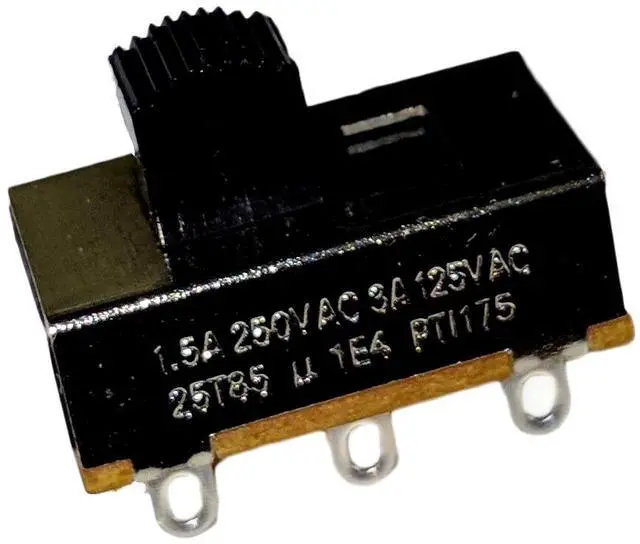

Single-Pole Double-Throw (SPDT/1P2T) Large Slide Switch with Lug Terminals - 7.4 mm Spacing

Specifications

: Electrical
Rating: 1.5A 250VAC
Contact Resistance: Insulation
Resistance: > 100m OHM (at 500VDC)
Terminal-Terminal Max: 1500V
AC/10mA/5s Terminal-Knob Max: 3000V
AC/10mA/5s Operating Life: 10000
Cycles Operating Force: 3N- 4.5N
Dimensions (LxWxH):
Body: 22mm x 12.7 mm x 7.6 mm
Knob: 6.5 mm x 5.4 mm x 7mm ( 5.5 mm
Travel) Lugs: 2.6 mm x 0.5 mm x 5mm
DataSheet:
https: //www. protechtrader. com/manuals/ProTechTrader-PTT-LRG-Slider-Switch- 7.4 lugs-secured. pdf
