AJMRTC MOSFET Trigger Switch Drive Module, DC 5V36V PWM Electronic Switch Control Board, 020KHz 15A(Max 30A) 400W for Lamp Brightness Motor Speed Control
- Wide Voltage & High Power Output
- Supports DC 5V36V wide voltage; 15A continuous / 30A peak current, max 400W power. Dual MOS parallel design with low internal resistance for stable high-power switching.
- 020KHz PWM Precision Control
- Fully supports 020KHz PWM signals; accepts 3.3V20V digital trigger levels. Directly compatible with MCU/PLC/Arduino/ESP32 GPIO without extra level shifting.
- Versatile Load Compatibility
- Ideal for lamp brightness control, LED strip dimming, DC motor speed, pump flow, solenoid valves. Perfect for 12V/24V DIY electronics, robotics, and automation.
- Compact & Durable Design

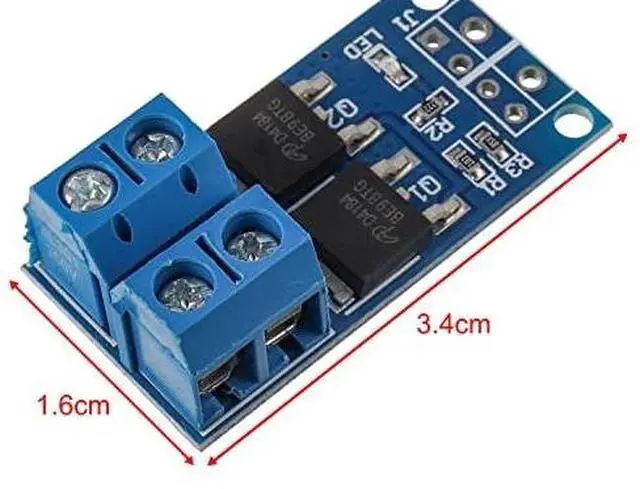

- Size 3.4×1.7×1.2cm, lightweight for easy integration. -40 to 85 wide temp range; LED indicator for power/status monitoring.
- Easy Installation & Safe Operation

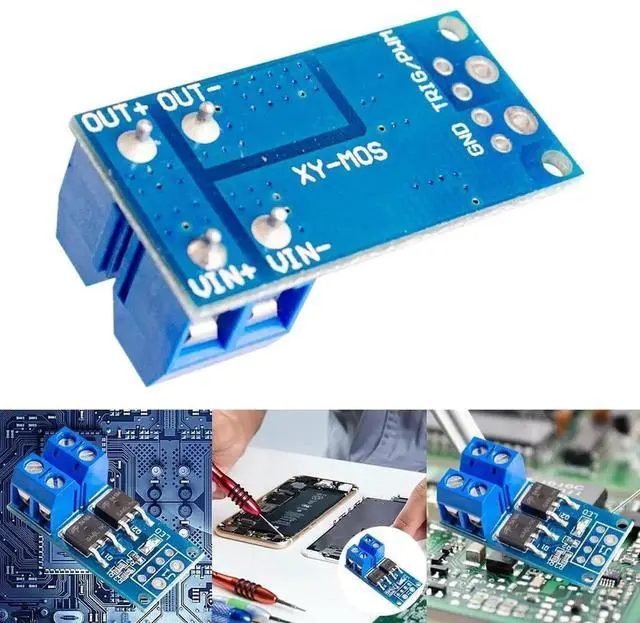

- Screw terminals for fast wiring; no relay contacts, silent & long lifespan. Overcurrent/thermal protection ensures reliability for long-term use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AJMRTC MOSFET Trigger Switch Drive Module is a highpower, compact electronic switch for precise PWM control of DC loads. Operating from DC 5V to 36V, it delivers 15A continuous current (30A peak) and up to 400W power, making it ideal for driving lamps, LED strips, DC motors, pumps, and solenoids.
Equipped with dual MOS parallel output, the module features low internal resistance, high efficiency, and minimal heat generation. It accepts 020KHz PWM signals and 3.3V20V digital trigger levels, allowing direct connection to Arduino, ESP32, Raspberry Pi, PLC, or MCU IO portsno additional level shifters required.
This versatile driver enables smooth lamp brightness adjustment, LED dimming, motor speed regulation, and pump flow control. The compact 3.4×1.7×1.2cm size and screw terminals ensure easy installation in spaceconstrained projects. An LED indicator provides clear power and status feedback, while builtin protection safeguards against overcurrent and overheating.
Silent and reliable (no relay contacts), the AJMRTC MOSFET module operates efficiently across -40 to 85, suitable for DIY electronics, robotics, home automation, and industrial control. It is a perfect upgrade for highpower DC switching and PWM regulation applications.
- Brand: AJMRTC
- Voltage Range: DC 5V36V
- Current: 15A (continuous), 30A (peak, with cooling)
- Max Power: 400W
- PWM Frequency: 020KHz
- Trigger Signal: 3.3V20V digital level / PWM
- Load Types: Lamps, LED strips, DC motors, pumps, solenoids
- Size: 3.4 × 1.7 × 1.2 cm
- Operating Temp: -40 to 85
- Indicator: Power LED
