AJMRTC TS5A23157 CJMCU-23157 Dual Channel 10 SPDT Analog Switch Module Development Board, Low On Resistance Signal Switching Board for Arduino Raspberry Pi Circuit Test & Electronic DIY Projects
- - Adopts TS5A23157 chip, dual-channel 10 SPDT analog switch for analog or digital signal routing
- - Ultra-low on-state resistance, minimal signal attenuation, maintains signal integrity
- - Wide operating voltage range 1.65V to 5.5V, works with 3.3V and 5V MCU systems

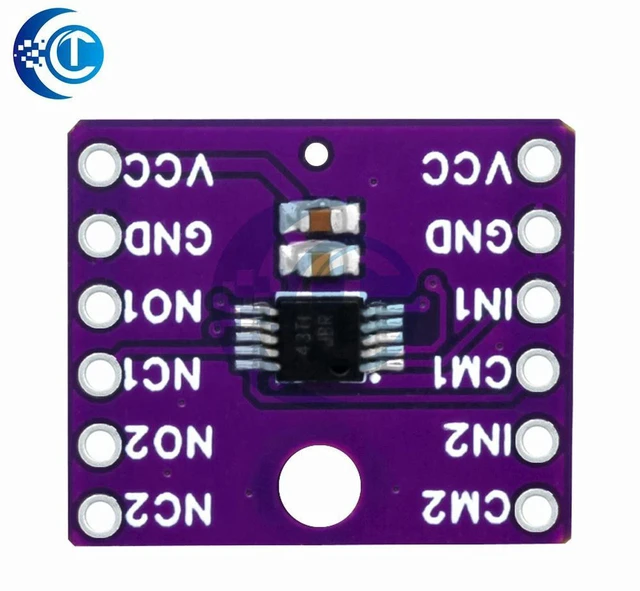

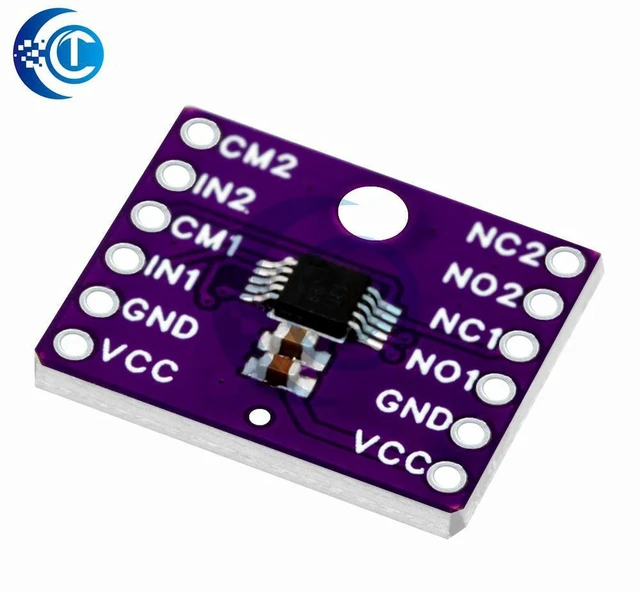

- - Compact CJMCU breakout board with pin headers, simple wiring for fast prototyping
- - Great for audio switching, sensor signal selection, circuit testing and embedded DIY projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

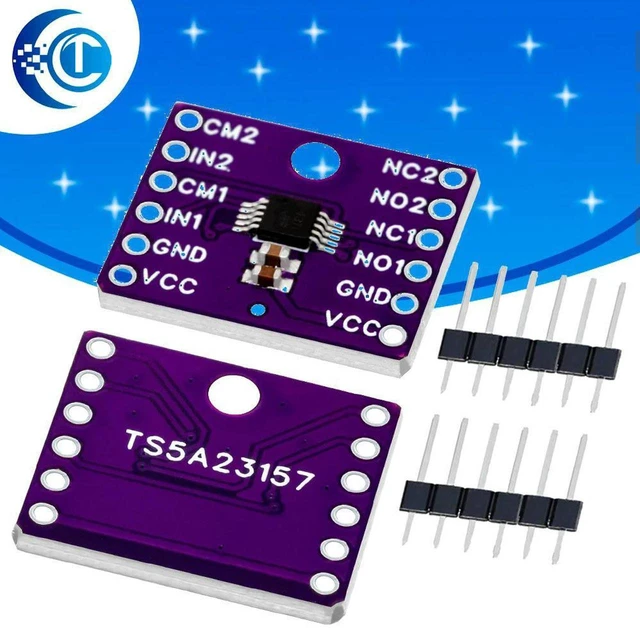

AJMRTC CJMCU-23157 analog switch development board is built around the TS5A23157 integrated circuit, providing dual single-pole double-throw (SPDT) signal switching capability. This module supports both analog and digital signal multiplexing with very low on-resistance to reduce signal distortion. It accepts supply voltages from 1.65V up to 5.5V, making it compatible with common 3.3V and 5V microcontroller platforms like Arduino and Raspberry Pi. The breakout board is pre-soldered with pin headers for quick plug-and-play connections. It is widely used for audio channel switching, sensor input selection, signal routing, circuit debugging and electronic prototyping for hobbyists and engineers.
- Brand: AJMRTC
- Model: CJMCU-23157
- IC: TS5A23157
- Switch Type: Dual Channel 10 SPDT Analog Switch
- Supply Voltage: 1.65V ~ 5.5V
- On Resistance: Low resistance for signal integrity
- Application: Signal Switching, Audio Routing, Sensor Selection, Circuit Test, Electronic DIY
