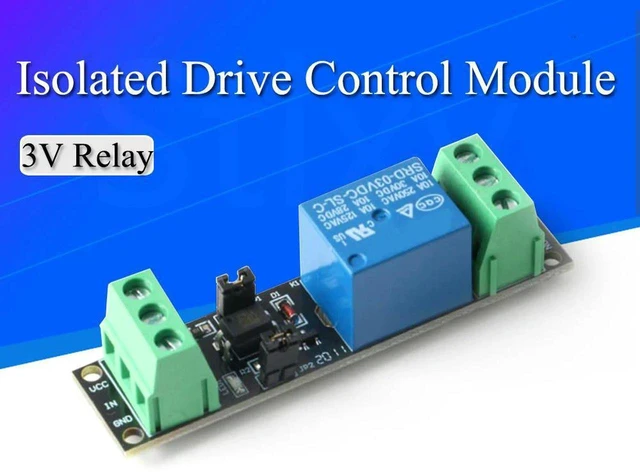

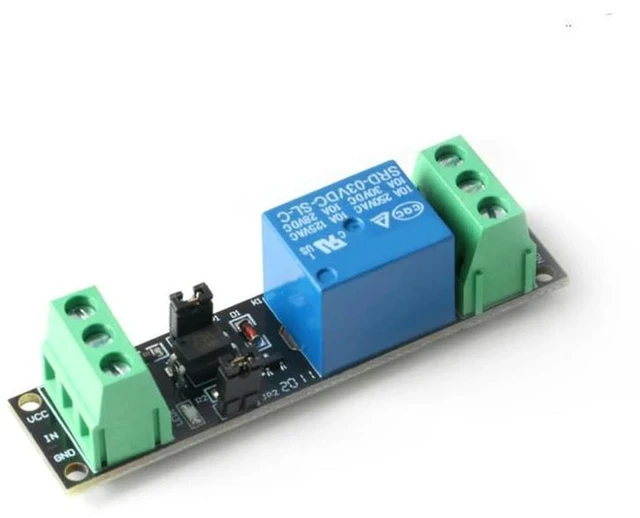

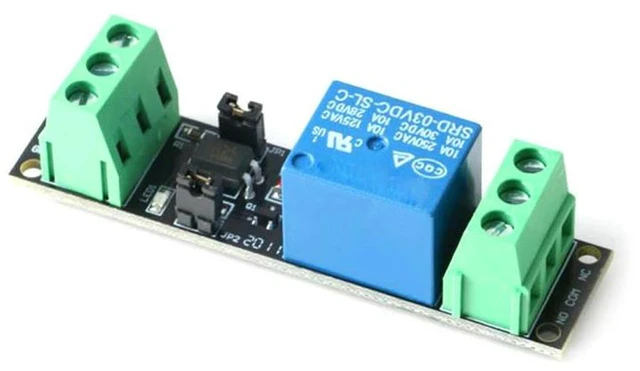

AJMRTC Single Channel 3V Relay Isolated Drive Control Module, High Level Trigger Relay Switch Board with Optocoupler Isolation, 3.0V Input Relay Driver for MCU, Arduino, ESP32 Industrial Control DIY
- - Single channel 3V relay drive module, triggered by high level signal to control relay on/off
- - Built-in optocoupler isolation separates control circuit and load circuit, enhances anti-interference performance
- - Wide load capacity, small size, stable relay pull-in action for microcontroller control applications
- - Standard pin header design, easy wiring; compatible with Arduino, ESP32 and other MCU development boards
- - Suitable for smart home control, power switching, industrial PLC signal trigger and electronic DIY projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC Single Channel 3V Relay Isolated Drive Control Module adopts optocoupler isolation design to effectively isolate the control signal side and load side, protecting your main control board from surge interference. This relay board uses 3V power supply and supports high-level trigger control. When the input signal reaches the trigger threshold, the relay will pull in to switch the external load circuit. It can be directly driven by common microcontroller IO ports such as Arduino and ESP32. Compact PCB layout saves space for prototype design. It is widely used for intelligent power switching, small equipment control, automation experiments and other electronic DIY projects. The optocoupler isolation greatly improves system stability and safety.
- Brand: AJMRTC
- Module Type: Single Channel 3V High Level Trigger Relay Drive Module
- Control Voltage: DC 3V
- Trigger Mode: High Level Trigger
- Isolation: Optocoupler isolation
- Control Interface: 2.54mm pin header
- Application: MCU load switch, smart home, automation control, DIY electronics
- Package Includes: 1 × 3V relay isolated drive control module
