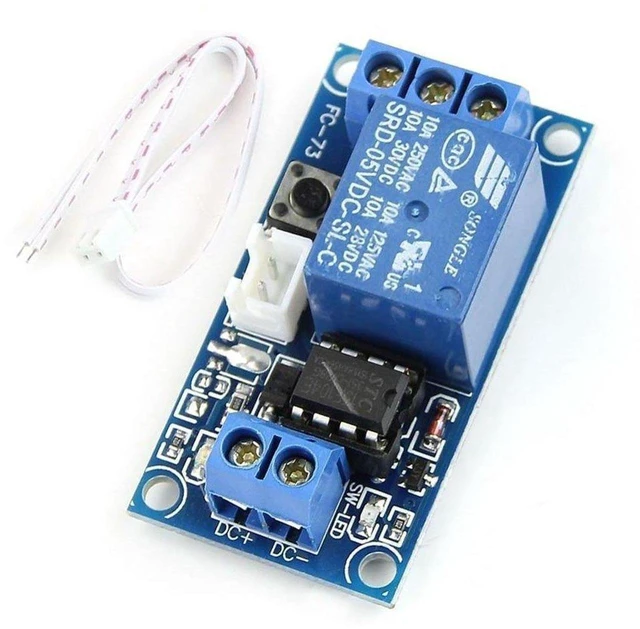

AJMRTC 5V 1 Channel Self-Locking Bistable Relay Module, One Button Latch Start Stop Control Board, Single Touch Toggle Switch for Electronic DIY and Device Control
- - 5V powered bistable self-latching relay, one single button to toggle ON / OFF
- - Latch design keeps state without continuous coil power, low power consumption
- - Stable trigger logic, anti-jitter circuit prevents misoperation from button bounce
- - Relay contact supports external load switching for lights, fans and small equipment
- - Compact module, easy to integrate into automation and control projects
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC 5V self-locking bistable relay module realizes simple one-touch start and stop control. It adopts latch relay principle; press the button once to turn on the load, press again to turn it off. Built-in anti-jitter circuit effectively avoids false triggering caused by mechanical button bounce. Since it only consumes power during state switching instead of holding power continuously, it saves energy for long-running applications. The relay dry contact can be used to control various external loads within its rated range. It is widely used for small lamp control, fan switching, equipment power control, embedded DIY systems and simple automation circuits.
Specifications:
- Working Voltage: DC 5V
- Channel: 1 Channel
- Control Mode: One Button Self-Locking Toggle (Bistable)
- Trigger: Momentary Push Button
- Relay Type: Latching Bistable Relay
- Contact Type: Normally Open / Normally Closed
- Rated Contact Load: 250VAC 10A / 30VDC 10A
- Feature: Built-in Anti-jitter Circuit
- Operating Temperature: -20 ~ +70
- Application: Light, Fan, Small Equipment On-Off Control
