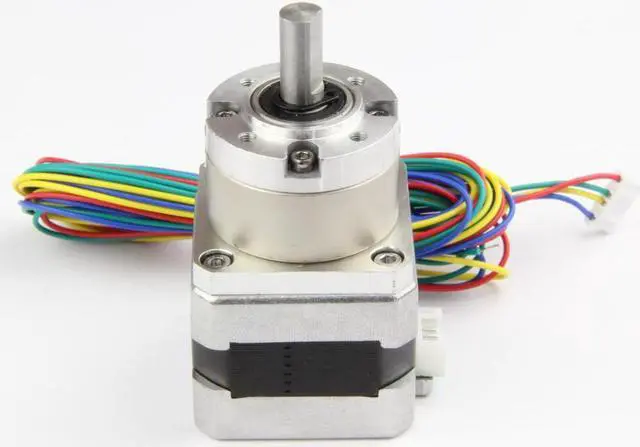

Kysan 1040222 Geared NEMA17 Stepper Motor
- Geare ratio: 5.2 : 1
- Massive torque, 9 Kg-cm (or, 88 N-cm, 125 Oz/in)
- Compact design
- Detachable wire 1,830 mm (72 in) for easy wire management
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This NEMA17 geared stepper motor provides massive torque, 9 Kg-cm (or, 88 N-cm, 125 Oz/in), to drive your extruder. The compact design enables a neat fit onto your 3D printer without taking too much space. The connection wires are detachable from the motor for easier wire management.
Specifications:
- Model: Kysan 1040222
- Rated voltage: 2.6 V
- Number of phase: 2
- Current / phase: 1 A
- Resistance / phase: 2.6 Ohms +/- 10%
- Inductance / phase: 3.2 Mh +/- 20%
- Insulation resistance: 100 Mega-ohms (500 VDC)
- Gear ratio:
5.2: 1 - Length of connection wires: 1, 830 mm (72 in)
- Shaft diameter: 8 mm ( 0.315 in) flatted
