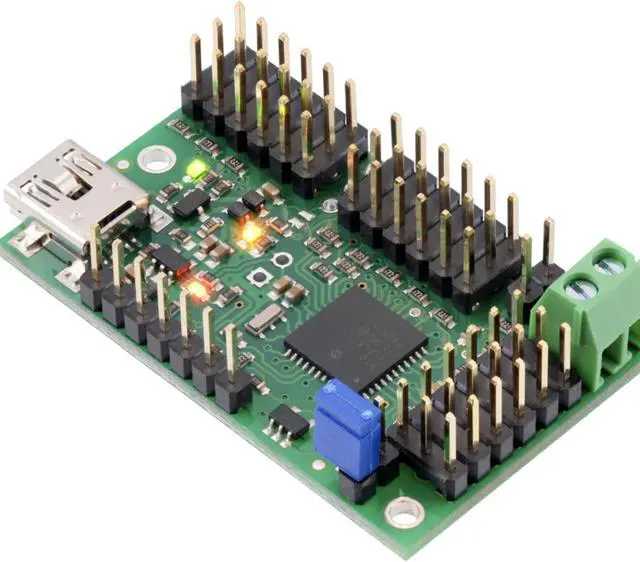

Pololu Mini Maestro 18-Channel USB Servo Controller - Assembled

Key Features:

• Newest of Pololu' s second-generation USB servo controllers
• Three control methods: USB, TTL (5 V) serial, and internal scripting
• 0.25 μ s output pulse width resolution & wide pulse range of 64 μ s to 4080 μ s
• Pulse rate configurable from 1 Hz to 333 Hz

The Mini Maestros are the newest of Pololu' s second-generation USB servo controllers, offering more channels and features than the smaller six-channel Micro Maestro. The 18-channel Mini Maestro 18 raises the performance bar for serial servo controllers with features such as a native USB interface and internal scripting control. Whether you want the best servo control available ( 0.25 μ s resolution with built-in speed and acceleration control and pulse rates up to 333 Hz) or a general I/O controller (e. g. to interface with a sensor or ESC via your USB port), this compact, versatile device will deliver.

Item Specifics

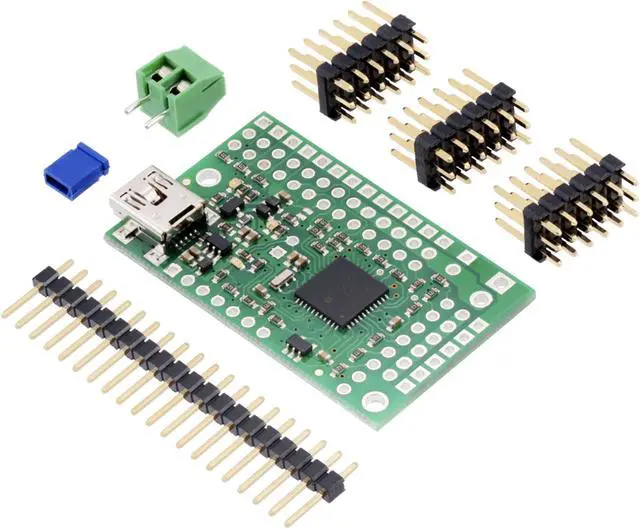

1 - Mini Maestro Controller
1 - 0.1" male header (Pre-soldered)
Channels: 18 (12 analog; 6 digital)
Baud: 300 - 200000 bps
Minimum operating voltage: 5V
Maximum operating voltage: 16V
Supply current: 40 mA
Size: 1.10" x 1.42"
Weight: 10 g
