Dyze Design DyzEnd-X + DyzeXtruder GT - 1.75mm, 24v, 300C

Key Features:

• Small, compact and lightweight hotend & extruder
• Leak-free high temperature mechanical sealing
• Fast heating - reaching 210C in just over a minute
• Unique lockable lever makes filament change very easy and convenient on the DyzXtruder

Dyze Design’ s Extruder & Hotend kit is a high temperature, fast print with high pushing force. The aluminum melt block on the DyzEND-X transfers heat very quickly to the nozzle for an efficient and very fast printing speed. Get precise readings up to 300°C with the high temperature sensor used inside the DyzEnd-X. Any thermoplastics can be used and the all metal long melt zone handles very high filament feed without any trouble. Plus the DyzEnd-X can be easily converted to a liquid cooled setup with Dyze Design’ s specialized cooling blocks.

The DyzeXtruder GT has a 5.65: 1 gear ratio made from high strength hardened steel and brass. This gear combination allows low friction operations and a longer life while the ratio uses the full potential of a very small motor while, enabling very high pushing forces. The gears and bearings are designed to last for hundreds of kilograms in extreme conditions. The combination of reduction gear, dual pinch and unique design enables the DyzeXtruder GT to push as much as 9 kg (20 pounds) of force.

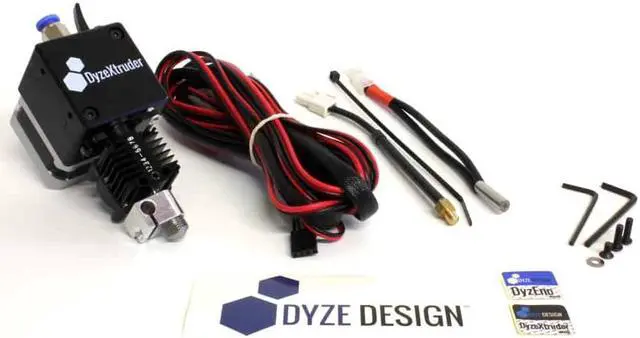

Item Specifics
1 - DyzEnd-X Hotend
1 - DyzXtruder GT Extruder
1 - 0.4 mm Hard Stainless Steel Nozzle
1 - Fan with 1000mm extension cable
1 - Header with 1000mm extension cable
1 - Temperature sensor with 1000mm extension cable
1 - 1000mm stepper motor cable
2 - M3x10 mounting screw
1 - 2mm Allen Key
Hotend weight: 52g
Filament Size: 1.75 mm
Operating Voltage: 24V
Top thread: M8x 1.25 mm
Fast extrusion speed: Over 35 cubic mm/s ( 1.2 mm Hard SS Nozzle and PLA @ 250C)
