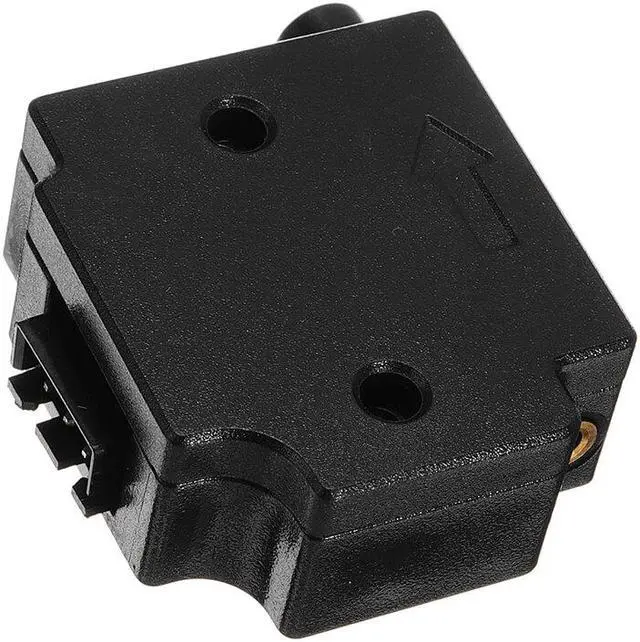

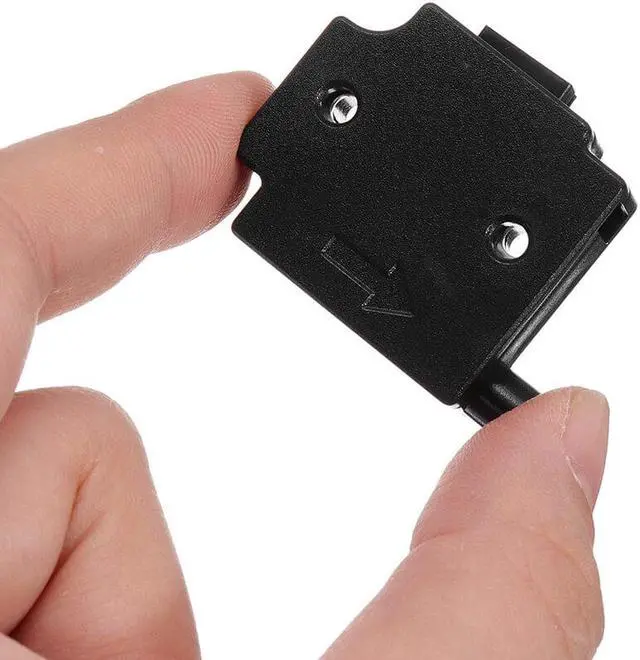

1.75mm Filament Material Run Out Detection Module Sensor For 3D Printer Parts

Specifications:

- Product name: Filament Detection Module

- Material: Plastic

- Applicable filament diameter: 1.75mm

- Total Size: (L×W×H) 37.6×30.2×13mm(Approx.)

- Cable Length: 1m (Approx.)

Features:

1. Suitable for testing 1.75mm filament

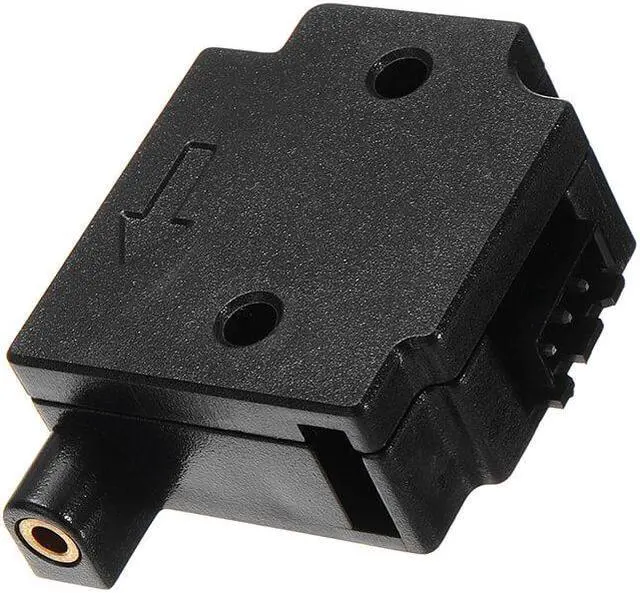

2. The wear-resistant copper sleeve is added, which can effectively extend the service life of the product

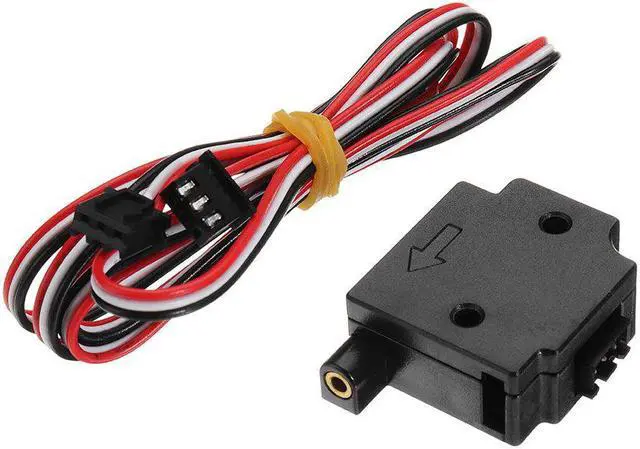

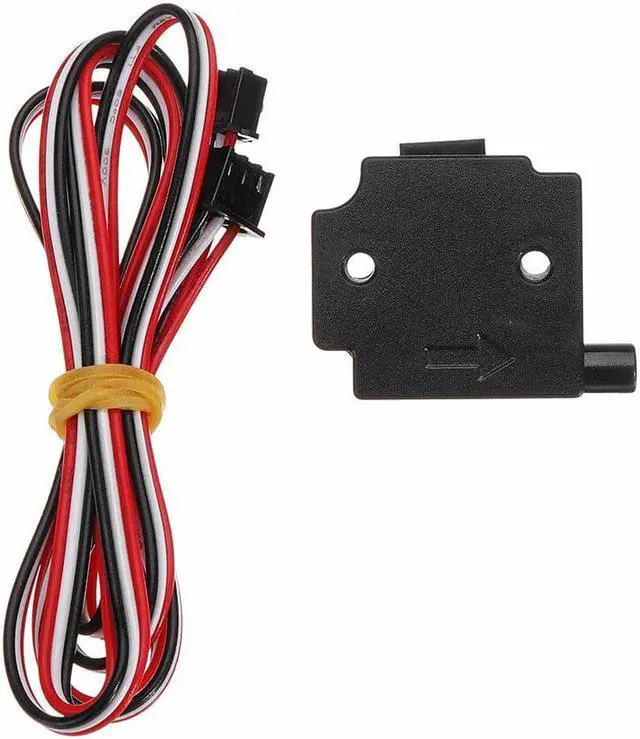

Package Included:

1x 1.75mm Filament Detection Module

1x Connetion Cable

Used with board:

When there is filament in, the green light in the module keeps lighting. And when the filament is exhausted, the green light goes off, then the motherboard executes the pause command operation, after the replacement of the filament can continue to print.

Wiring: Connect the module to the M-sensor port on the motherboard.

Used with other motherboards:

The filament detection module uses the level transition detection method. When with filament in, the detection level signal should be high, and when no filament, the filament port level signal goes low. When the system detects a determined transition from high to low level, it will regard it as the filament exhausted, then the board executes the pause command operation, and after the replacement of the filament, it will continue to print.
