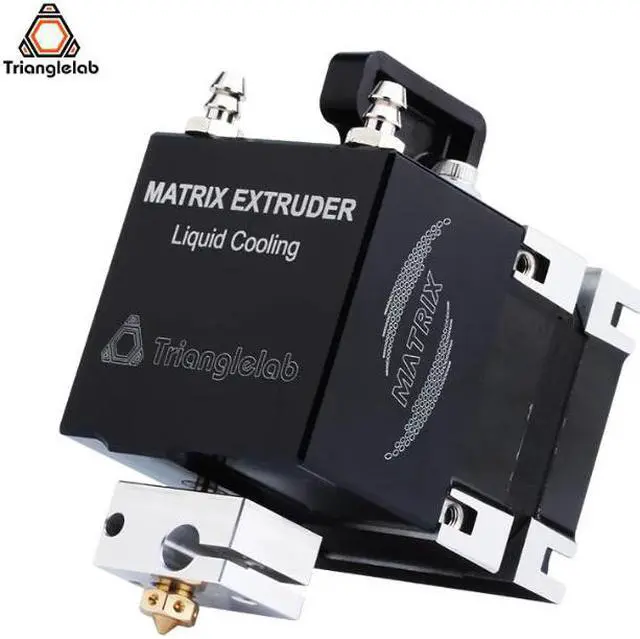

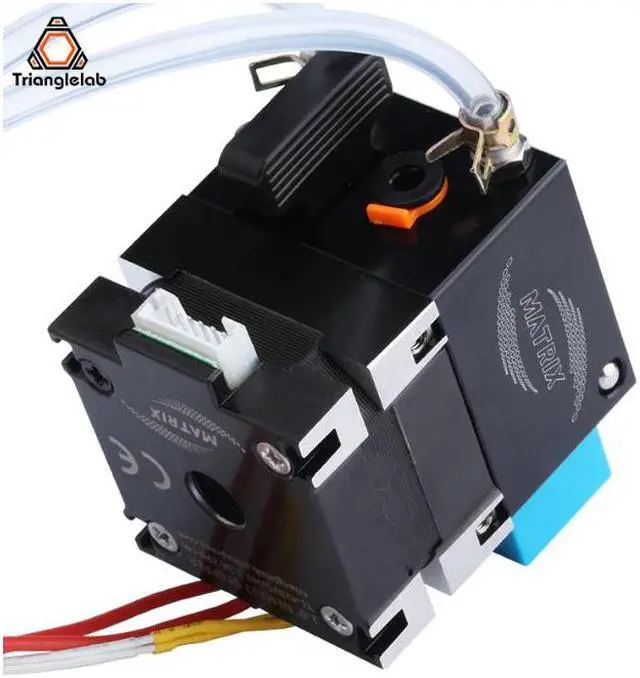

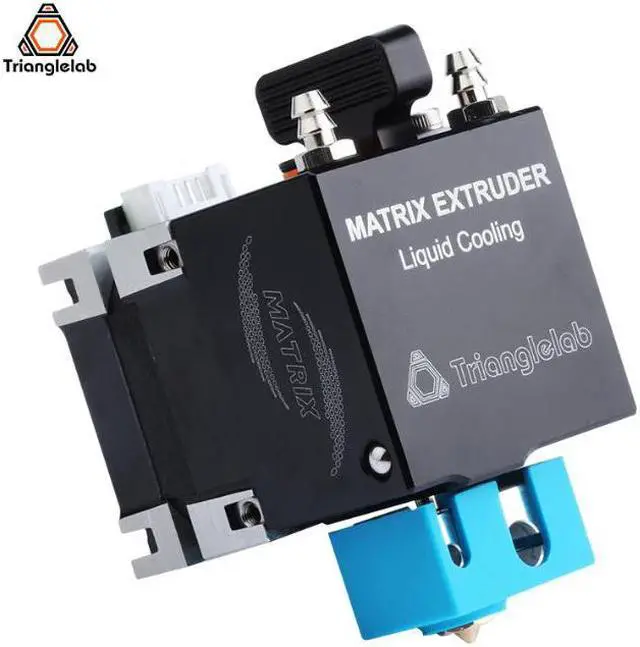

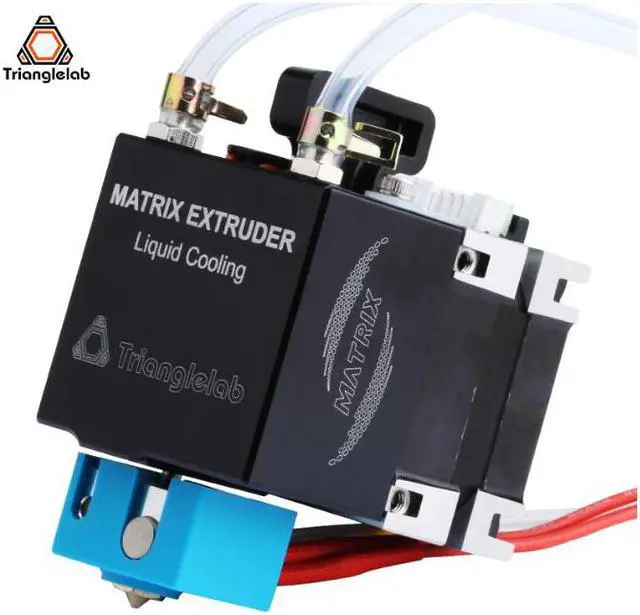

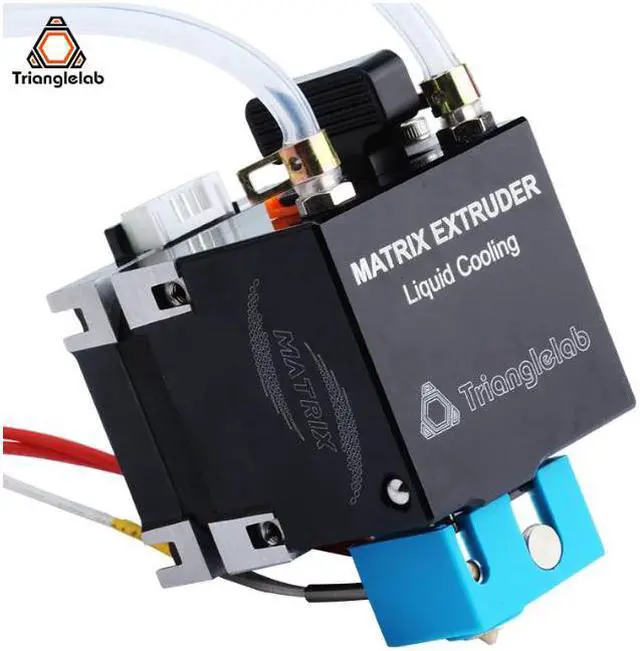

/ Dforce Matrix LC Extruder Water Cooling Hotend 3D Printer For Ender3 Prusa CR10 ANETSidewinder X1 3D Printer

Name:

- Matrix-LC Extruder

(This is the heavier version of Matrix-LC Extrder)

Highlight:

·120chamberworking temperature Guaranteed

·Hotside upgradable to 450°C

·High temperature resistant motor wires

·Dual drive with adjustable tension idler

·Very short filament path

·Compact extrusion system

Installation guide:



*The guide is from MATRIX EXTRUDER. But the water-cooled version can also be referred to, because the installation method is similar.

Compatible:

Compatible with Prusa

Compatible with Ender 3 /3 PRO/ 5

Compatible with CR-10/CR-10S

Summary:

Drive type: Dual drive with adjustable tension idler

Max printing temperature: 285°C(upgradable to 450°C)

Mass: 284g(including hotside)

Nominal steps per mm(16x): 335.4 steps per mm(further calibration required)

Motor current: 1.23

Filament diameter and tolerances: 1.75±0.05mm

Max pushing force: 8.6kg Generic PLA 10mm/min @24V Driver

Hotside Compatibility:

V6 / / Super .

Electrical:

Heater power 40W         12/24V optional

Thermistor Semitec 104NT-4-R025H42G

Motor:

Phase no                   2phases

Resistance                 2oum

Holding torque           29 N cm

Current                      1.3A

Motor cable length     90CM

What's in the box:

-Matrix-LC  ExtruderX 1

*Friendly reminder. Choose the right voltage*

MATRIX-LC  EXTRUDER PACKAGING LIST

Matrix-LC Extruder (pre-assembled) x1

M3 square nuts x6

M3x12 screw x3

M3x10 screw x8

M3x8 screw x8

M3x6 screw x8

M3 spring washer x8

Hi-temp Extruder motor cables 90cm with connector x1

Thermistor ATC Semitec 104NT-4-R025H42G x1
