/ Dforce M8 mini inductive proximity sensor DC5V 3-wire 2mm Z probe auto bed leveling CR10 ENDER3 prusa mini 3D Printer

NAME:

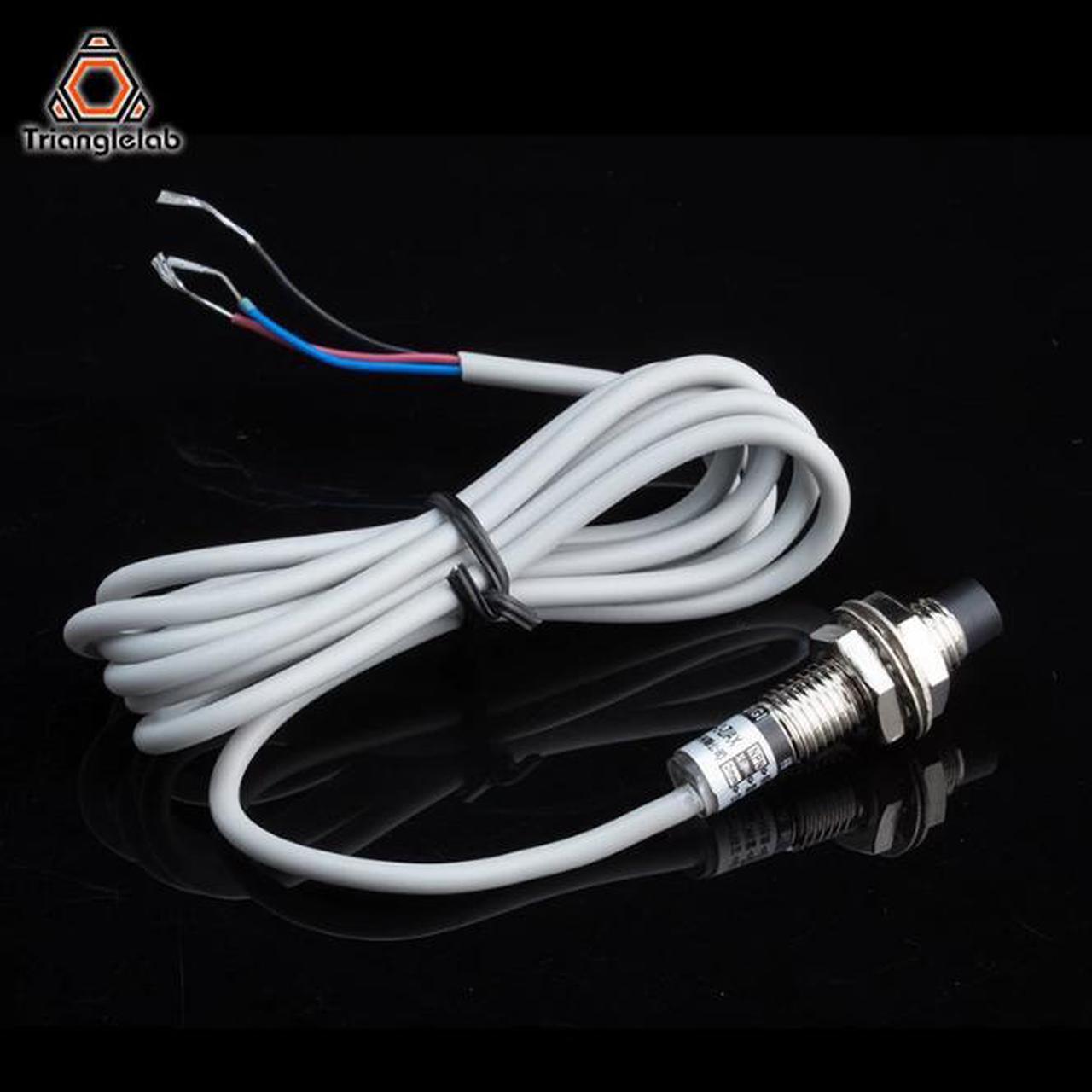

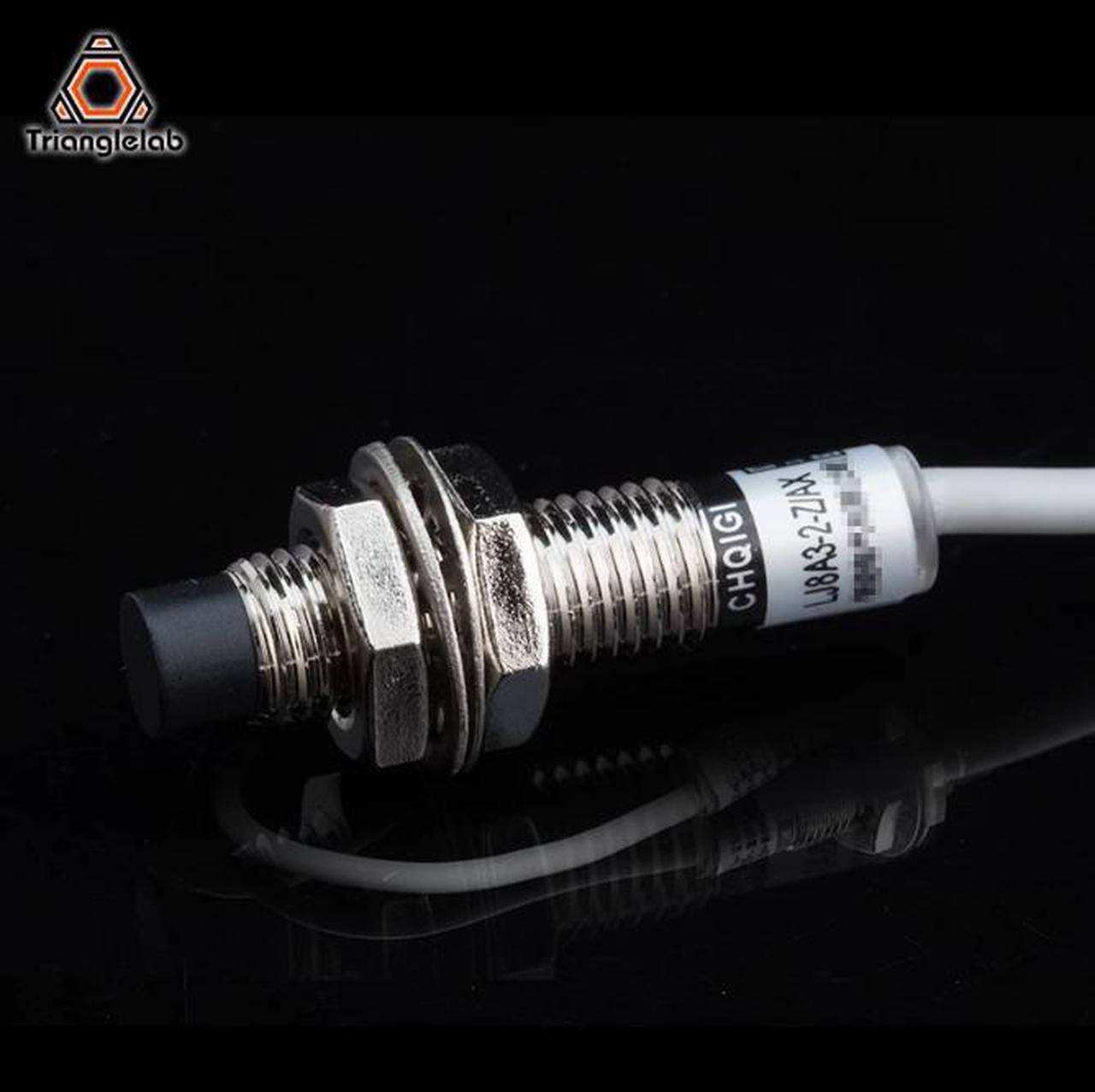

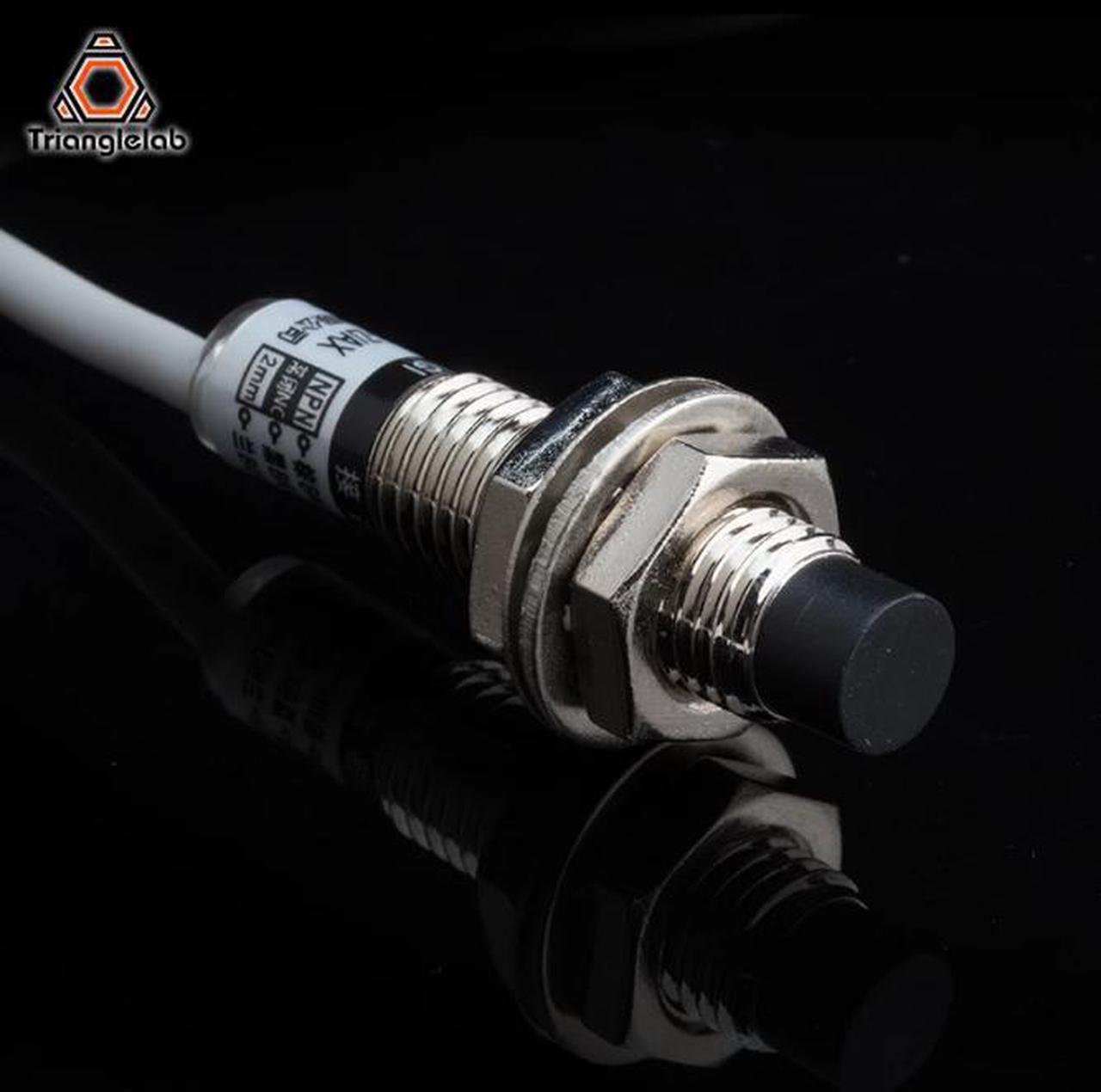

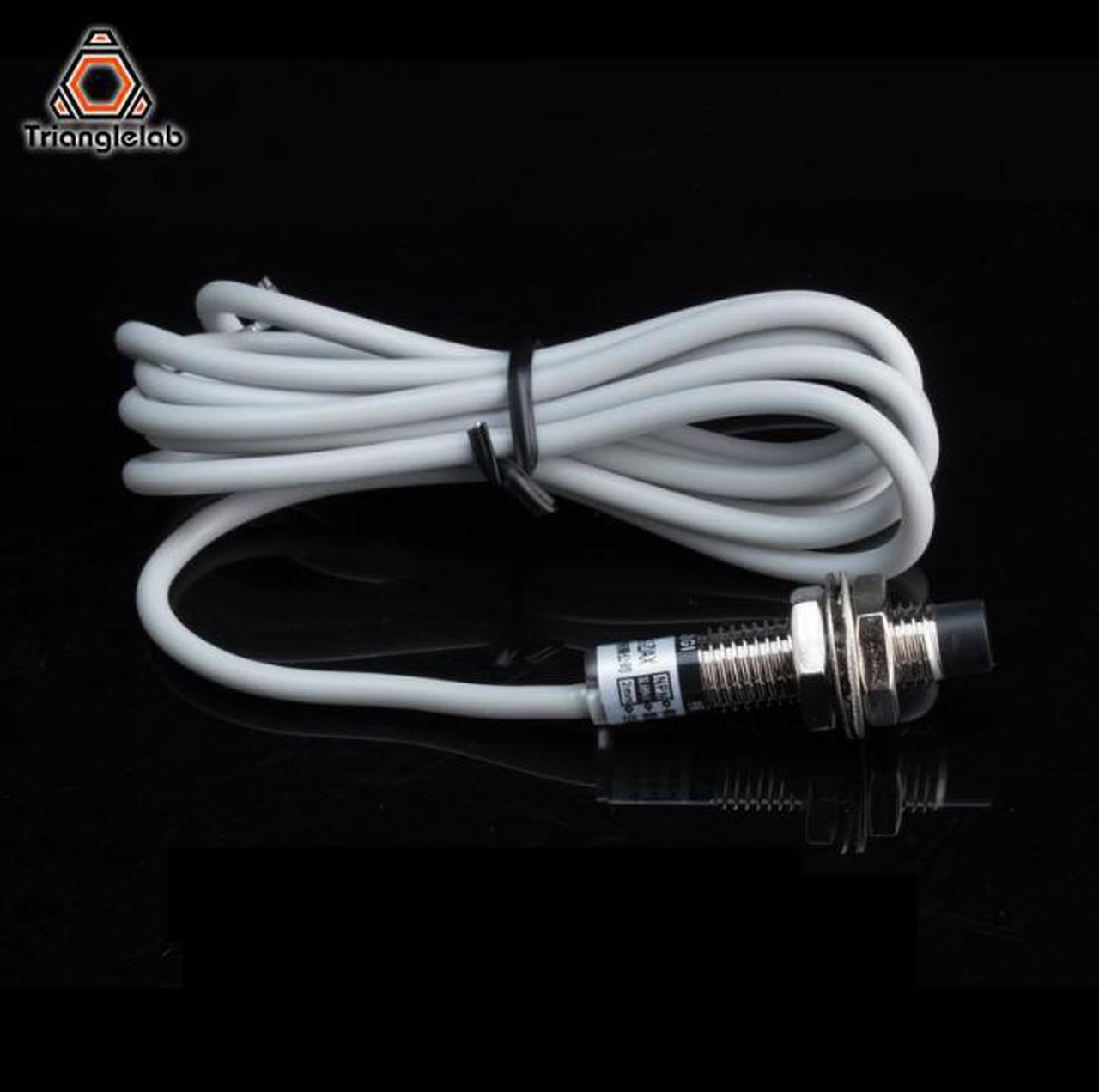

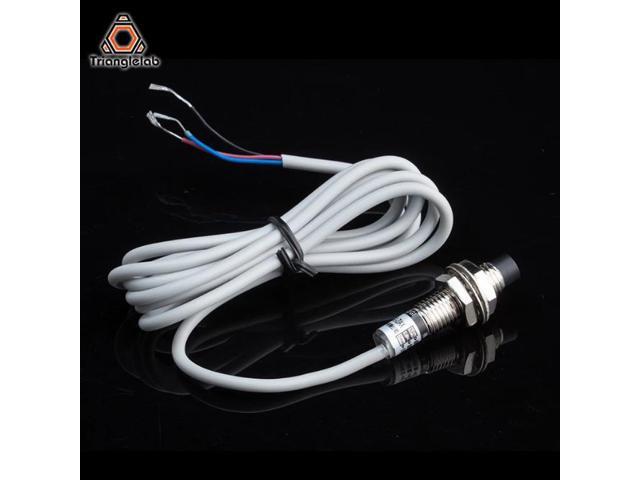

M8 MINI inductive proximity sensor (Triangleab customization)



Introduction:

*A small size inductive sensor for you to adding an accuracy reliable Z probe on your printer.

Enable Auto bed Leveling for your low cost 3D printer.

*The performance of M8 MINI and M8 proximity switch sensors are the same, but M8 MINI has a lightweight design. The length is shorter and the weight is lighter. Easier to install and reduce the total weight of the entire extrusion head KIT.



Datasheet:

Diameter of Head : 8mm

Detecting Distance : 2mm±10%

Output TypeNPN

normal contacted

Supply VoltageDC5V

Current Output : 300mA

Response Frequency : 150Hz

Detect Object : Iron

Operating Temperature : -25°C to +55°C (Non-freezing Condition)



Wiring:

Brown    +5V

Blue        GND

Black      Signal (Zmin)

How to install this sensor to ender3 / CR-10 printer or some other Melzi boards printer

1. Flash a Bootloader



2. Upload Marlin 1.1.9 Firmware

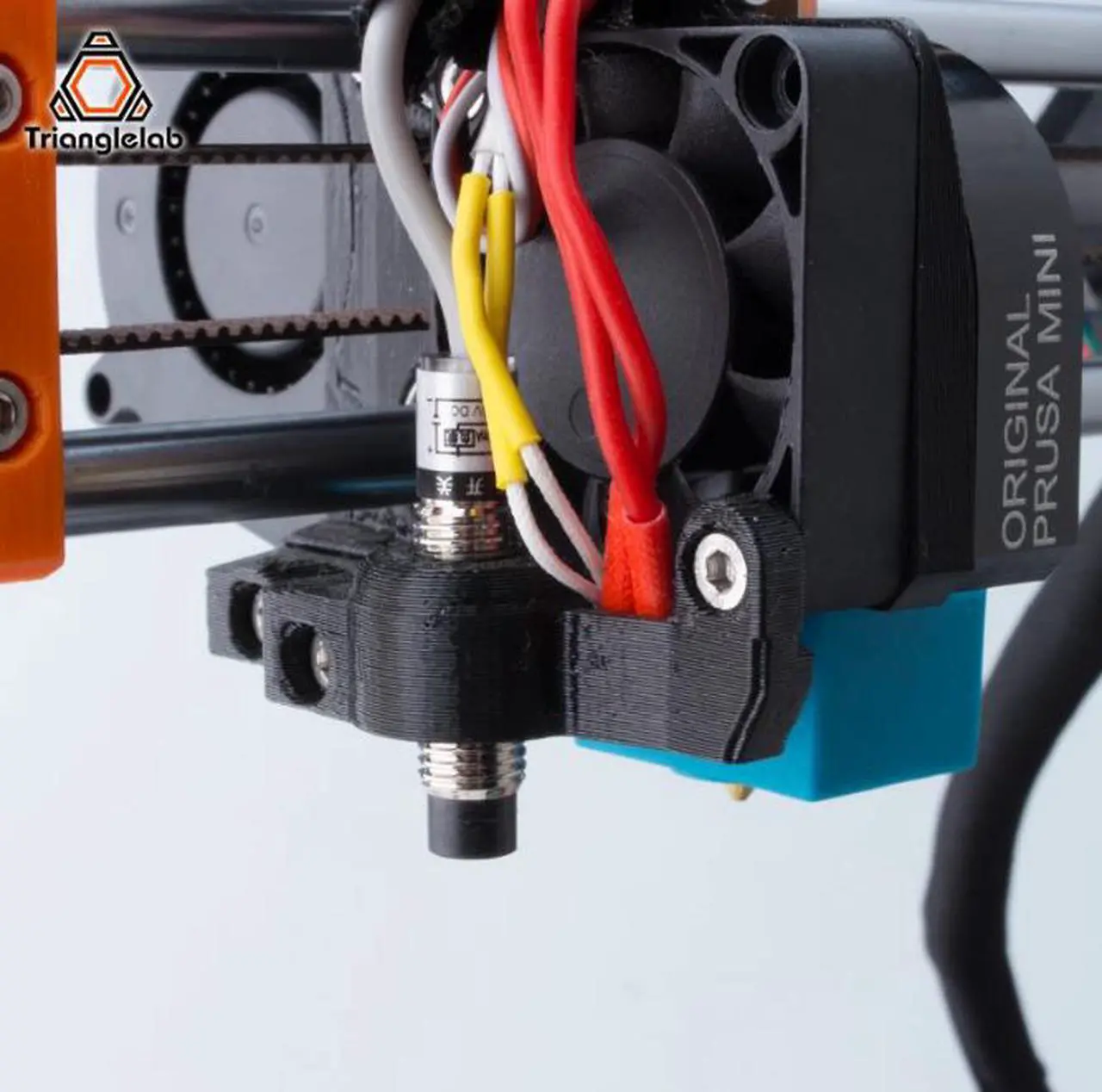

3. Fixing the sensor to your print head.Make sure the sensor tip is 1MM higher then your nozzle.

4. Wiring and cable management

5. Testing and tuning

6. Happy printing
