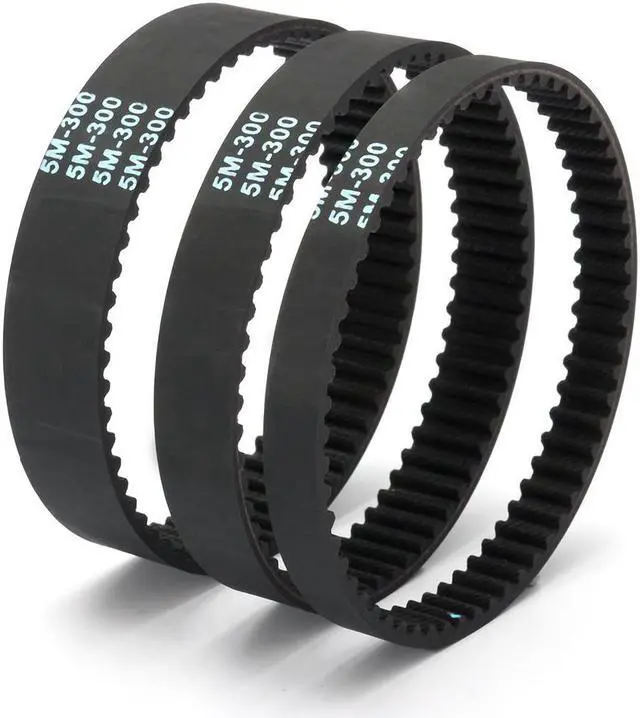

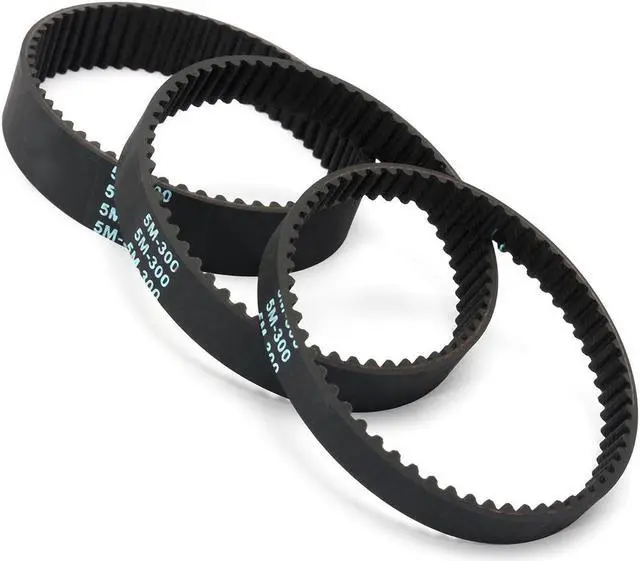

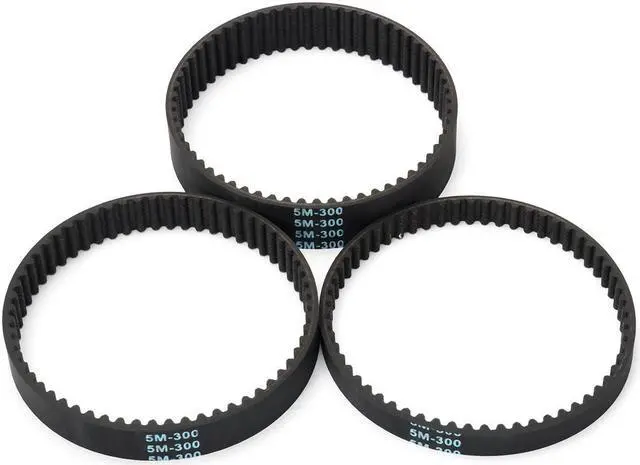

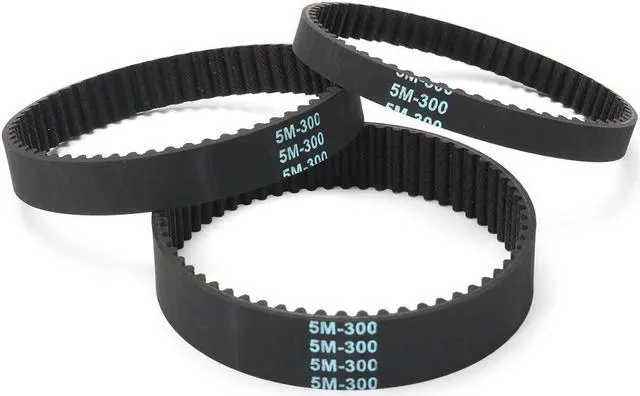

HTD5M-300 Timing Pulley Belt Rubber Drive Arc Teeth 10/15/20mm Width 1/5'' Pitch For 3D Printer

Features:

Dynamic flexing is good, anti-cracking performance

Ozone excellent performance

Resistance to aging, heat, oil, wear-resistant

Synchronous belt drive with accurate transmission ratio, no slip, constant ratio can be obtained, precision transmission, smooth transmission, shock absorption, noise, transmission speed ratio range

Specification:

Name: HTD5M-300 Belt

Style: HTD5M Series Belts Positive Drive

Model:HTD5M-300

(HTD300-5M)

Belt Width: 10mm/20mm(Optional)

Material: Chloride butyl rubber + Glass fibre + High elastic nylon canvas

Parameters:

Teeth type:Circle-arc tooth

Teeth number:60

Whether standard parts: Standard parts

Pitch: 5.00mm

Tooth height: 2.06mm

Belt thickness: 3.8mm

Minimum allowable bending diameter: 25

Tensile strength: 160N/mm

Reference load: 130N/mm

Elongation: 4.0%

Hardness(shore A):75±5

Adhesion strength of cloth: 6N/mm

Adhesion strength of core rope: 400N/mm

Gear shearing intensith: 50N/mm

Package includes:

1 x HTD5M-300 Timing Belt

Note:

1. Prohibited twists and turns, so as not to damage the skeleton material, affecting the belt strength.

2. Do not scratch the belt, so as not to cause early damage to the belt.

3. Prohibit the long-term and oil, water and other substances in long-term contact, to avoid contact with chemicals.

4. In the replacement of timing belt, belt tension must be reduced to a minimum in order to remove, forbidden timing belt in the case of high tension, the use of non-professional tools hard pry down.

,,
