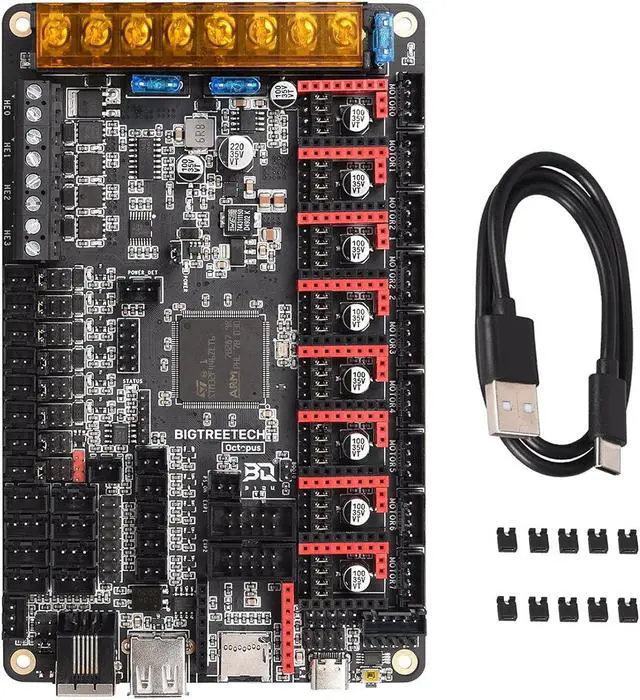

BIGTREETECH Direct Octopus V1.1 Control Board 32Bit Silent Motherboard Support 8 Axis TMC2209 Stepper Motor Driver Compatible btt pi v1.2 to Running Klipper/Marlin for Voron 2.4 CoreXY 3D Printer

Main Control Chip: BIGTREETECH Octopus V 1.1 control board adoptes ARM Cortex-M4 series STM32F446ZET6 32-bit microcontroller at 180MHz with 512Kb flash ROM.
Notice: Input voltage only supports 24V, 12V is not allowed.
CAN BUSbtt octopus v 1.1 motherboard supports CAN Bus connectivity using an ethernet connector. This CAN Bus connection allows to expand control board with other expansion boards very easily.

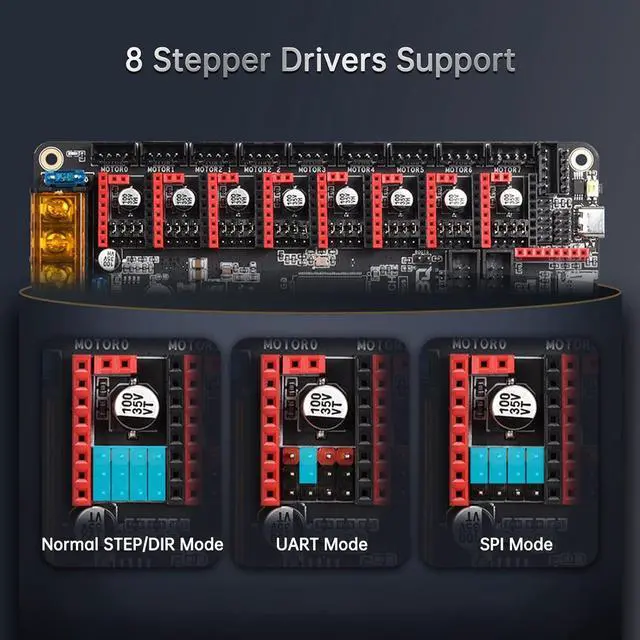

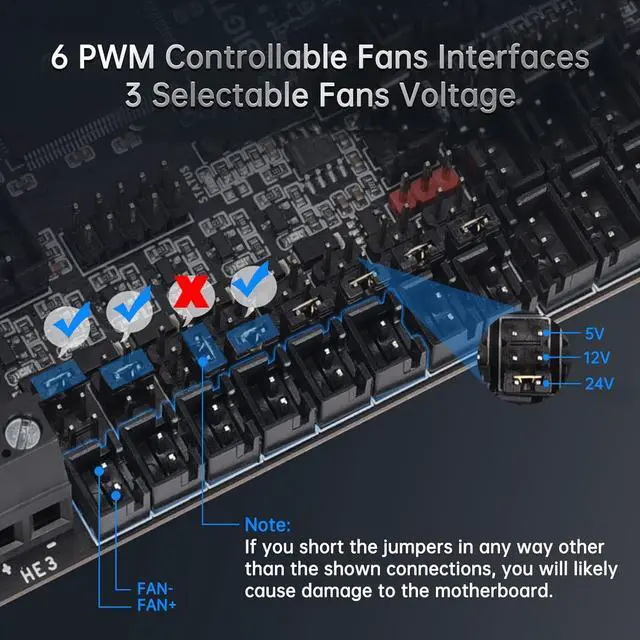

6 PWM Fans Plus 2 The Octopus v 1.1 Mainboard offers up to 6 controllable PWM fans and additional 2 without control with the possibility of voltage selection from 5V, 12V or 24V. The BTT Octopus also has 8 sockets for drivers, making it an ideal electronics for demanding machines.
Supports Klipper/Marlinbigtreetech octopus v 1.1 control board for voron 2.4 supports running Klipper and Marlin. Supports firmware update by USB (recommended) and DFU mode (advanced users). Updating via DFU mode is to send firmware to the board directly from PC with no need for bootloader, which is not recommended for novice users.
Online/ Offline printingSupports print from SD card and print via USB OTG using the integrated USB-A port. USB-C interface supports an emulated serial port that allows printing via USB. If you need any help regarding BTT Octopus V 1.1 control board, please feel free to contact us via message. We have professional tech supports online to take care of your problems.
