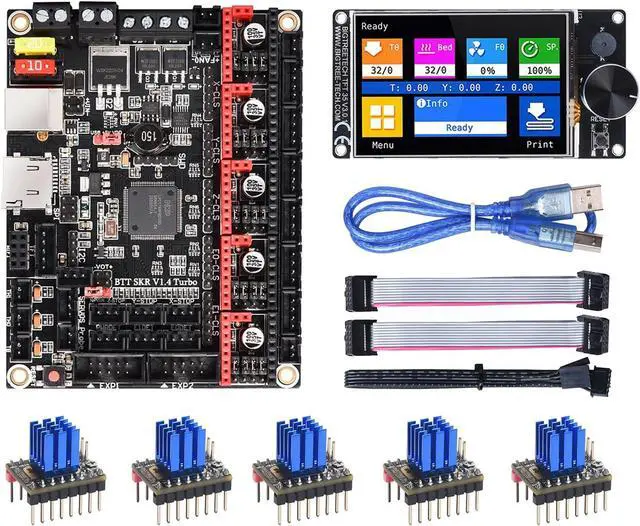

BIGTREETECH SKR V1.4 Turbo Control Board+TFT35 V3.0.1 Touch Screen Display+5Pcs TMC2209 V1.3 Stepper Motor Driver Support Klipper Marlin for Ender 3/V2 CR10 Voron FDM 3D Printer DIY Motherboard

Main Control ChipBigtreetech SKR V 1.4 turbo control board using 32-bit main frequency 120MHz ARM level Cortex-M3 series LPC1769 main control chip, the performance has been greatly improved, equipped with highly moduld and open source firmware Marlin 2.0, which is convenient for users to DIY and secondary development. and support Klipper firmware

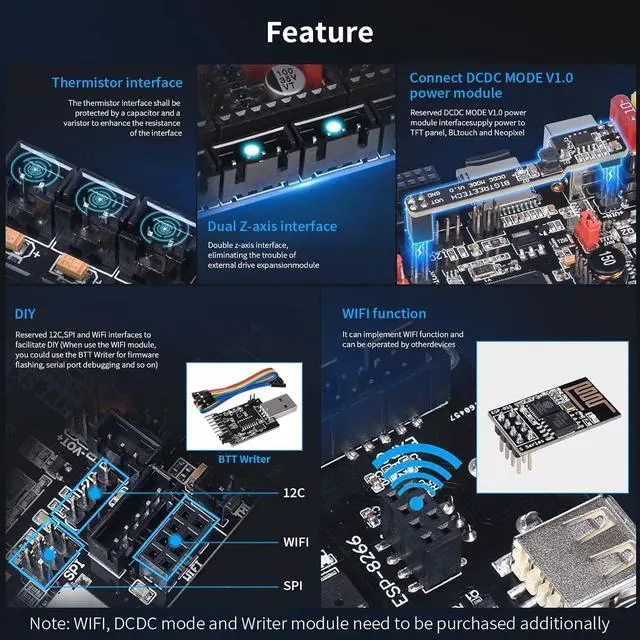

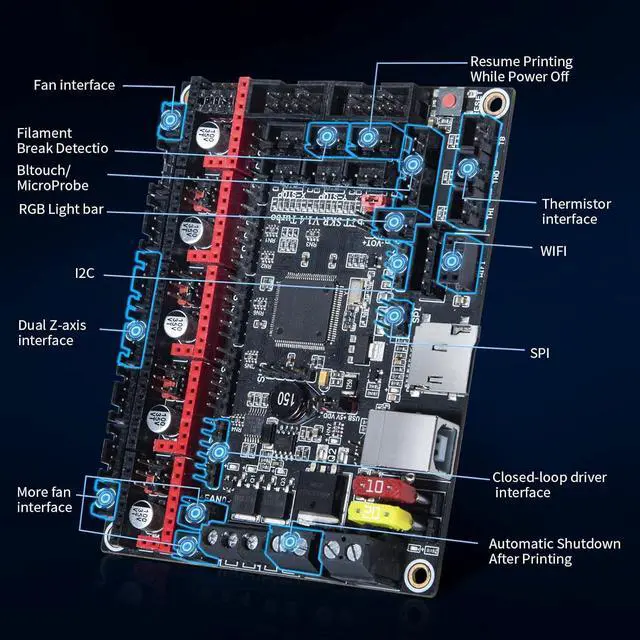

Multi function expansion interface BTT SKR V 1.4 turbo mainboard support Resume Printing While Power Off, Smart Filament Break Detection, Automatic Shutdown After Printing, BLtouch/MicroProbe V2 Auto leveling, RGB light. Double z-axis interface, eliminating the trouble of external drive expansion module.

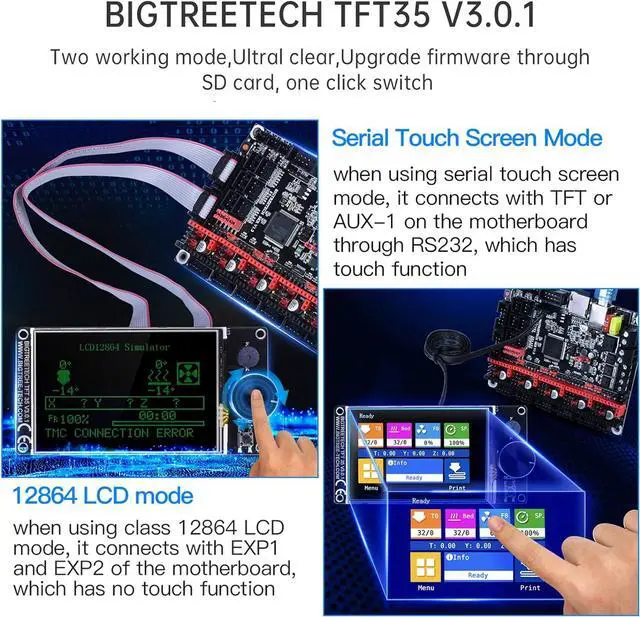

Dual Working Modes display BIGTREETECH TFT35 V 3.0. 1 touch screen display adopt ARM Cortex-M3 series GD32F205VCT6 master controller chip with 32-bit CPU main frequency of 120 MHz, with options for either LCD12864 Encoder Mode, or the modern Colour Touch Screen Style. supports both SD card and USB stick printing.

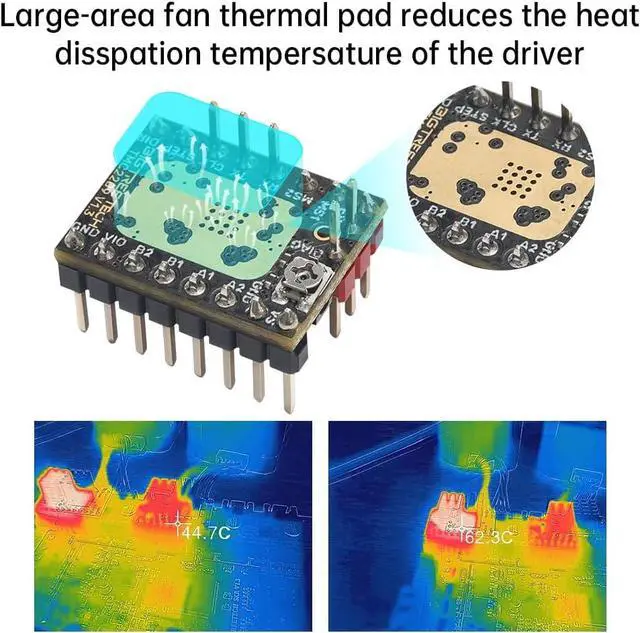

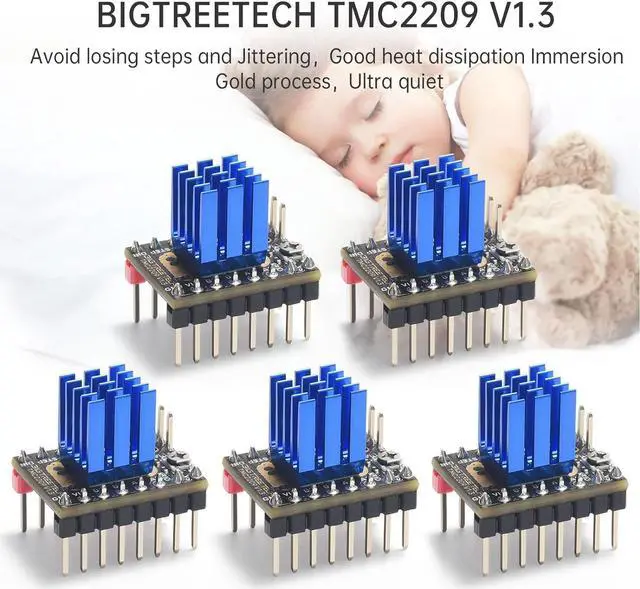

Ultra Silent Driver5pcs TMC2209 V 1.3 stepper motor driver adopts StealthChop2 allows for no-noise, high-precision chopper algorithm for inaudible motion and inaudible standstill of the motor, making it super quiet during printing. And the flexible microPlyer interpolation unit provides up to 256 subdivisions, which can achieve perfect sinusoidal control even in systems with limited pulse frequency. continuous current of up to 2.0A (with peaks of 2.8A ). Voltage ranges from 5.5V to the maximun.
100% Technical Supports: If you have any problems about SKR V 1.4 Turbo +TFT35 V 3.0. 1+TMC2209 driver kit, please feel free to contact us on. Our technical supports team will respon to you within 24 hours. 1-Year Warranty is 100% guaranteed!
