    5015 Blower 24V, 50mm x 15mm Part Cooling Radial Fan 2Pin High Speed Brushless DC Turbine Turbo Hydraulic Bearing for Ender 3 3D Printer Humidifier, 2 Pack

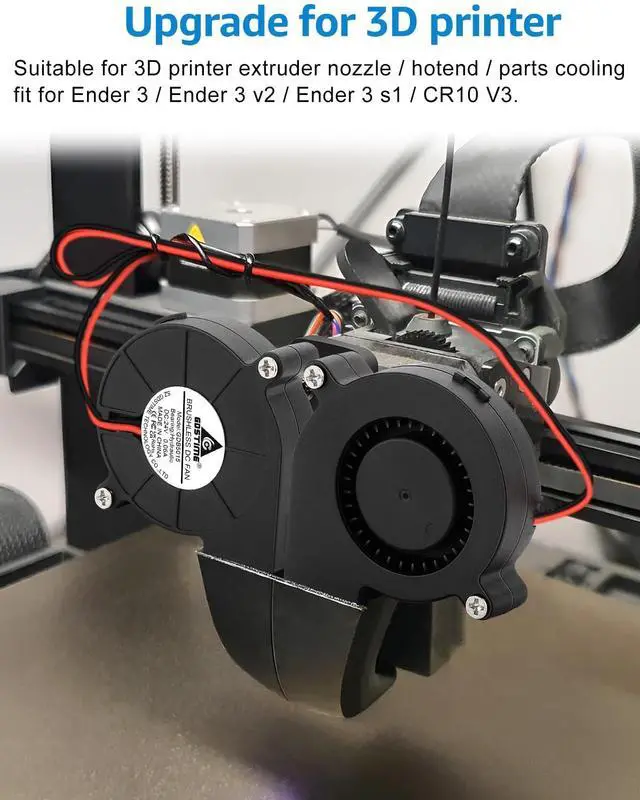

    • Replacement 5015 Blower Fan 24V for 3D Printer: Upgrade the extruder nozzle and parts cooling fans on 3d printer (fit for Ender 3/ender 3v2/ender 3 s1/CR10 V3); Provides efficient cooling for 3D printing by directing concentrated airflow to the print layers, effectively reducing overheating problems

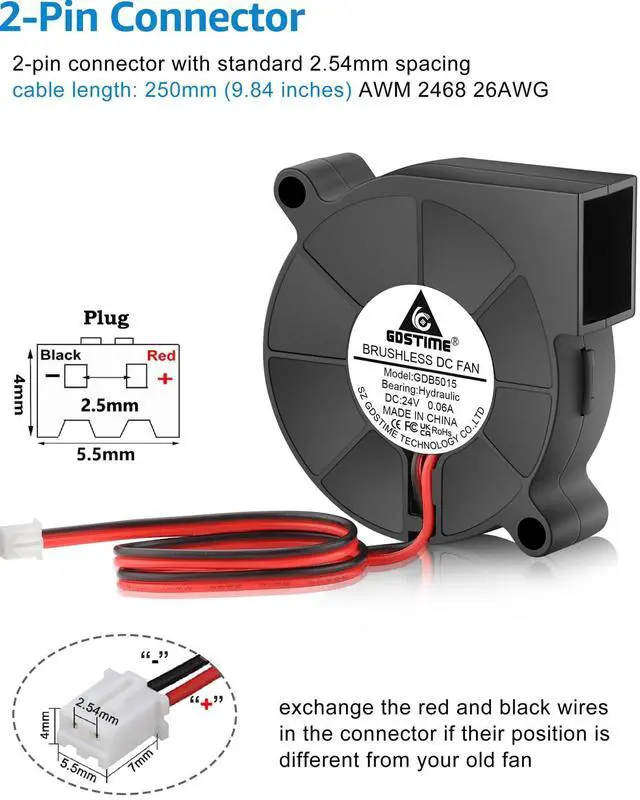

    • 2-Pin Connector: 2-wire terminated with XH2.54-2Pin connector for power supply; make sure positive (+) and negative (-) poles are in right place and match up to your 3d printer parts (Red wire : positve, Black: negative); wire length: 10 inches

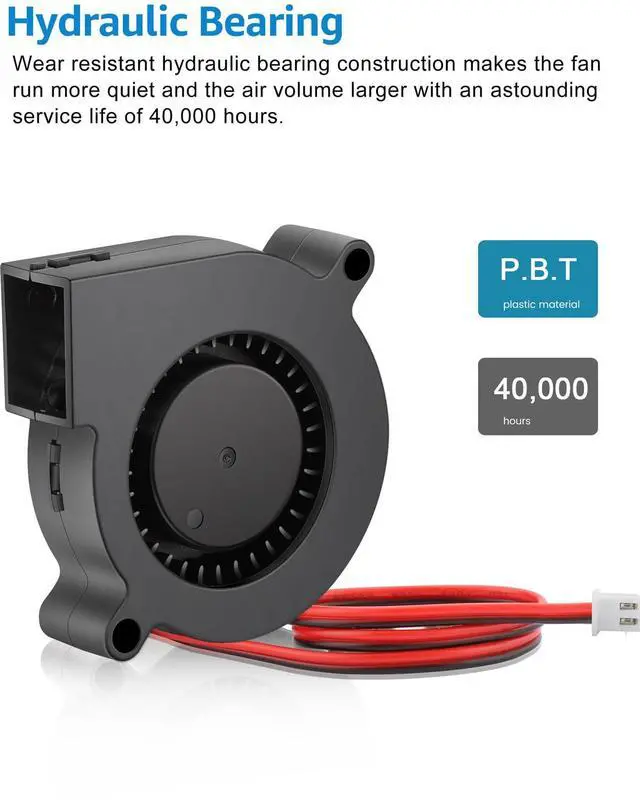

    • High Speed 5015 Blower Fan: Made of PBT plastic materials that can withstand continuous use, ensuring durability and a long lifespan. Its hydraulic bearing provides stable, continuous cooling; operating lifetime up to 40,000 hours
    • 5015 Fan 24V Specs: Size: 50 x 50 x 15 mm (2 x 2 x 0.59 inches) | Hole to Hole Distance: 60 mm (2.36 inches) | Rated Voltage: 24 Volt | Rated Current: 0.06 A | Power: 1.5 W | Speed: 4500 RPM | Noise: 36.7 dBA | Airflow: 3.34 CFM | Static Pressure: 0.41 In H2O

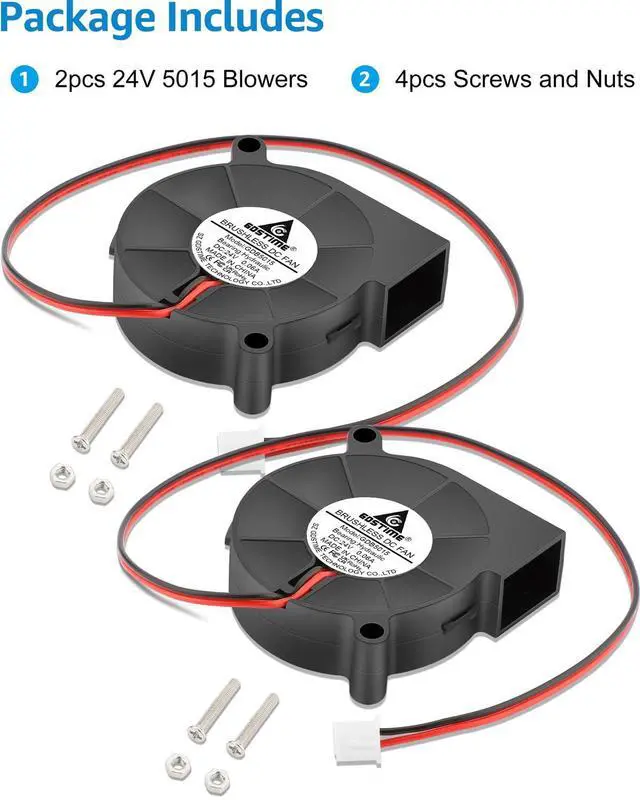

    • Easy to Install: Includes 2 pcs 24v 50x15mm blower fan 2pin, 4 pcs screws and nuts; fits perfectly in tight spaces despite its small size; 5015 radial fan can be used in 3d printers, humidifiers, mini projectors, purifiers, VCRs, switching power supplies, small household appliances, etc.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    5015 blower 24v Description

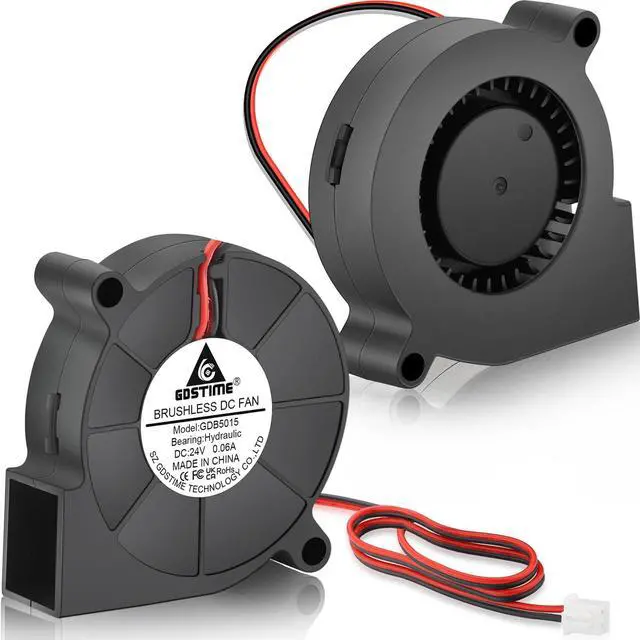

    This is a 3D printer cooling blowing fan, which is made of PBT plastic material. It is excellent for cooling heatsinks on hot ends, prints, or other cooling needs, bearing is high precision, long life and low noise. Containing long life hydraulic bearings, the fans can be run continuously for 40,000 hours. 50mm blower fan 24v which perfect for ender 3 fan upgrade. Fit for Ender-3 / Ender-3 Pro / Ender-3S / Ender-3 v2 / CR 10 V3 (Installation Position for Nozzle); Whether you want to replace a older broken fan, improve overhang and bridging distances, or improve the airflow towards your parts, this 5015 blower fan upgrade is something that can get you there.

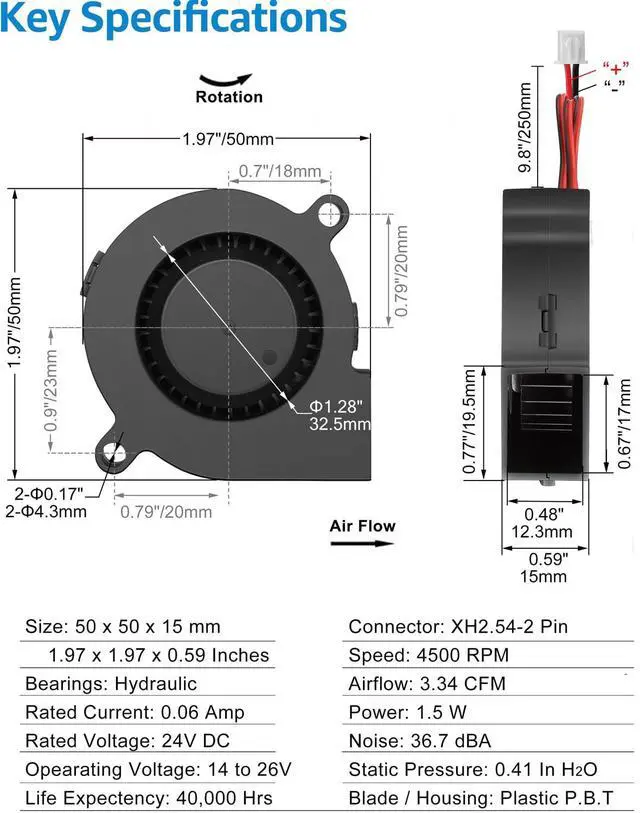

    Porduct Dimension
    Total Dimensions: 1.97 x 1.97 x 0.59 inches (50 x 50 x 15 mm )
    Hole to Hole Distance: 2.36 inches (60 mm)
    Screw Hole Size: Ø 0.17 inches (Ø 4.3 mm)
    Cord Length: 10 inches (250 mm)

    Product Performance and Technical Specs
    Total Airflow: 3.34 CFM
    Total Noise: 36.7 dBA
    Fan Speed: 4500 RPM
    Operating Voltage: 14 to 26V DC
    Power: 1.5 W
    Current: 0.06 Amp
    Static Pressure: 0.41 In-H2O
    Operating Temperature: 14 to 167°F
    Fan Bearings: Hydraulic
    Life Expectancy: 40,000 Hours

    Note:
    1.Transition: 1cm=10mm=0.39 in.
    2.Please allow 0-1cm error due to manual measurement. please make sure you do not mind before you ordering.


    Product information

    Product Dimensions 1.97"L x 1.97"W x 0.59"H
    Brand GDSTIME
    Power Connector Type 2-Pin
    Voltage 24 Volts
    Wattage 1.5 watts
    Cooling Method Air
    Compatible Devices Humidifier, Printer
    Noise Level 36.7 Decibels
    Material Plastic
    Maximum Rotational Speed 4500 RPM
    Item model number 2*GDB5015S24N45X25225-US
    Date First Available October 31, 2024
    Manufacturer GDSTIME
