1. FUNCTIONS AND USES: 3D printer cooling fan is used to cool the printing layer during the printing process. It rapidly cools the consumable when extruding the material, so that each layer can solidify and maintain its shape before the follwing layer is deposited

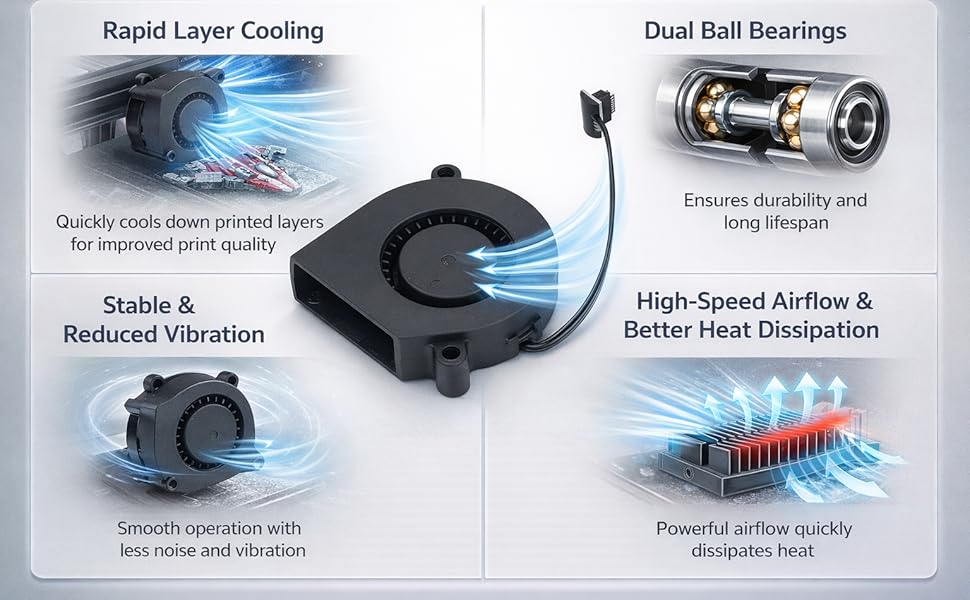

2. GREATER DURABILITY: Cooling fan adopts a double ball bearing structure, which is more long lasting than the ordinary bearing structure of traditional fans and extends the service life of the fan

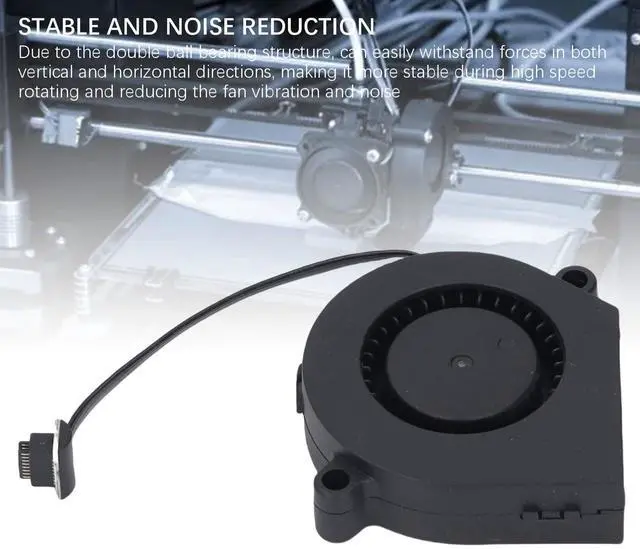

3. STABLE AND NOISE REDUCTION: Due to the double ball bearing structure, can easily withstand forces in both vertical and horizontal directions, making it more stable during high speed rotating and reducing the fan vibration and noise
4. BETTER HEAT DISSIPATION: The fan with a double ball bearing structure has a higher rotating speed, so the heat dissipation effect is better. Fit for P1P P1S

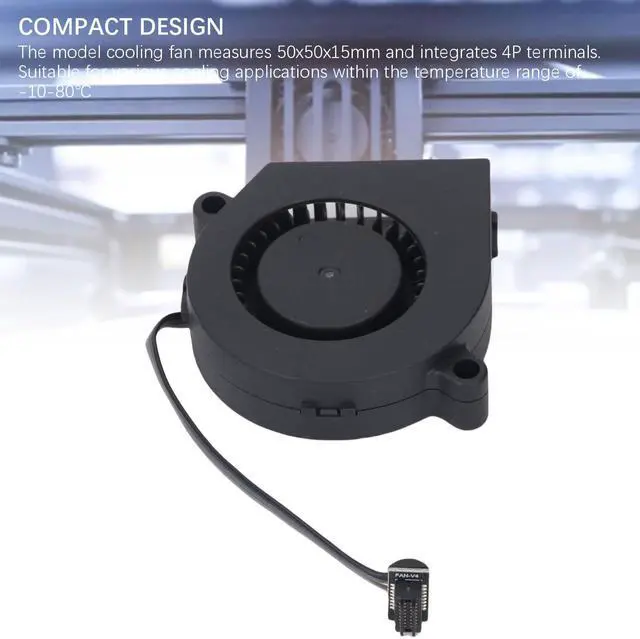

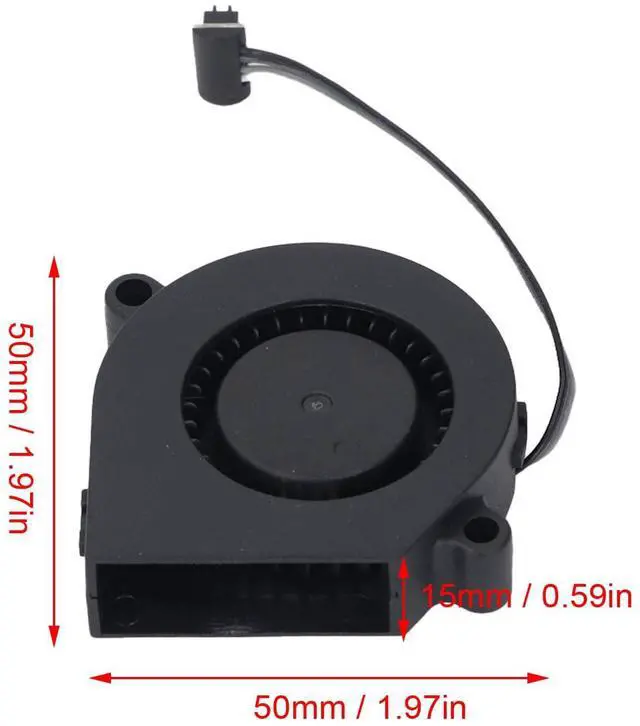

5. COMPACT DESIGN: The model cooling fan measures 50x50x15mm and integrates 4P terminals. Suitable for various cooling applications within the temperature range of -10-80

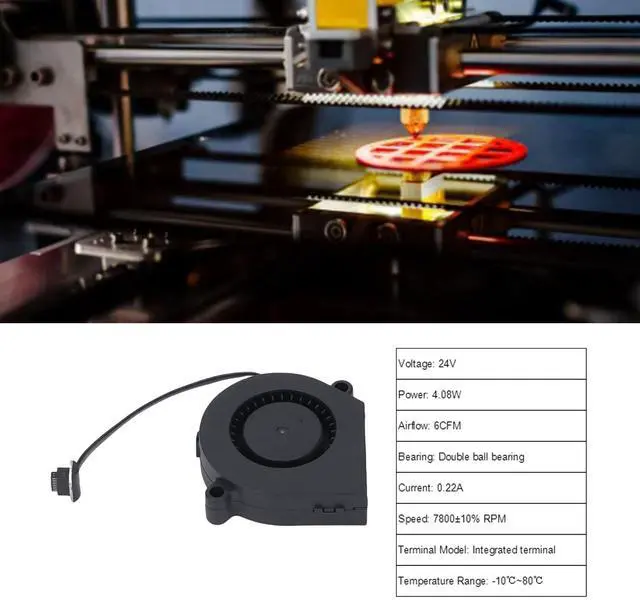

Spec:

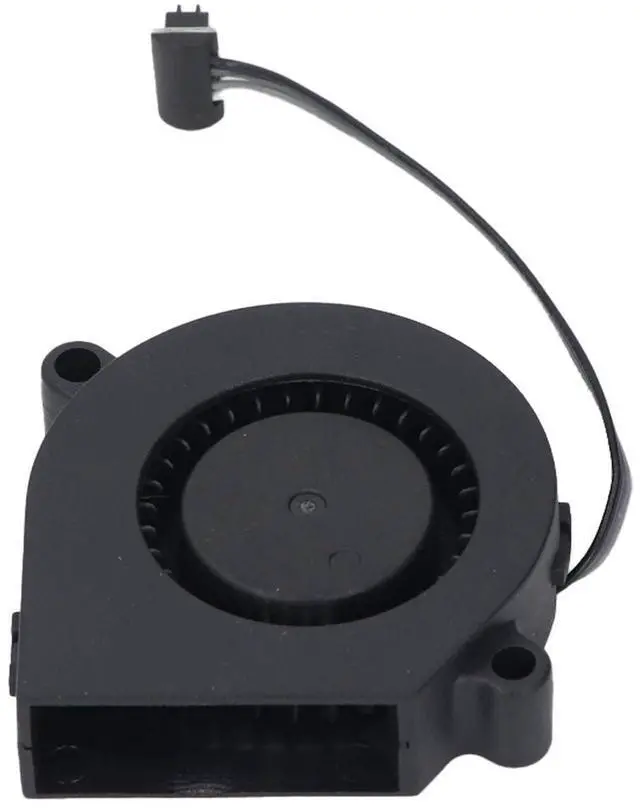

Item Type: 3D Printer Cooling Fan

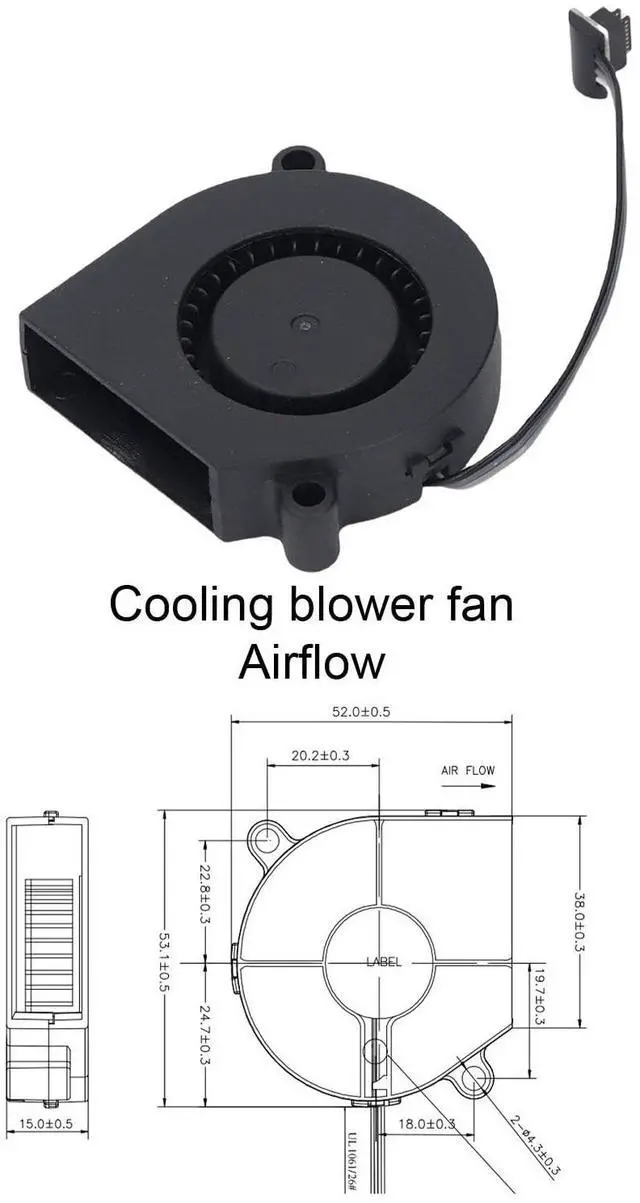

Size: Approx. 50 x 50 x 15mm / 1.97 x 1.97 x 0.59in
Fan Type: Double ball bearing fan
Voltage: 24V
Current: 0.22A
Power: 4.08W
Airflow: 6CFM
Speed: 7800±10% RPM
Temperature Range: -10-80
How to Use:
Directly install and use
Package List:
1 x 3D Printer Cooling Fan
Product information
| Brand | Eujgoov |
| Power Connector Type | 4-Pin |
| Wattage | 4 watts |
| Cooling Method | forced air |
| Compatible Devices | 3D Printer |
| Material | Metal, Plastic |
| Maximum Rotational Speed | 7800 RPM |
| Air Flow Capacity | 6 Cubic Feet Per Minute |
| Manufacturer | Eujgoov |
| Number of Items | 1 |
| Material Type | Metal, Plastic |
| Brand Name | Eujgoov |
| Included Components | No |
